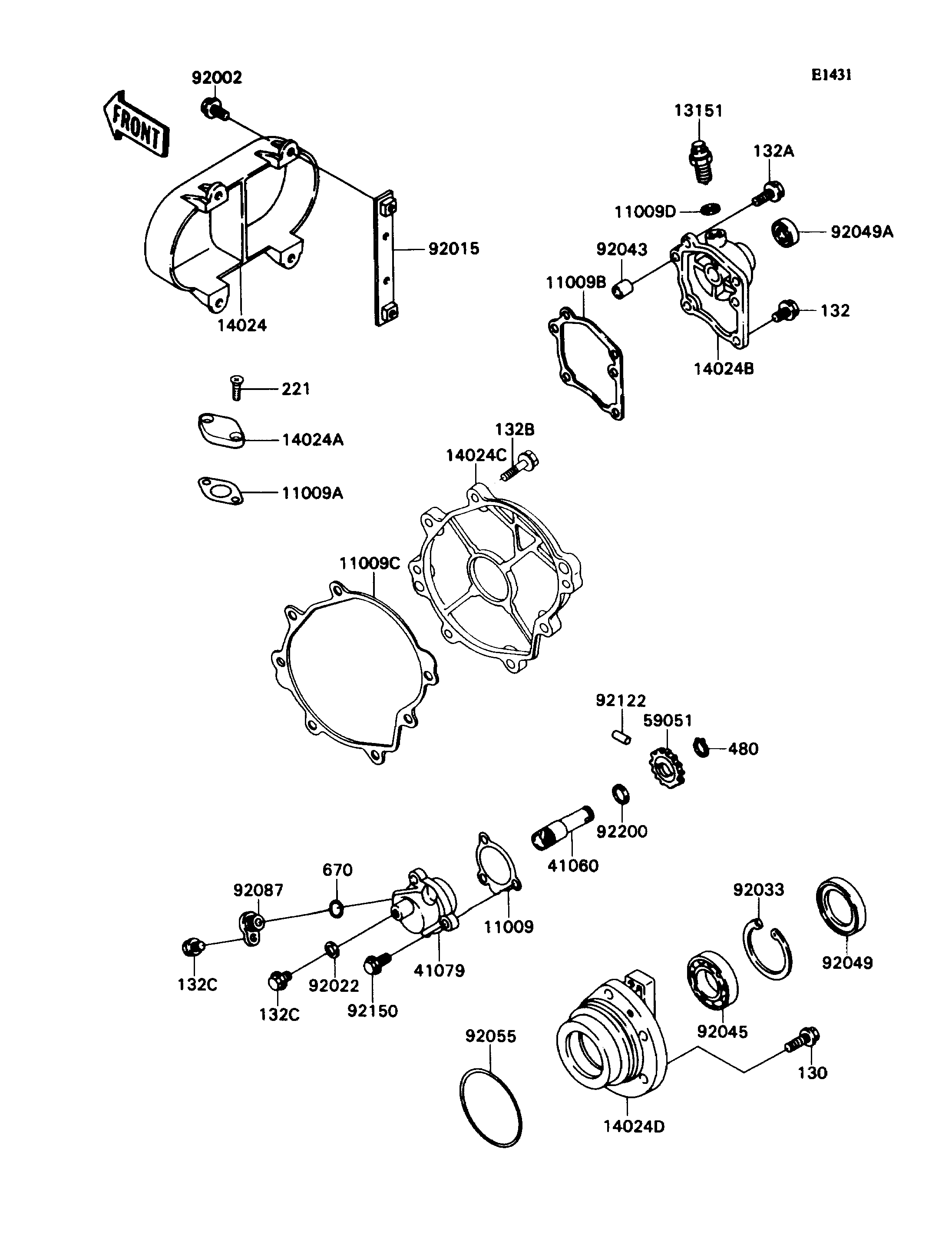

Mule 2030 - Engine Cover

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,METER GEAR CASE 11009 11009-1686 1
GASKET,SHIFTER COVER 11009A 11009-1688 1
GASKET,CHANGE COVER 11009B 11009-1797 1
GASKET 11009C 11009-1798 1
GASKET,10.5X16X1,DRAIN PLUG 11009D 92065-058 1
SWITCH-COMP,NEUTRAL 13151 13151-1069 1
COVER,DUCT 14024 14024-1558 1
COVER,SHIFTER 14024A 14024-1559 1
COVER,CHANGE MECHANISM 14024B 14024-1780 1
COVER 14024C 14024-1781 1
COVER 14024D 14024-1782 1
GEAR-METER SCREW 41060 41060-1136 1
CASE-METER GEAR 41079 41079-1059 1
GEAR-SPUR,13T 59051 59051-1219 1
BOLT,6X16 92002 92002-1570 4
NUT,AIR FILTER 92015 92015-1785 2
WASHER,6.1X12X1 92022 92022-077 1
RING-SNAP,55MM 92033 92033-1274 1
PIN,6.2X8X14 92043 92043-1263 2
BEARING-BALL,6006 92045 92045-1208 1
SEAL-OIL,TC35X55X8 92049 92049-1298 1
SEAL-OIL,TB13225.5 92049A 92051-005 1
RING-O,74.6X2.4 92055 92055-1357 1
BUSHING-METER GEAR 92087 92087-1058 1
ROLLER,3X15.8 92122 92122-1126 1
BOLT,6X20 92150 92150-1010 3
WASHER 92200 92200-1009 1
BOLT-FLANGED 130 130D0825 5
BOLT-FLANGED-SMALL 132 132H0616 1
BOLT-FLANGED-SMALL 132A 132H0620 3
BOLT-FLANGED-SMALL 132B 132H0825 7
BOLT-FLANGED-SMALL,6X10 132C 132J0610 2
SCREW-CSK-CROS,6X18 221 221B0618 2
CIRCLIP-TYPE-C,11MM 480 480J1100 1
O RING,10MM 670 670D1510 1
