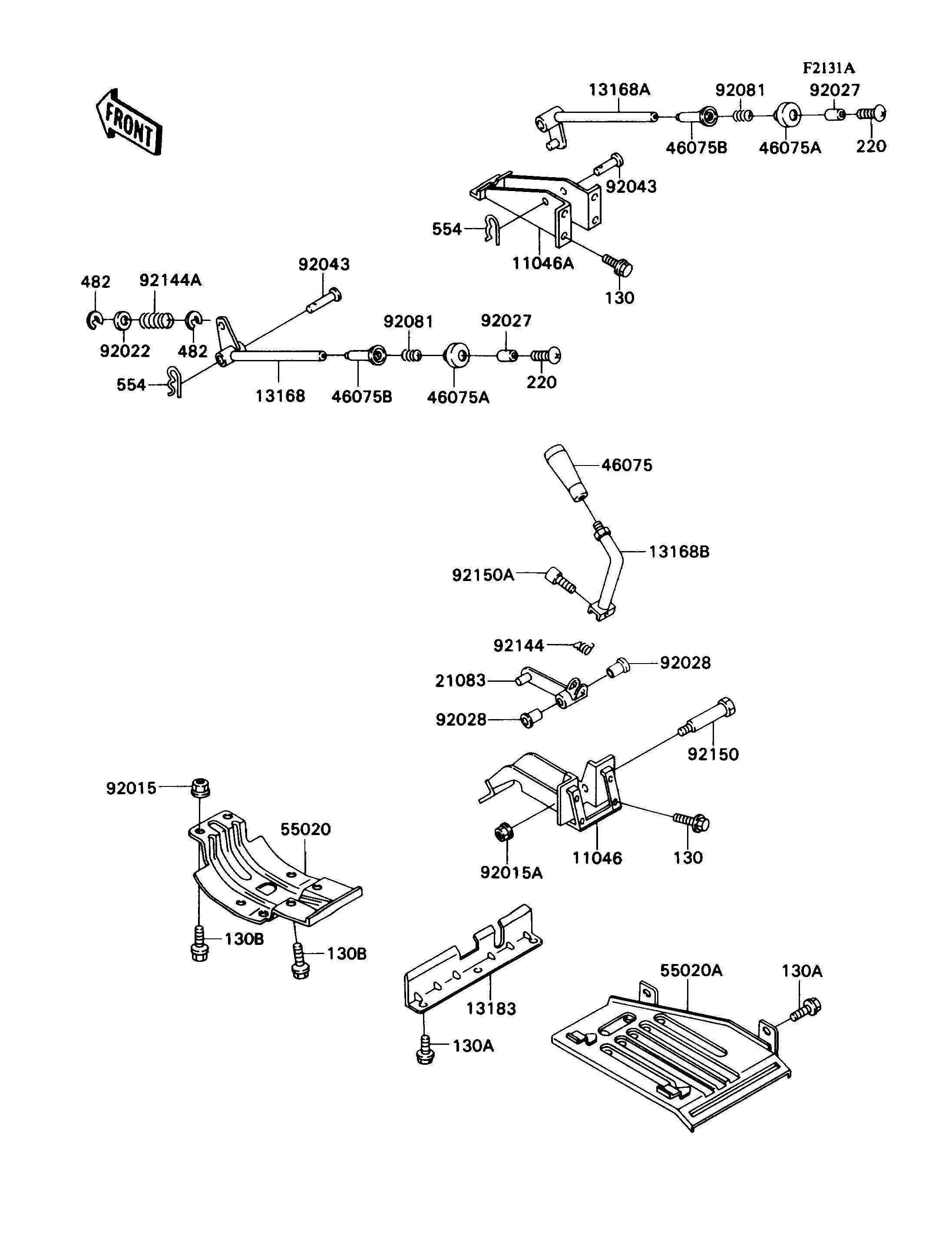

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SHIFT LEVER | 11046 | 11046-1677 | 1 | ||
| BRACKET,HI-LOW RANGE | 11046A | 11046-1751 | 1 | ||
| LEVER,DIFF MODE CONTROL | 13168 | 13168-1428 | 1 | ||
| LEVER,HI-LOW RANGE | 13168A | 13168-1430 | 1 | ||
| LEVER,SHIFT | 13168B | 13168-1440 | 1 | ||
| PLATE,MUD GUARD | 13183 | 13183-1508 | 1 | ||
| ARM,SHIFT LEVER | 21083 | 21083-1085 | 1 | ||
| GRIP,SHIFT LEVER | 46075 | 46075-1075 | 1 | ||
| GRIP,UPP | 46075A | 46075-1085 | 2 | ||
| GRIP,LWR | 46075B | 46075-1086 | 2 | ||
| GUARD,FRONT DIFF CASE | 55020 | 55020-1343 | 1 | ||
| GUARD,MUD | 55020A | 55020-1362 | 1 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1366 | 2 | ||
| NUT,LOCK,FLANGED,6MM | 92015A | 92015-1675 | 2 | ||
| WASHER,10.5X26X2.3 | 92022 | 92022-044 | 1 | ||
| COLLAR | 92027 | 92027-1987 | 2 | ||
| BUSHING | 92028 | 92028-1507 | 2 | ||
| PIN,10X34 | 92043 | 92043-1069 | 2 | ||
| SPRING | 92081 | 92081-1714 | 2 | ||
| SPRING | 92144 | 92144-1175 | 1 | ||
| SPRING | 92144A | 92144-1510 | 1 | ||
| BOLT | 92150 | 92002-1984 | 1 | ||
| BOLT,SOCKET,6X35 | 92150A | 92150-1393 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130C0612 | 8 | ||
| BOLT-FLANGED,8X14 | 130A | 130G0814 | 5 | ||
| BOLT-FLANGED,10X16 | 130B | 130G1016 | 4 | ||
| SCREW-PAN-CROS | 220 | 220C0514 | 2 | ||
| CIRCLIP-TYPE-E,8MM | 482 | 482L8000 | 2 | ||
| PIN-SNAP,10MM | 554 | 554A1000 | 2 |
| BRACKET,SHIFT LEVER | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HI-LOW RANGE | |
| REF # | 11046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,DIFF MODE CONTROL | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,HI-LOW RANGE | |
| REF # | 13168A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,SHIFT | |
| REF # | 13168B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,MUD GUARD | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM,SHIFT LEVER | |
| REF # | 21083 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,SHIFT LEVER | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,UPP | |
| REF # | 46075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GRIP,LWR | |
| REF # | 46075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUARD,FRONT DIFF CASE | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,MUD | |
| REF # | 55020A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X2.3 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,10X34 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X35 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X14 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X16 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-E,8MM | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-SNAP,10MM | |
| REF # | 554 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
