Parts Diagrams |

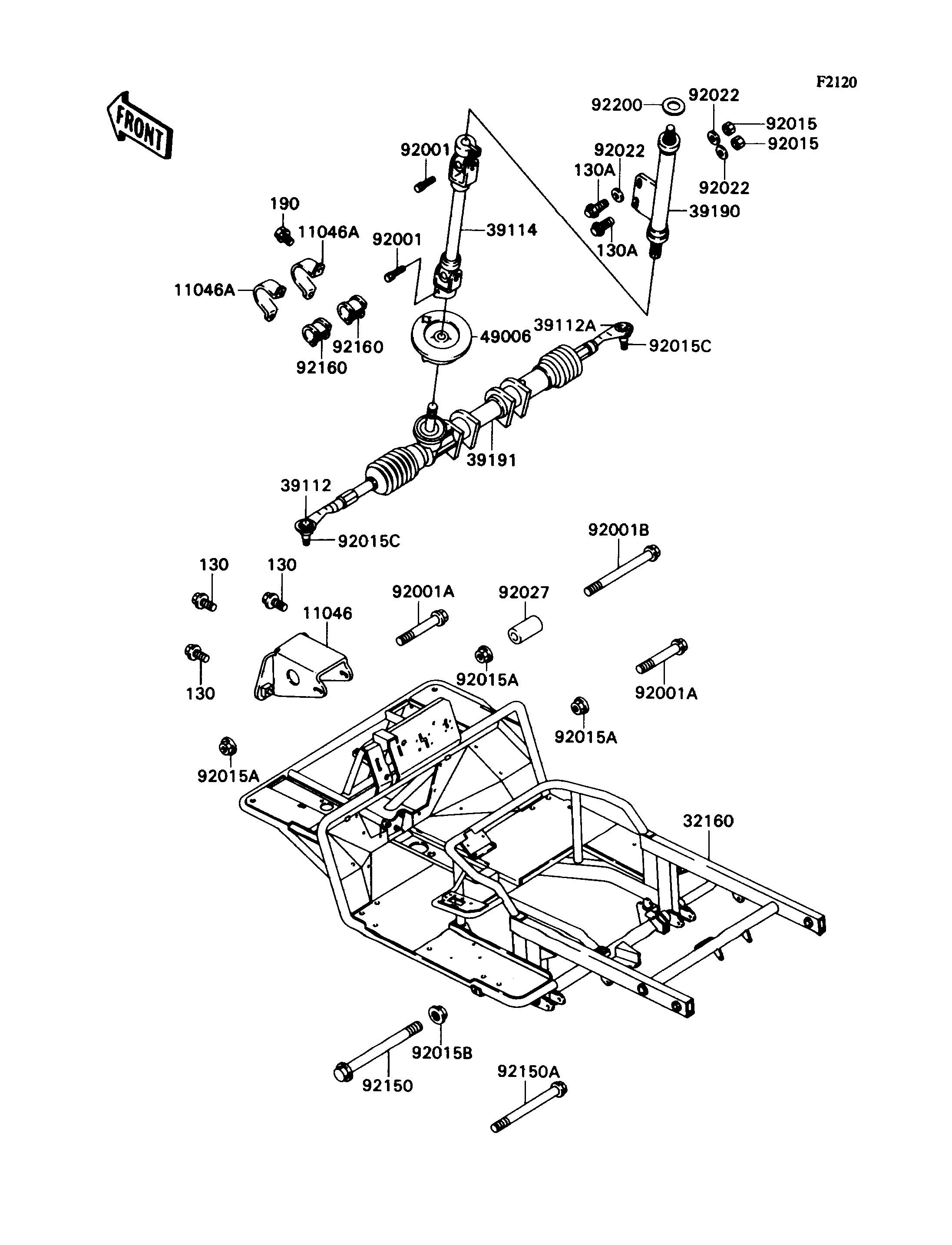

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,FRONT DIFF | 11046 | 11046-1684 | 1 | ||
| BRACKET,STEERING GEAR | 11046A | 11046-1858 | 2 | ||
| FRAME-COMP | 32160 | 32160-1078 | 1 | ||
| RODEND-TIE,STEERING GEAR,LH | 39112 | 39112-1068 | 1 | ||
| RODEND-TIE,STEERING GEAR,RH | 39112A | 39112-1069 | 1 | ||
| SHAFT-COMP-STRG | 39114 | 39114-1067 | 1 | ||
| SHAFT-ASSY-STEERING | 39190 | 39190-1003 | 1 | ||
| GEAR-ASSY-STEERING | 39191 | 39191-1002 | 1 | ||
| BOOT,STEERING SHAFT,LWR | 49006 | 49006-1255 | 1 | ||
| BOLT,8X30 | 92001 | 92001-1379 | 2 | ||
| BOLT,FLANGED,10X70 | 92001A | 92001-1600 | 2 | ||
| BOLT,FLANGED,10X115 | 92001B | 92001-1603 | 1 | ||
| NUT,LOCK,10MM,BLACK | 92015 | 92015-1189 | 2 | ||
| NUT,LOCK,10MM | 92015A | 92015-1597 | 3 | ||
| NUT | 92015B | 92015-1706 | 1 | ||
| NUT | 92015C | 92015-1864 | 2 | ||
| WASHER,10.5X26X2.3,BLACK | 92022 | 92022-1396 | 3 | ||
| COLLAR,11X20X39 | 92027 | 92027-1518 | 1 | ||
| BOLT,FLANGED,12X135 | 92150 | 92002-1507 | 1 | ||
| BOLT,FLANGED,12X110 | 92150A | 92150-1088 | 1 | ||
| DAMPER,STEERING GEAR | 92160 | 92160-1084 | 2 | ||
| WASHER,15X45X0.6 | 92200 | 92200-1130 | 1 | ||
| BOLT-FLANGED,10X20 | 130 | 130G1020 | 3 | ||
| BOLT-FLANGED,10X30 | 130A | 130J1030 | 2 | ||
| BOLT-UPSET-WS | 190 | 190H1025 | 4 |
| BRACKET,FRONT DIFF | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,STEERING GEAR | |
| REF # | 11046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RODEND-TIE,STEERING GEAR,LH | |
| REF # | 39112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RODEND-TIE,STEERING GEAR,RH | |
| REF # | 39112A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-COMP-STRG | |
| REF # | 39114 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-ASSY-STEERING | |
| REF # | 39190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-ASSY-STEERING | |
| REF # | 39191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,STEERING SHAFT,LWR | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X30 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X70 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X115 | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X2.3,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR,11X20X39 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X135 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X110 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,STEERING GEAR | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,15X45X0.6 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X30 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS | |
| REF # | 190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
