Parts Diagrams |

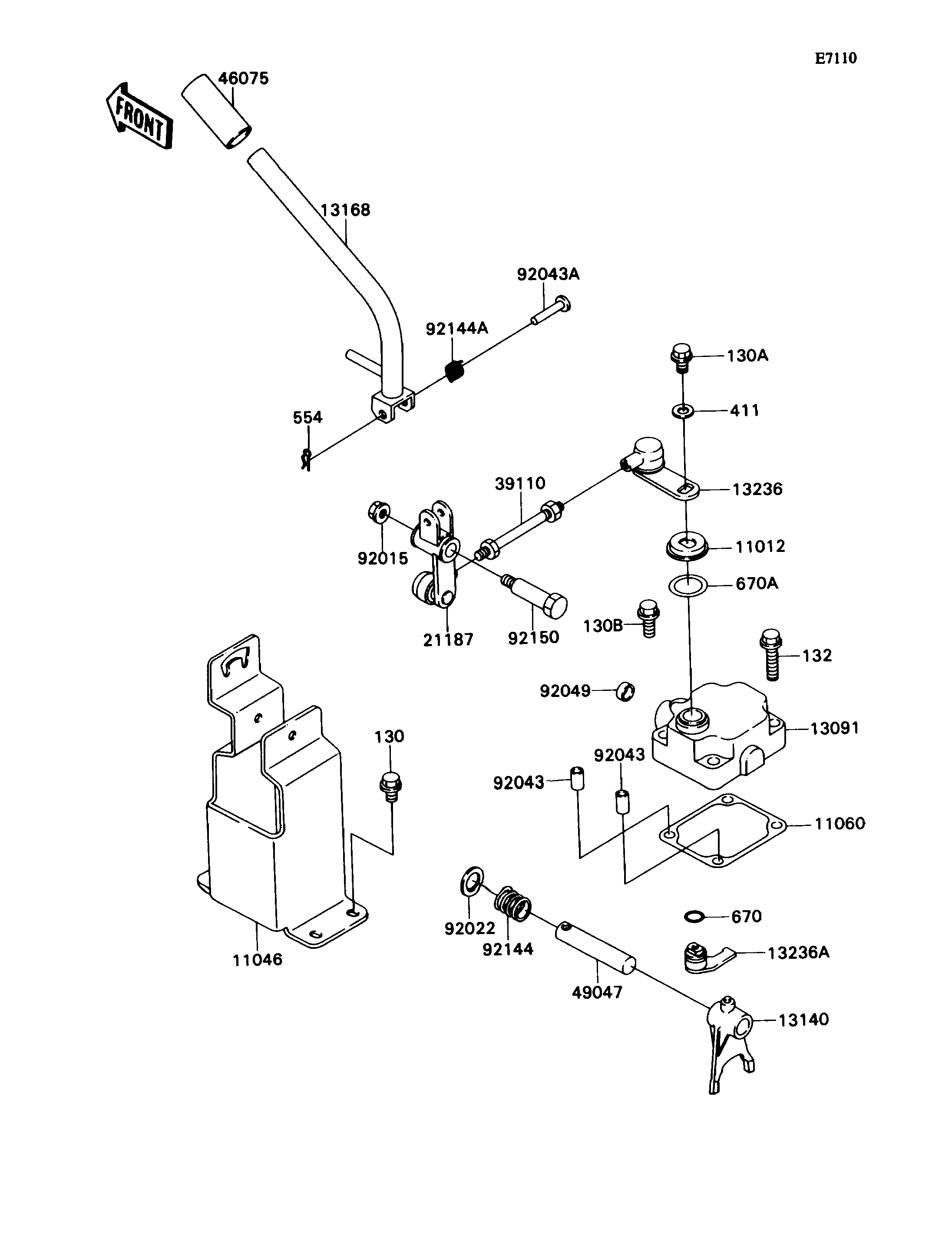

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1652 | 1 | ||
| BRACKET | 11046 | 11046-1659 | 1 | ||
| GASKET,CONTROL LEVER | 11060 | 11060-1233 | 1 | ||
| HOLDER | 13091 | 13091-1548 | 1 | ||
| FORK-SHIFT | 13140 | 13140-1182 | 1 | ||
| LEVER | 13168 | 13168-1424 | 1 | ||
| LEVER-COMP | 13236 | 13236-1175 | 1 | ||
| LEVER-COMP | 13236A | 13236-1208 | 1 | ||
| ARM-ASSY,ROD END-TIE | 21187 | 21187-1075 | 1 | ||
| ROD-ASSY-TIE,L=90,BLACK | 39110 | 39110-1008 | 1 | ||
| GRIP,PARKING BRAKE LEVER | 46075 | 46075-1062 | 1 | ||
| ROD-SHIFT | 49047 | 49047-1078 | 1 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 1 | ||
| WASHER,12.3X20X0.5 | 92022 | 92022-269 | 1 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 2 | ||
| PIN,5X27.5 | 92043A | 92043-1434 | 1 | ||
| SEAL-OIL,RCA124 | 92049 | 92049-1311 | 1 | ||
| SPRING,REAR STEP | 92144 | 92081-1957 | 1 | ||
| SPRING,LEVER | 92144A | 92144-1428 | 1 | ||
| BOLT | 92150 | 92002-1984 | 1 | ||
| BOLT-FLANGED,6X14 | 130 | 130D0614 | 4 | ||
| BOLT-FLANGED | 130A | 130J0612 | 1 | ||
| BOLT-FLANGED | 130B | 130J0620 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0635 | 4 | ||
| WASHER-PLAIN,6MM,BLACK | 411 | 411F0600 | 1 | ||
| PIN-SNAP | 554 | 554A0500 | 1 | ||
| O RING,10MM | 670 | 670B2010 | 1 | ||
| O RING,18MM | 670A | 670B2018 | 1 |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CONTROL LEVER | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FORK-SHIFT | |
| REF # | 13140 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP | |
| REF # | 13236A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-ASSY,ROD END-TIE | |
| REF # | 21187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-ASSY-TIE,L=90,BLACK | |
| REF # | 39110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,PARKING BRAKE LEVER | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-SHIFT | |
| REF # | 49047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,12.3X20X0.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,6.2X8X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,5X27.5 | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,RCA124 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,REAR STEP | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,LEVER | |
| REF # | 92144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,6MM,BLACK | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-SNAP | |
| REF # | 554 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,10MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,18MM | |
| REF # | 670A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
