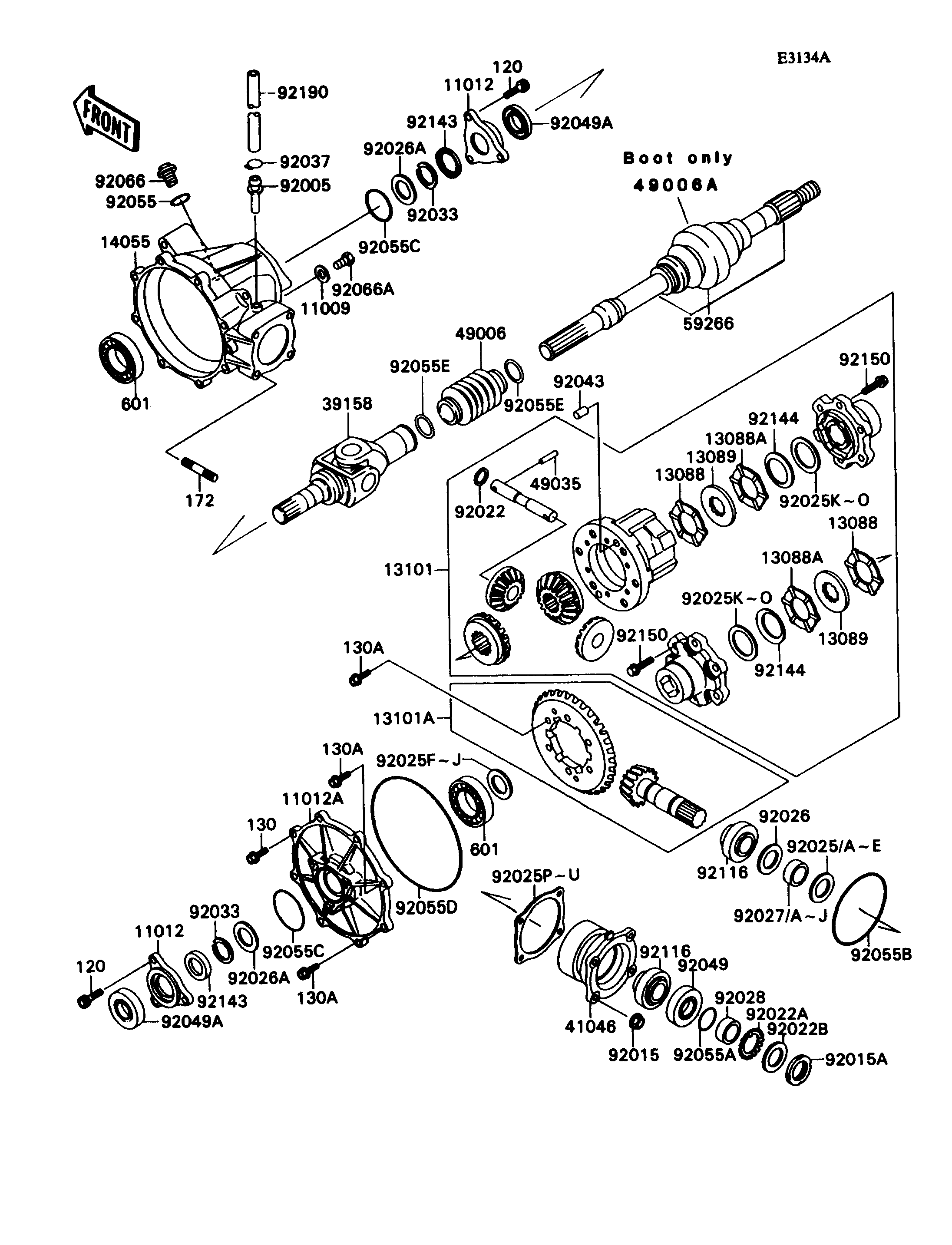

Mule 2010 - Drive Shaft(Front)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X16X1,DRAIN PLUG 11009 92065-058 1
CAP 11012 11012-1648 2
CAP,GEAR CASE 11012A 11012-1649 1
PLATE-FRICTION 13088 13088-1075 2
PLATE-FRICTION 13088A 13088-1078 2
PLATE-CLUTCH 13089 13089-1083 2
GEAR-ASSY 13101 13101-1135 1
GEAR-ASSY,BEVEL 13101A 13101-5071 1
CASE-GEAR,FR 14055 14055-1088 1
SHAFT-ASSY-DRIVE,FR 39158 39158-1073 2
HOUSING-BEARING 41046 41046-1089 1
BOOT,DRIVE SHAFT 49006 49006-1257 2
BOOT,DRIVE SHAFT 49006A 49006-1272 2
PIN-SPRING 49035 49035-1056 2
JOINT-BALL,DRIVE SHAFT 59266 59266-1086 2
FITTING,BREATHER 92005 92005-1127 1
NUT,8MM 92015 92015-1402 4
NUT,25MM 92015A 92015-1768 1
WASHER 92022 92022-1941 2
WASHER,TOOTHED 92022A 92022-1990 1
WASHER,25.3X32X0.5 92022B 92022-225 1
SHIM,25.2X29.8X1.70 92025 92025-1072 AR
SHIM,25.2X29.8X1.72 92025A 92025-1073 AR
SHIM,25.2X29.8X1.74 92025B 92025-1074 AR
SHIM,25.2X29.8X1.76 92025C 92025-1075 AR
SHIM,25.2X29.8X1.78 92025D 92025-1076 AR
SHIM,25.2X29.8X1.80 92025E 92025-1077 AR
SHIM,35.3X46X1.00 92025F 92025-1849 AR
SHIM,35.3X46X0.10 92025G 92025-1850 AR
SHIM,35.3X46X0.15 92025H 92025-1851 AR
SHIM,35.3X46X0.50 92025I 92025-1856 AR
SHIM,35.3X46X0.80 92025J 92025-1857 AR
SHIM,32X40X1.0 92025K 92025-1908 AR
SHIM,32X40X1.2 92025L 92025-1909 AR
SHIM,32X40X1.4 92025M 92025-1910 AR
SHIM,32X40X1.6 92025N 92025-1911 AR
SHIM,32X40X1.8 92025O 92025-1912 AR
SHIM,T=0.10 92025P 92025-1919 AR
SHIM,T=0.15 92025Q 92025-1920 AR
SHIM,T=0.50 92025R 92025-1921 AR
SHIM,T=0.80 92025S 92025-1922 AR
SHIM,T=1.00 92025T 92025-1923 AR
SHIM,T=1.20 92025U 92025-1924 AR
SPACER 92026 92026-1337 1
SPACER,29X40X1.0 92026A 92026-1338 2
COLLAR,25.2X29.8X10.2 92027 92027-1401 AR
COLLAR,25.2X29.8X10.3 92027A 92027-1402 AR
COLLAR,25.2X29.8X10.4 92027B 92027-1403 AR
COLLAR,25.2X29.8X10.5 92027C 92027-1404 AR
COLLAR,25.2X29.8X10.6 92027D 92027-1405 AR
COLLAR,25.2X29.8X10.7 92027E 92027-1406 AR
COLLAR,25.2X29.8X10.8 92027F 92027-1407 AR
COLLAR,25.2X29.8X10.9 92027G 92027-1408 AR
COLLAR,25.2X29.8X11.0 92027H 92027-1409 AR
COLLAR,25.2X29.8X11.1 92027I 92027-1410 AR
COLLAR,25.2X29.8X11.2 92027J 92027-1411 AR
BUSHING 92028 92028-1542 1
RING-SNAP 92033 92033-1249 2
CLAMP,TUBE 92037 92037-147 1
PIN,8X18 92043 92043-1400 2
SEAL-OIL,TC35X55X8 92049 92049-1298 1
SEAL-OIL,TC30487 92049A 92049-1309 2
RING-O,25.7X2.4 92055 92055-1136 1
RING-O,24.7MM 92055A 92055-1160 1
RING-O,65.2X2.4 92055B 92055-1408 1
RING-O,46X2.5 92055C 92055-1409 2
RING-O,154.1X2.5 92055D 92055-1410 1
RING-O,19.5X3.0 92055E 92055-1451 4
PLUG 92066 92066-1303 1
PLUG,DRAIN,10X12 92066A 92067-001 1
BEARING-ROLLER,4T30205 92116 92116-1003 2
COLLAR 92143 92143-1221 2
SPRING 92144 92144-1275 2
BOLT 92150 92150-1109 12
TUBE,4.7X9.5X600 92190 92190-1044 1
BOLT-SOCKET,6X16 120 120P0616 6
BOLT-FLANGED,8X30 130 130P0830 6
BOLT-FLANGED 130A 130P1035 8
BOLT-STUD,8X22 172 172G0822 4
BEARING-BALL 601 601B6007 2
