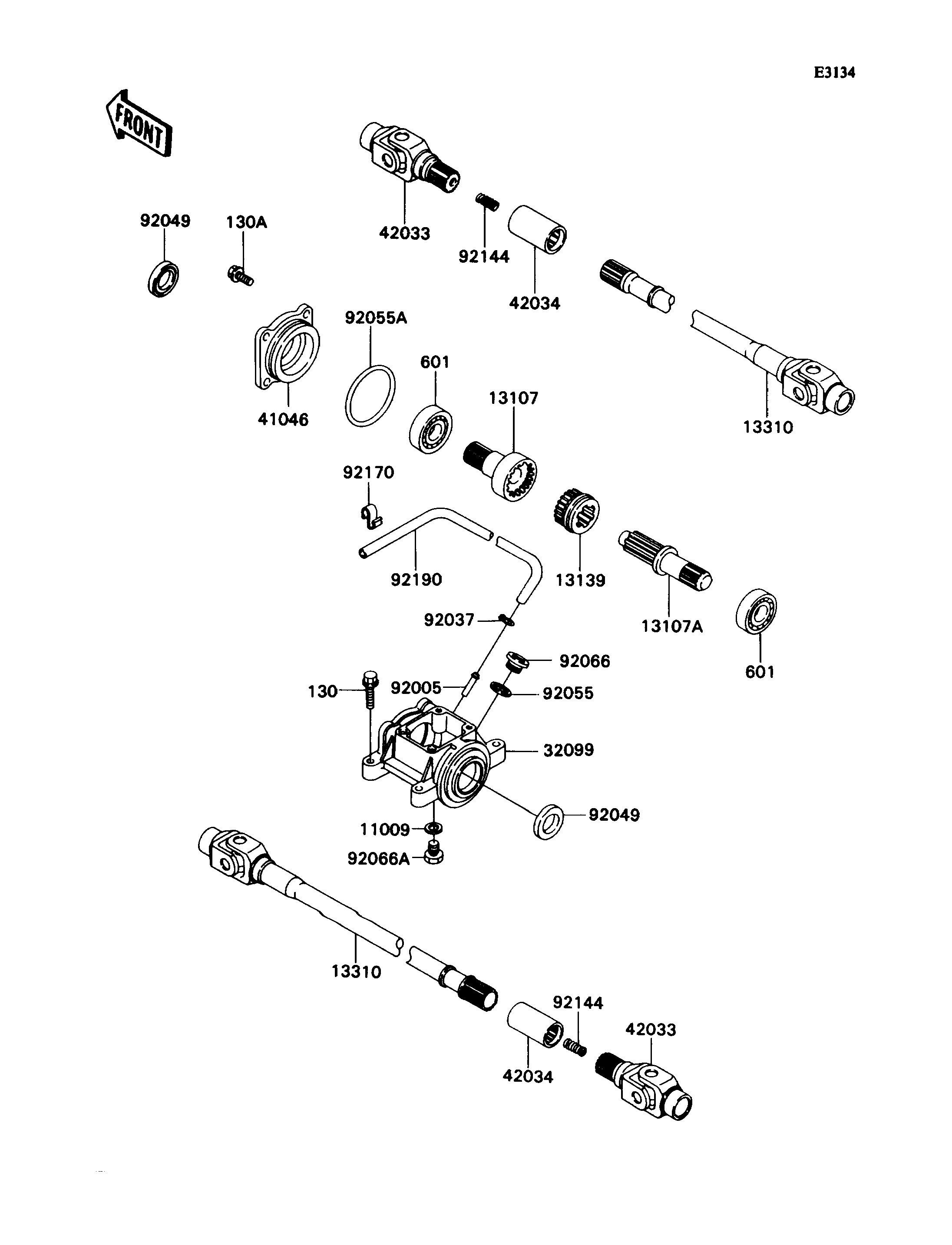

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,10.5X16X1,DRAIN PLUG | 11009 | 92065-058 | 1 | ||
| SHAFT,2WD/4WD | 13107 | 13107-1255 | 1 | ||
| SHAFT,2WD/4WD | 13107A | 13107-1256 | 1 | ||
| SHIFTER,2WD/4WD | 13139 | 13139-1061 | 1 | ||
| SHAFT-ASSY | 13310 | 13310-1002 | 2 | ||
| CASE,2WD/4WD | 32099 | 32099-1122 | 1 | ||
| HOUSING-BEARING | 41046 | 41046-1093 | 1 | ||
| COUPLING-ASSY | 42033 | 42033-1130 | 2 | ||
| COUPLING | 42034 | 42034-1103 | 2 | ||
| FITTING | 92005 | 92005-1142 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 1 | ||
| SEAL-OIL | 92049 | 92049-1047 | 2 | ||
| RING-O | 92055 | 92055-1146 | 1 | ||
| RING-O,63MM | 92055A | 92055-1294 | 1 | ||
| PLUG,COVER | 92066 | 92066-1163 | 1 | ||
| PLUG,DRAIN,10X12 | 92066A | 92067-001 | 1 | ||
| SPRING | 92144 | 92144-1276 | 2 | ||
| CLAMP | 92170 | 92170-1105 | 1 | ||
| TUBE,4.7X9.5X600 | 92190 | 92190-1044 | 1 | ||
| BOLT-FLANGED,8X35 | 130 | 130D0835 | 4 | ||
| BOLT-FLANGED,8X20 | 130A | 130H0820 | 4 | ||
| BEARING-BALL,#6205C3 | 601 | 601B6205 | 2 |
| GASKET,10.5X16X1,DRAIN PLUG | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,2WD/4WD | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,2WD/4WD | |
| REF # | 13107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIFTER,2WD/4WD | |
| REF # | 13139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-ASSY | |
| REF # | 13310 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE,2WD/4WD | |
| REF # | 32099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-BEARING | |
| REF # | 41046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING-ASSY | |
| REF # | 42033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COUPLING | |
| REF # | 42034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,63MM | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,COVER | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,DRAIN,10X12 | |
| REF # | 92066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,4.7X9.5X600 | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X35 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X20 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6205C3 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
