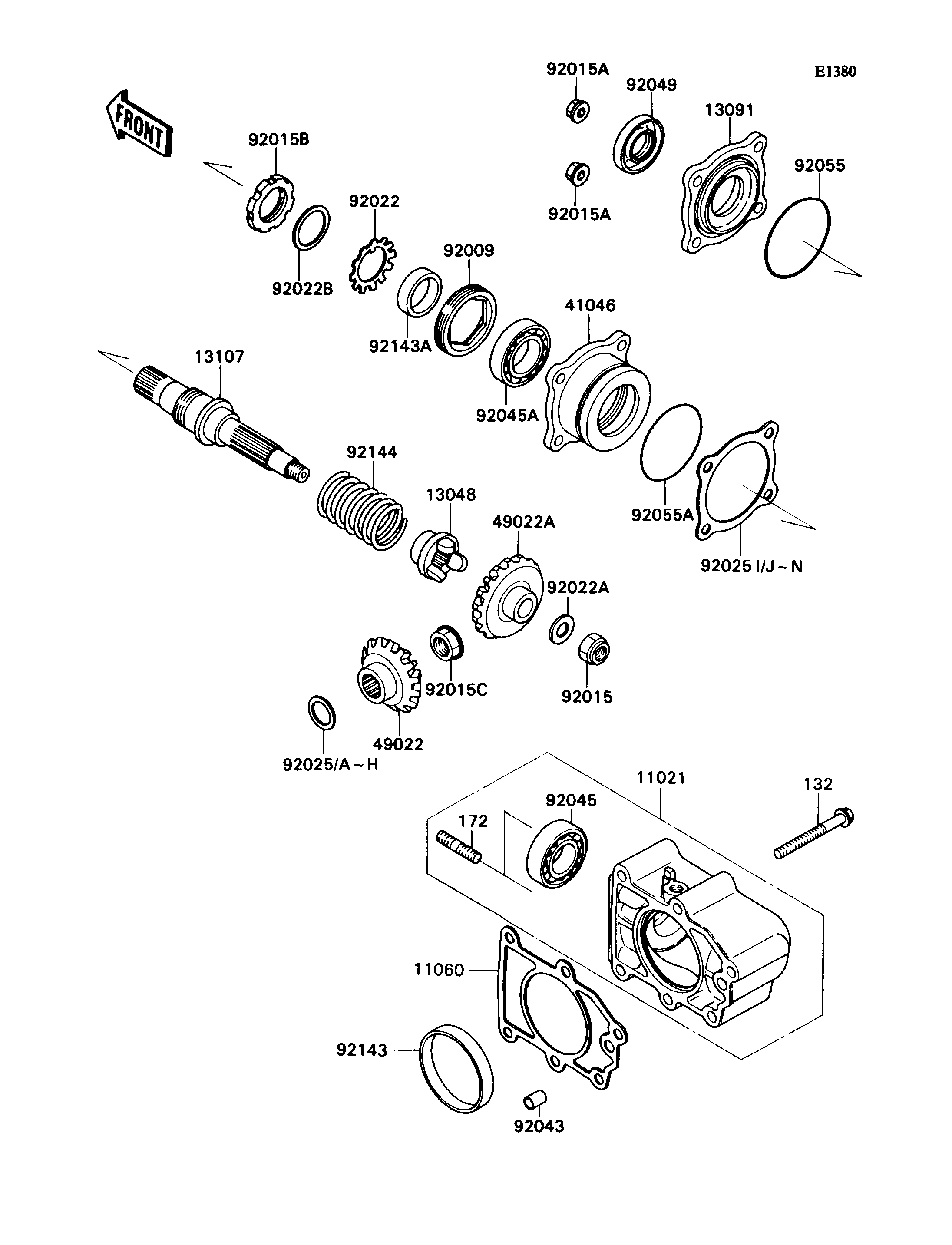

Mule 2010 - Particular

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ASSY,4WD 11021 11021-1074 1
GASKET,GEAR CASE 11060 11060-1245 1
CAM-DAMPER 13048 13048-1070 1
HOLDER,GEAR CASE 13091 13091-1620 1
SHAFT 13107 13107-1262 1
HOUSING-BEARING 41046 41046-1083 1
GEAR-BEVEL,15T 49022 49022-1095 1
GEAR-BEVEL,18T 49022A 49022-1096 1
SCREW 92009 92009-1474 1
NUT,LOCK,12MM,BLACK 92015 92015-1190 1
NUT,FLANGED,8MM 92015A 92015-1406 4
NUT,PUMP GEAR,30MM 92015B 92015-1511 1
NUT 92015C 92015-1581 1
WASHER 92022 92022-1882 1
WASHER,12X24X2.3 92022A 92022-1890 1
WASHER,30.3X38X0.5 92022B 92022-1987 1
SHIM,20.3X28X1.3 92025 92025-1533 AR
SHIM,20.3X28X0.7 92025A 92025-1534 AR
SHIM,20.3X28X0.8 92025B 92025-1535 AR
SHIM,20.3X28X0.9 92025C 92025-1536 AR
SHIM,20.3X28X1.0 92025D 92025-1537 AR
SHIM,20.3X28X1.2 92025E 92025-1538 AR
SHIM,20.3X28X0.15 92025F 92025-1573 AR
SHIM,20.3X28X0.20 92025G 92025-1574 AR
SHIM,20.3X28X1.1 92025H 92025-1575 AR
SHIM,T=1.00 92025I 92025-1858 AR
SHIM,T=0.10 92025J 92025-1859 AR
SHIM,T=0.15 92025K 92025-1860 AR
SHIM,T=0.50 92025L 92025-1861 AR
SHIM,T=0.80 92025M 92025-1862 AR
SHIM,T=1.20 92025N 92025-1863 AR
PIN,DOWEL,10X14 92043 92043-1037 1
BEARING-BALL 92045 92045-1200 1
BEARING-BALL,6006CM 92045A 92045-1201 1
SEAL-OIL 92049 92049-1288 1
RING-O,66.5MM 92055 92055-1287 1
RING-O,63MM 92055A 92055-1294 1
COLLAR,66X70X11 92143 92143-1120 1
COLLAR 92143A 92143-1121 1
SPRING 92144 92144-1161 1
BOLT-FLANGED-SMALL 132 132H0870 6
BOLT-STUD,8X25 172 172G0825 4
