Parts Diagrams |

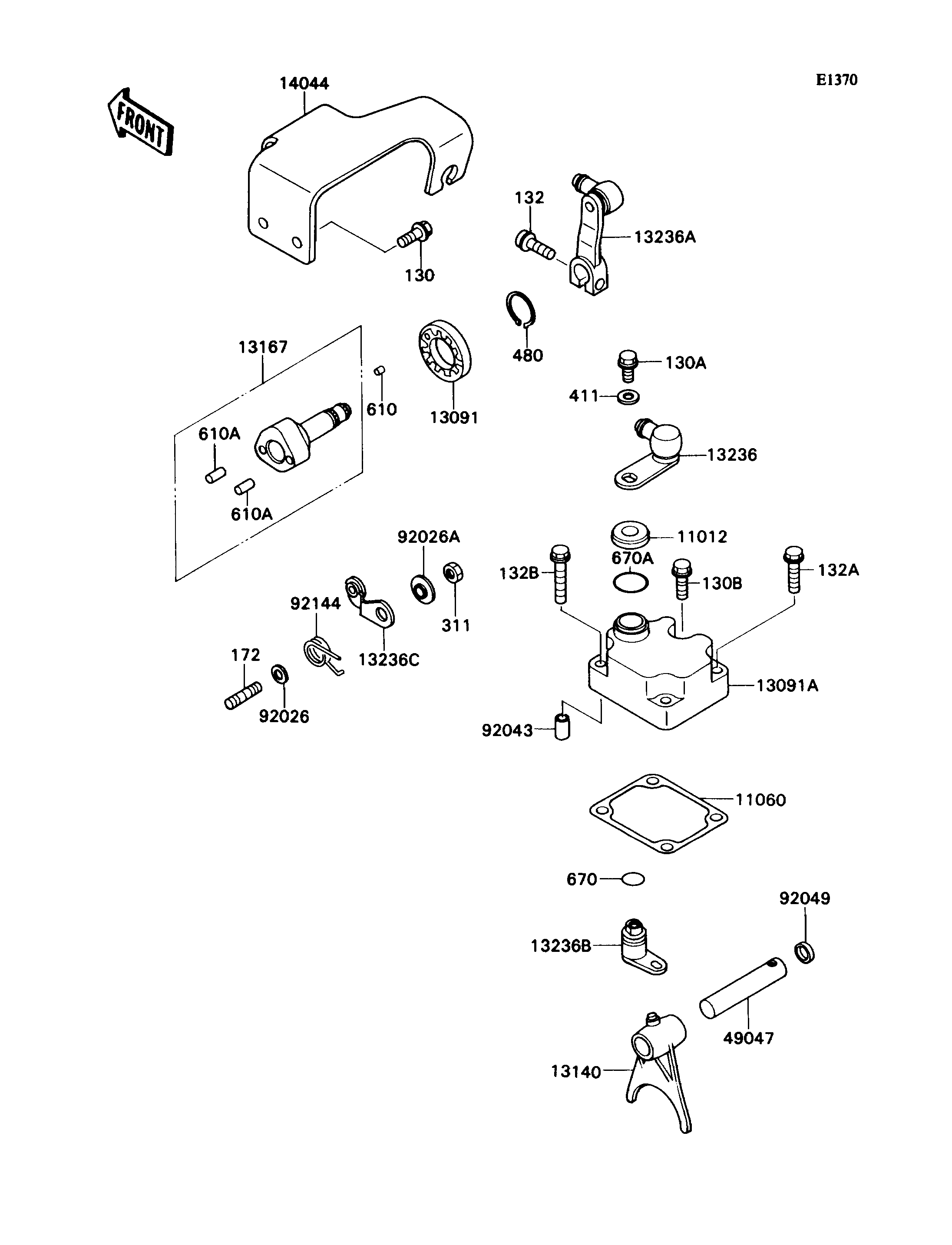

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1652 | 1 | ||
| GASKET,CONTROL LEVER | 11060 | 11060-1233 | 1 | ||
| HOLDER,CHANGE LEVER | 13091 | 13091-1540 | 1 | ||
| HOLDER | 13091A | 13091-1548 | 1 | ||
| FORK-SHIFT | 13140 | 13140-1175 | 1 | ||
| SHAFT-CHANGE | 13167 | 13167-1078 | 1 | ||
| LEVER-COMP | 13236 | 13236-1175 | 1 | ||
| LEVER-COMP | 13236A | 13236-1198 | 1 | ||
| LEVER-COMP,HIGH/LOW | 13236B | 13236-1199 | 1 | ||
| LEVER-COMP,POSITION | 13236C | 13236-1200 | 1 | ||
| HOLDER-CABLE | 14044 | 14044-1066 | 1 | ||
| ROD-SHIFT | 49047 | 49047-1078 | 1 | ||
| SPACER,6.3X12X1.0 | 92026 | 92026-094 | 1 | ||
| SPACER | 92026A | 92026-1217 | 1 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 2 | ||
| SEAL-OIL,RCA124 | 92049 | 92049-1311 | 1 | ||
| SPRING,POSITION RETURN | 92144 | 92144-1409 | 1 | ||
| BOLT-FLANGED | 130 | 130D0616 | 2 | ||
| BOLT-FLANGED | 130A | 130J0612 | 1 | ||
| BOLT-FLANGED | 130B | 130J0620 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0620 | 1 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0625 | 2 | ||
| BOLT-FLANGED-SMALL | 132B | 132J0635 | 2 | ||
| BOLT-STUD,6X14 | 172 | 172G0614 | 1 | ||
| NUT-HEX,6MM | 311 | 311G0600 | 1 | ||
| WASHER-PLAIN,6MM,BLACK | 411 | 411F0600 | 1 | ||
| CIRCLIP-TYPE-C,22MM | 480 | 480J2200 | 1 | ||
| ROLLER,4X4 | 610 | 610A0404 | 1 | ||
| ROLLER,6X12 | 610A | 610A0612 | 2 | ||
| O RING,10MM | 670 | 670B2010 | 1 | ||
| O RING,18MM | 670A | 670B2018 | 1 |
