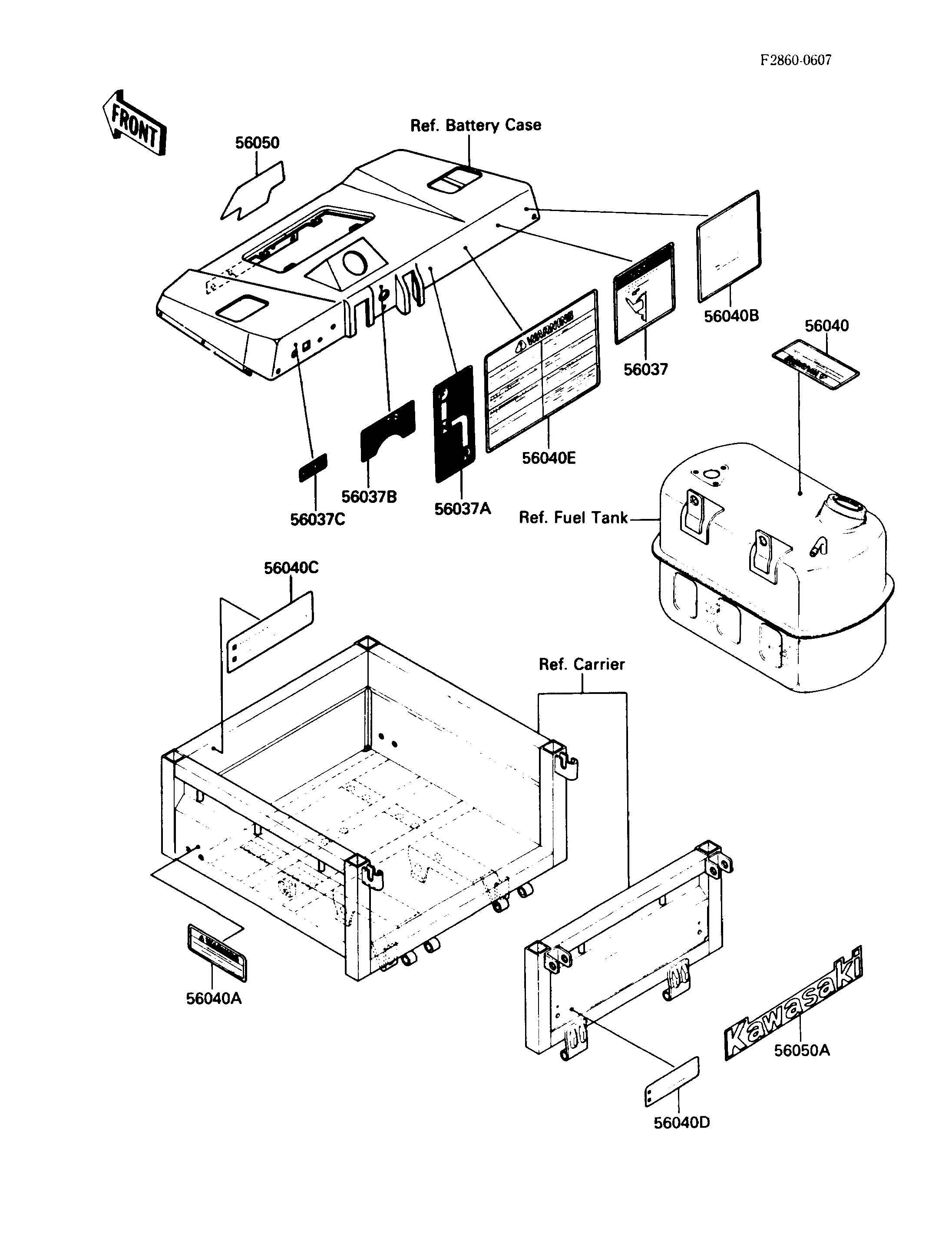

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL-SPECIFICATION,BRAKE | 56037 | 56037-1397 | 1 | ||
| LABEL-SPECIFICATION,SHIFT | 56037A | 56037-1398 | 1 | ||
| LABEL-SPECIFICATION,IGNITION | 56037B | 56037-1410 | 1 | ||
| LABEL-SPECIFICATION,HORN | 56037C | 56037-1411 | 1 | ||
| LABEL-WARNING,FUEL TANK | 56040 | 56040-1241 | 1 | ||
| LABEL-WARNING,BED RAISED | 56040A | 56040-1242 | 1 | ||
| LABEL-WARNING,IMPORTANT INFO | 56040B | 56040-1243 | 1 | ||
| LABEL-WARNING,MAXIMUM LOAD | 56040C | 56040-1244 | 1 | ||
| LABEL-WARNING,MAXIMUM LOAD | 56040D | 56040-1245 | 1 | ||
| LABEL-WARNING | 56040E | 56040-1249 | 1 | ||
| LABEL-WARNING,SHIFT | 56040F | 56040-1305 | 1 | ||
| MARK,UPPER COVER | 56050 | 56050-1104 | 1 | ||
| MARK,TAIL GATE | 56050A | 56050-1105 | 1 |
