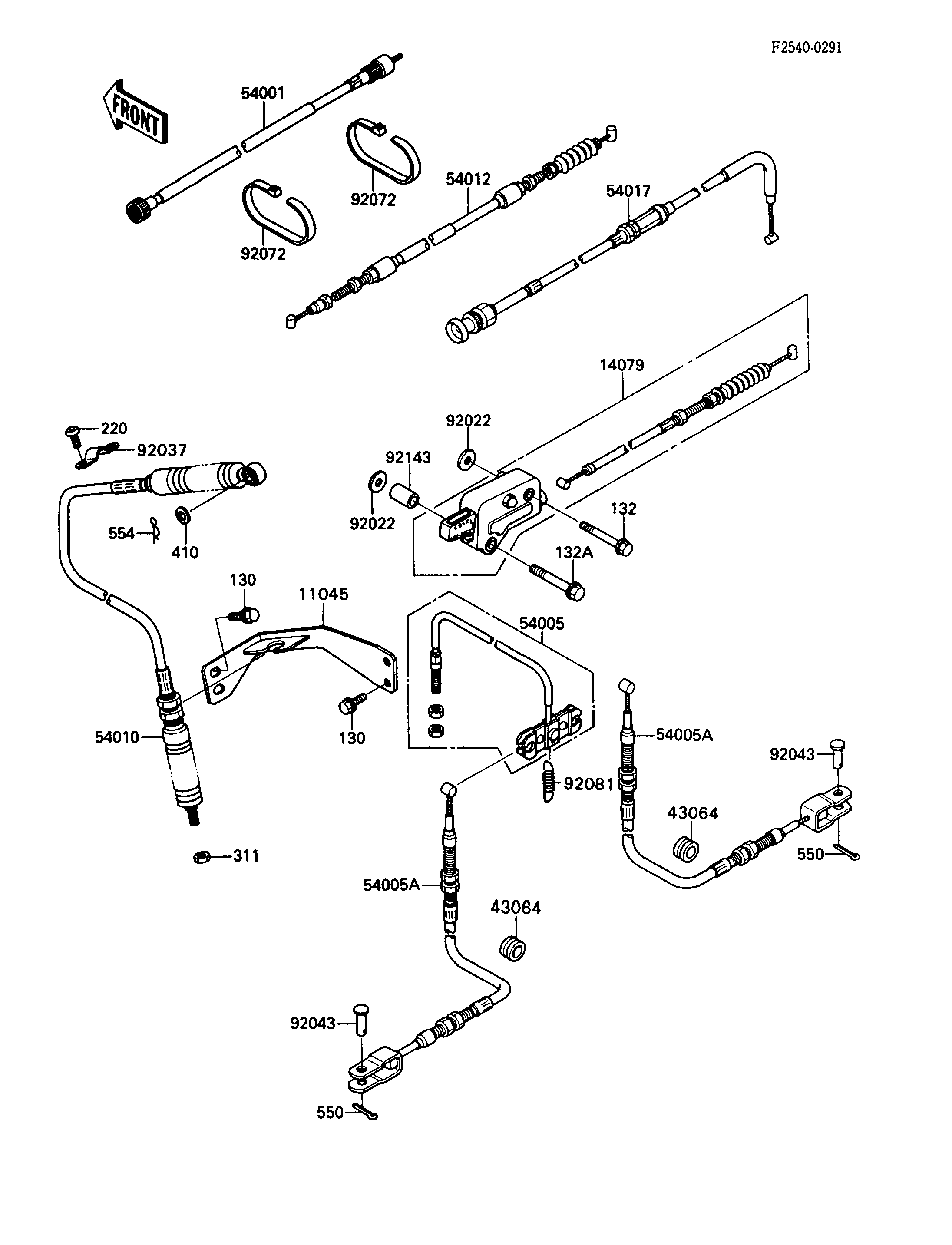

Mule 1000 - Cables

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132A
220
311
410
550
550
554
11045
14079
43064
43064
54001
54005
54005A
54005A
54010
54012
54017
92022
92022
92037
92043
92043
92072
92072
92081
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130H0612 4
BOLT-FLANGED-SMALL 132 132J0660 1
BOLT-FLANGED-SMALL,8X60 132A 132J0860 1
SCREW-PAN-CROS,5X14 220 220D0514 2
NUT-HEX,6MM 311 311B0600 1
W-PLAIN-S,8MM 410 410E0800 1
PIN-COTTER,2.0X20 550 550D2020 2
PIN-SNAP,8MM 554 554A0800 1
BRACKET,SHIFT CABLE,RR 11045 11045-1875 1
HOLDER-ASSY,DIFF LOCK 14079 14079-1058 1
GROMMET,HOSE CLAMP 43064 43064-006 2
CABLE-SPEEDOMETER 54001 54001-1135 1
CABLE-BRAKE,PARKING,FR 54005 54005-1142 1
CABLE-BRAKE,PARKING,RR 54005A 54005-1143 2
CABLE,SHIFT CONTROL 54010 54010-1066 1
CABLE-THROTTLE 54012 54012-1338 1
CABLE-STARTER 54017 54017-1094 1
WASHER,8.5X26X1.6 92022 92022-092 2
CLAMP,CABLE 92037 92037-1933 1
PIN 92043 92043-1039 2
BAND,L=365 92072 92072-1197 2
SPRING 92081 92081-1980 1
COLLAR,11.3X15.9X36 92143 92143-1162 1
