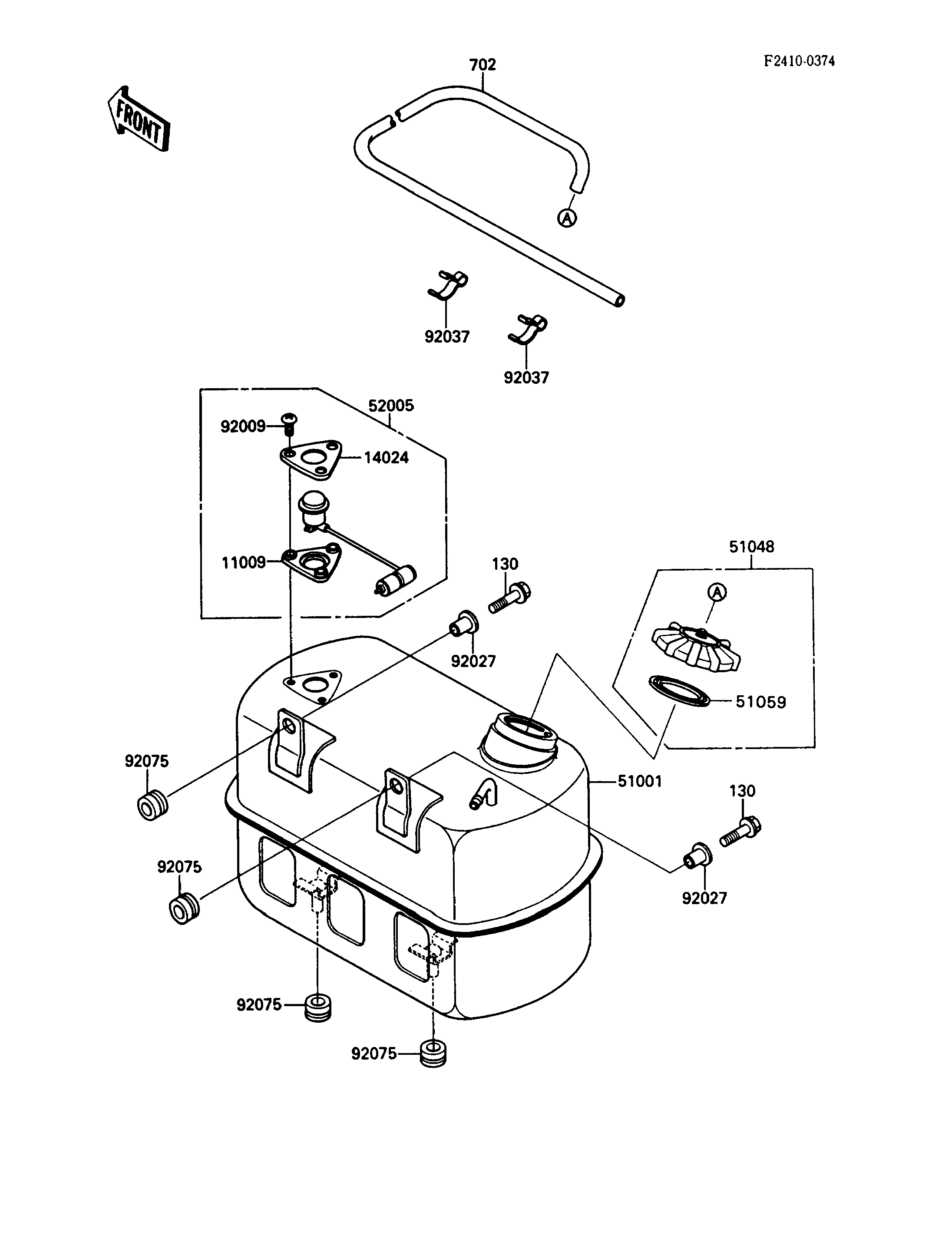

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
130
702
11009
14024
51001
51048
51059
52005
92009
92027
92027
92037
92037
92075
92075
92075
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X30 | 130 | 130D0830 | 2 | ||
| TUBE-RUBBER,5X8X600 | 702 | 702A05600 | 1 | ||
| GASKET,FUEL GAUGE | 11009 | 11009-1755 | 1 | ||
| COVER,FUEL GAUGE | 14024 | 14024-1697 | 1 | ||
| TANK-COMP-FUEL | 51001 | 51001-1270 | 1 | ||
| CAP-ASSY-TANK,FUEL | 51048 | 51048-1004 | 1 | ||
| GASKET,FUEL TANK CAP | 51059 | 51059-006 | 1 | ||
| GAUGE,FUEL | 52005 | 52005-1085 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1541 | 3 | ||
| COLLAR,L=19.3 | 92027 | 92027-1780 | 2 | ||
| CLAMP,AIR VENT TUBE | 92037 | 92037-1092 | 2 | ||
| DAMPER | 92075 | 92075-1736 | 4 |
| BOLT-FLANGED,8X30 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER,5X8X600 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL GAUGE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FUEL GAUGE | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL | |
| REF # | 51001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-TANK,FUEL | |
| REF # | 51048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TANK CAP | |
| REF # | 51059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,FUEL | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=19.3 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,AIR VENT TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
