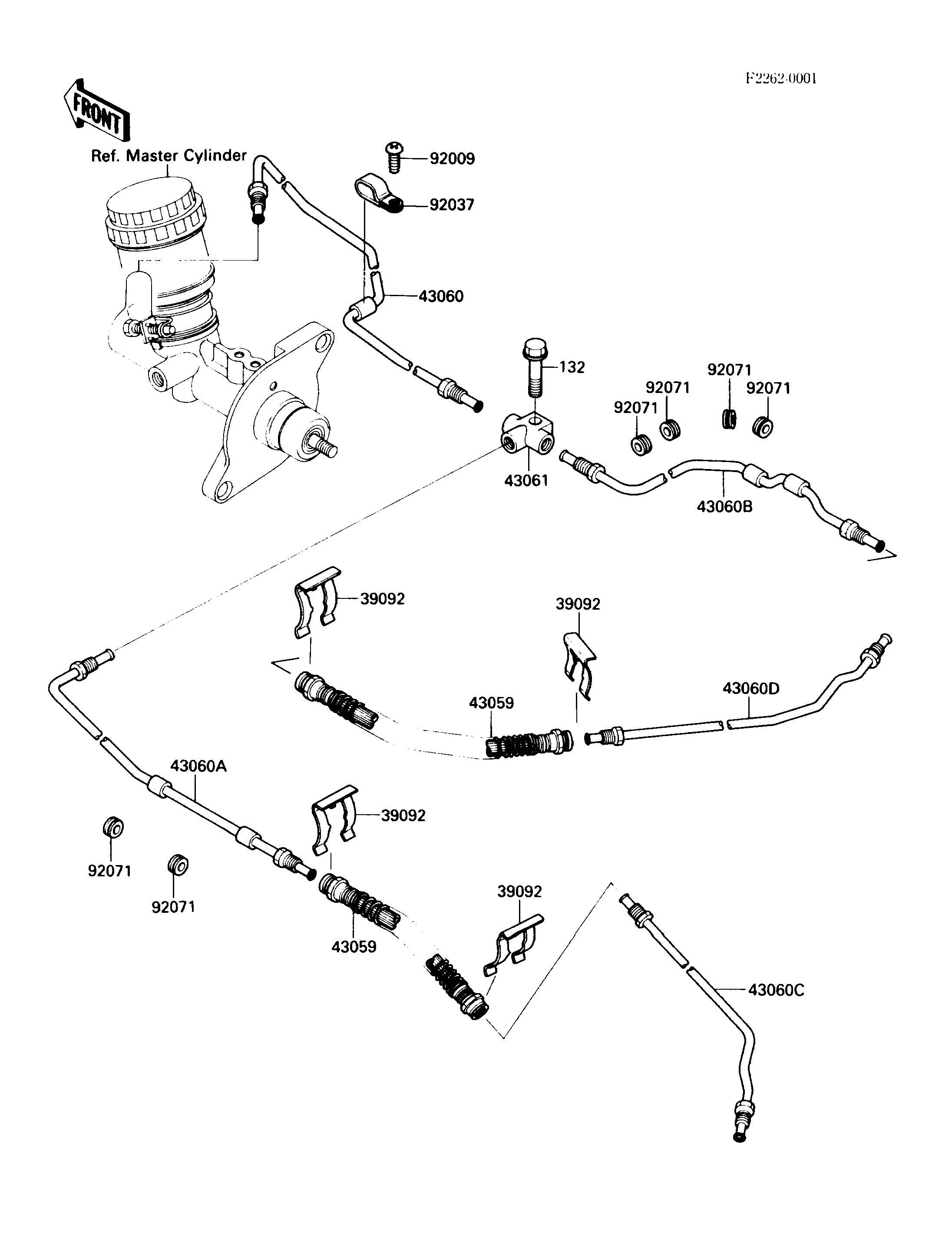

Parts Diagrams |
132
39092
39092
39092
39092
43059
43059
43060
43060A
43060B
43060C
43060D
43061
92009
92037
92071
92071
92071
92071
92071
92071
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132G0830 | 1 | ||
| PIN-HAIR | 39092 | 39092-1054 | 4 | ||
| HOSE-BRAKE,RR | 43059 | 43059-1413 | 2 | ||
| PIPE-BRAKE,FR | 43060 | 43060-1056 | 1 | ||
| PIPE-BRAKE,MIDDLE,LH | 43060A | 43060-1057 | 1 | ||
| PIPE-BRAKE,MIDDLE,RH | 43060B | 43060-1058 | 1 | ||
| PIPE-BRAKE,RR,LH | 43060C | 43060-1059 | 1 | ||
| PIPE-BRAKE,RR,RH | 43060D | 43060-1060 | 1 | ||
| JOINT-BRAKE | 43061 | 43061-1063 | 1 | ||
| SCREW,TAPPING,5X10 | 92009 | 92009-1332 | 1 | ||
| CLAMP | 92037 | 92037-1608 | 1 | ||
| GROMMET | 92071 | 92071-1152 | 6 |
