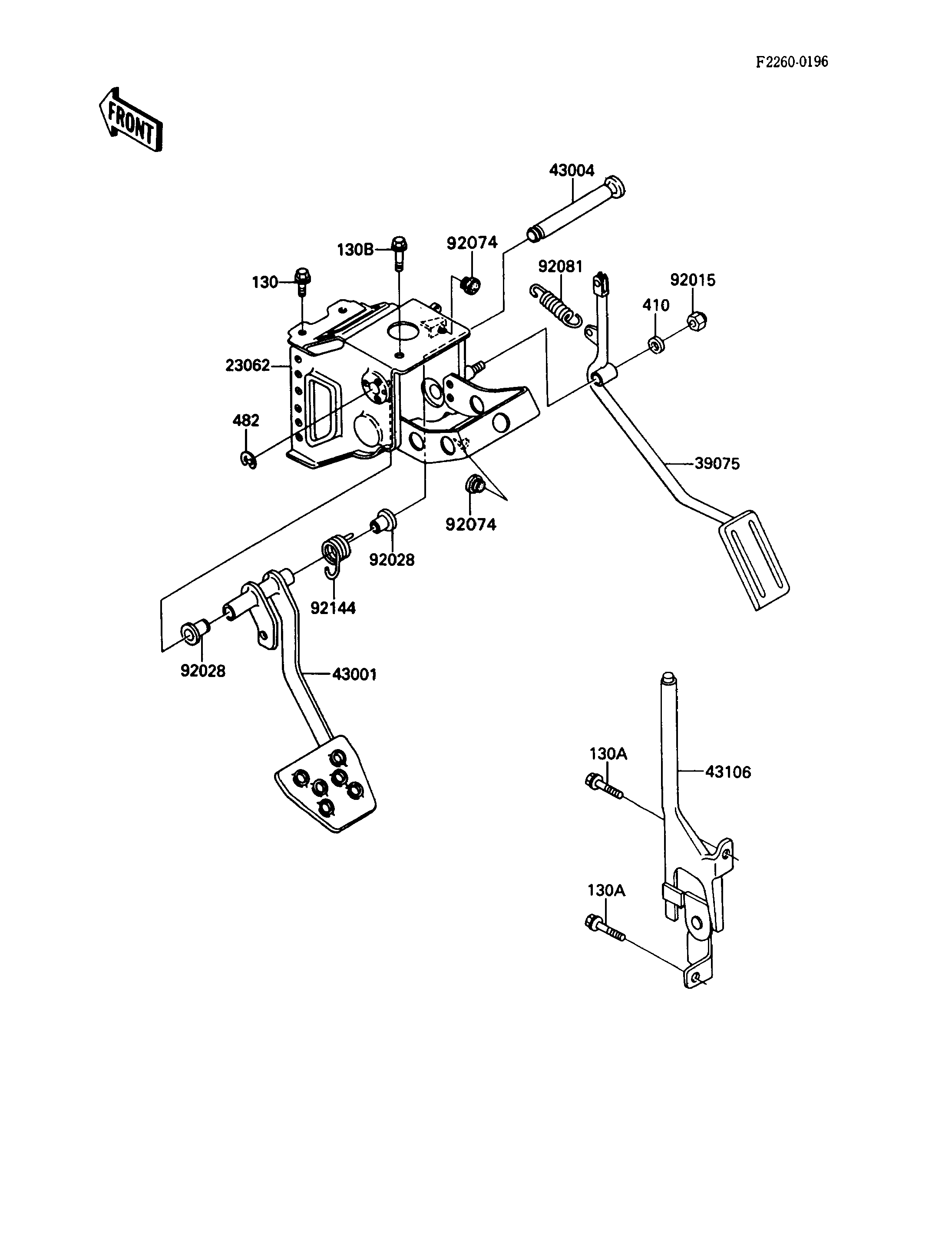

Mule 1000 - Brake Pedal/Throttle Lever
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130D0812 | 2 | ||
| BOLT-FLANGED | 130A | 130D0816 | 2 | ||
| BOLT-FLANGED,10X16 | 130B | 130D1016 | 2 | ||
| W-PLAIN-S,8MM | 410 | 410E0800 | 1 | ||
| CIRCLIP-TYPE-E,10MM | 482 | 482J0100 | 1 | ||
| BRACKET-COMP,FOOT BRAKE PEDAL | 23062 | 23062-1070 | 1 | ||
| LEVER-THROTTLE | 39075 | 39075-1055 | 1 | ||
| LEVER-BRAKE,PEDAL | 43001 | 43001-1227 | 1 | ||
| SHAFT-BRAKE | 43004 | 43004-1123 | 1 | ||
| LEVER-ASSY-PARKING BRAKE | 43106 | 43106-1001 | 1 | ||
| NUT,LOCK,8MM | 92015 | 92015-1424 | 1 | ||
| BUSHING | 92028 | 92028-1498 | 2 | ||
| PLUG,7X2 | 92074 | 92074-028 | 2 | ||
| SPRING,BRAKE PEDAL | 92081 | 92081-1296 | 1 | ||
| SPRING,BRAKE PEDAL RETURN | 92144 | 92144-1147 | 1 |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X16 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| W-PLAIN-S,8MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-E,10MM | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-COMP,FOOT BRAKE PEDAL | |
| REF # | 23062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-THROTTLE | |
| REF # | 39075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-BRAKE,PEDAL | |
| REF # | 43001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-BRAKE | |
| REF # | 43004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-PARKING BRAKE | |
| REF # | 43106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,7X2 | |
| REF # | 92074 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE PEDAL | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE PEDAL RETURN | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
