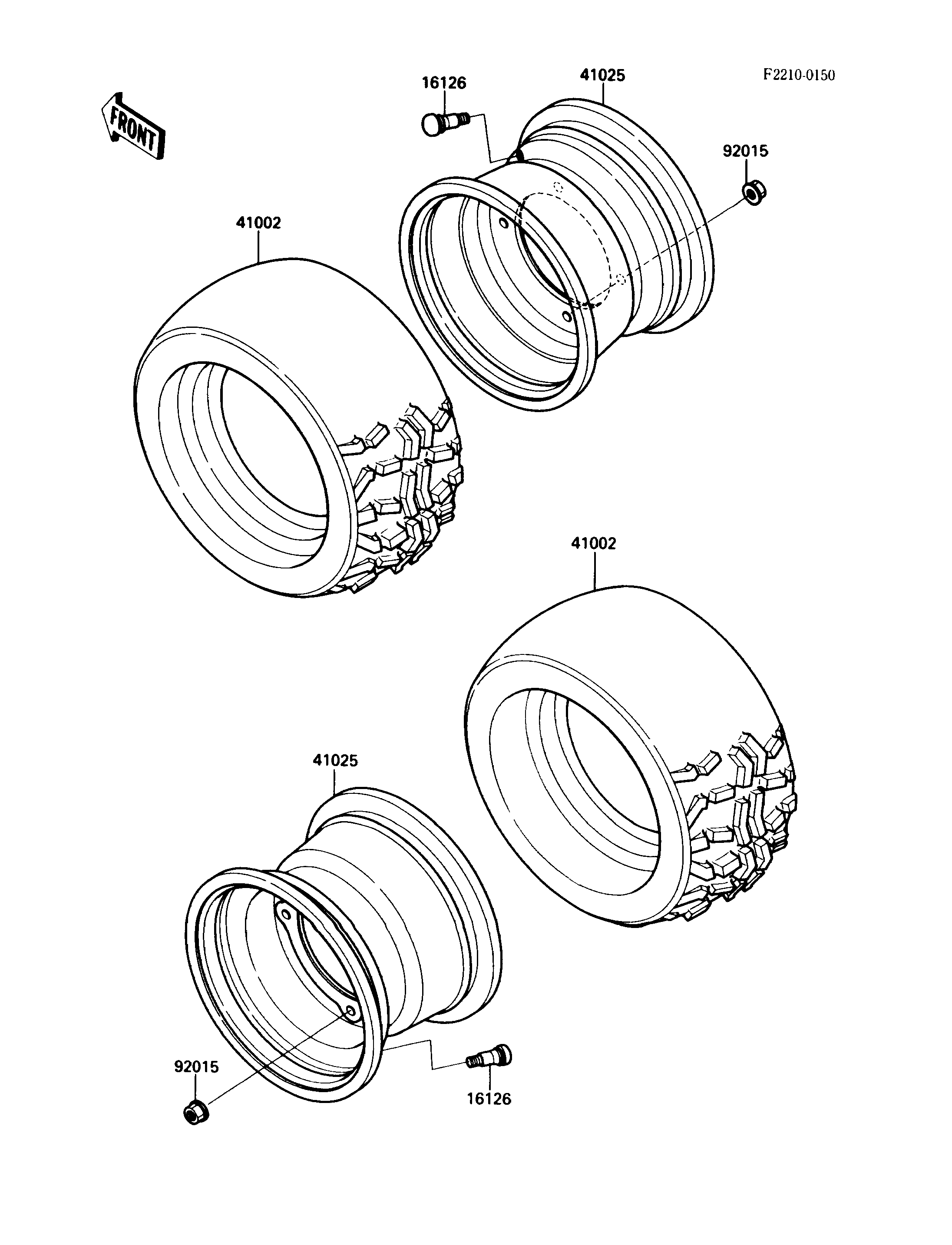

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE | 16126 | 16126-4001 | 4 | ||
| TIRE,22X11.00-10,KT869(D) | 41002 | 41002-1664 | 4 | ||
| TIRE,RADIAL,22X11.00-10,KT869 | 41002A | 41002-1716 | 4 | (OPTION) | |
| TIRE,MUD,22X11.00-10,KT962(D) | 41002B | 41002-1717 | 4 | (OPTION) | |
| RIM,J.WHITE | 41025 | 41025-1190-8C | 4 | ||
| NUT,LOCK,10MM | 92015 | 92015-1808 | 16 |
