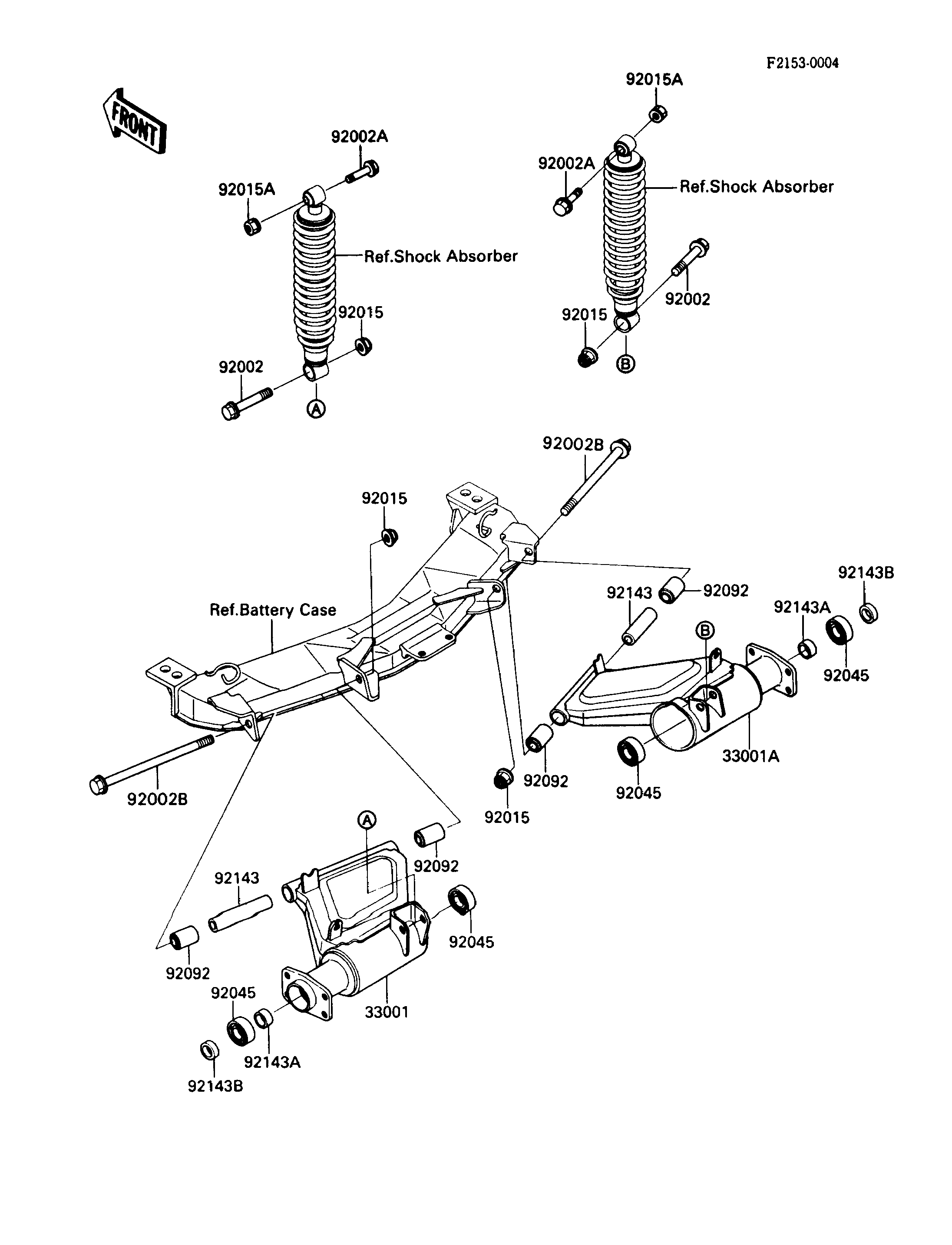

Mule 1000 - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
33001
33001A
92002
92002
92002A
92002A
92002B
92002B
92015
92015
92015
92015
92015A
92015A
92045
92045
92045
92045
92092
92092
92092
92092
92143
92143
92143A
92143A
92143B
92143B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-COMP-SWING,RR,LH 33001 33001-1296 1
ARM-COMP-SWING,RR,RH 33001A 33001-1297 1
BOLT,FLANGED,12X65 92002 92002-1506 2
BOLT,FLANGED,10X49 92002A 92002-1562 2
BOLT,FLANGED,12X215 92002B 92002-1948 2
NUT,FLANGED,12MM 92015 92015-1433 4
NUT,LOCK,10MM 92015A 92015-1808 2
BEARING-BALL,6205DDU 92045 92045-1229 4
BUSHING-RUBBER 92092 92092-1057 4
COLLAR,12.5X23X102.2 92143 92143-1107 2
COLLAR,25.1X32X23.3 92143A 92143-1108 2
COLLAR,25.1X35X11 92143B 92143-1109 2
