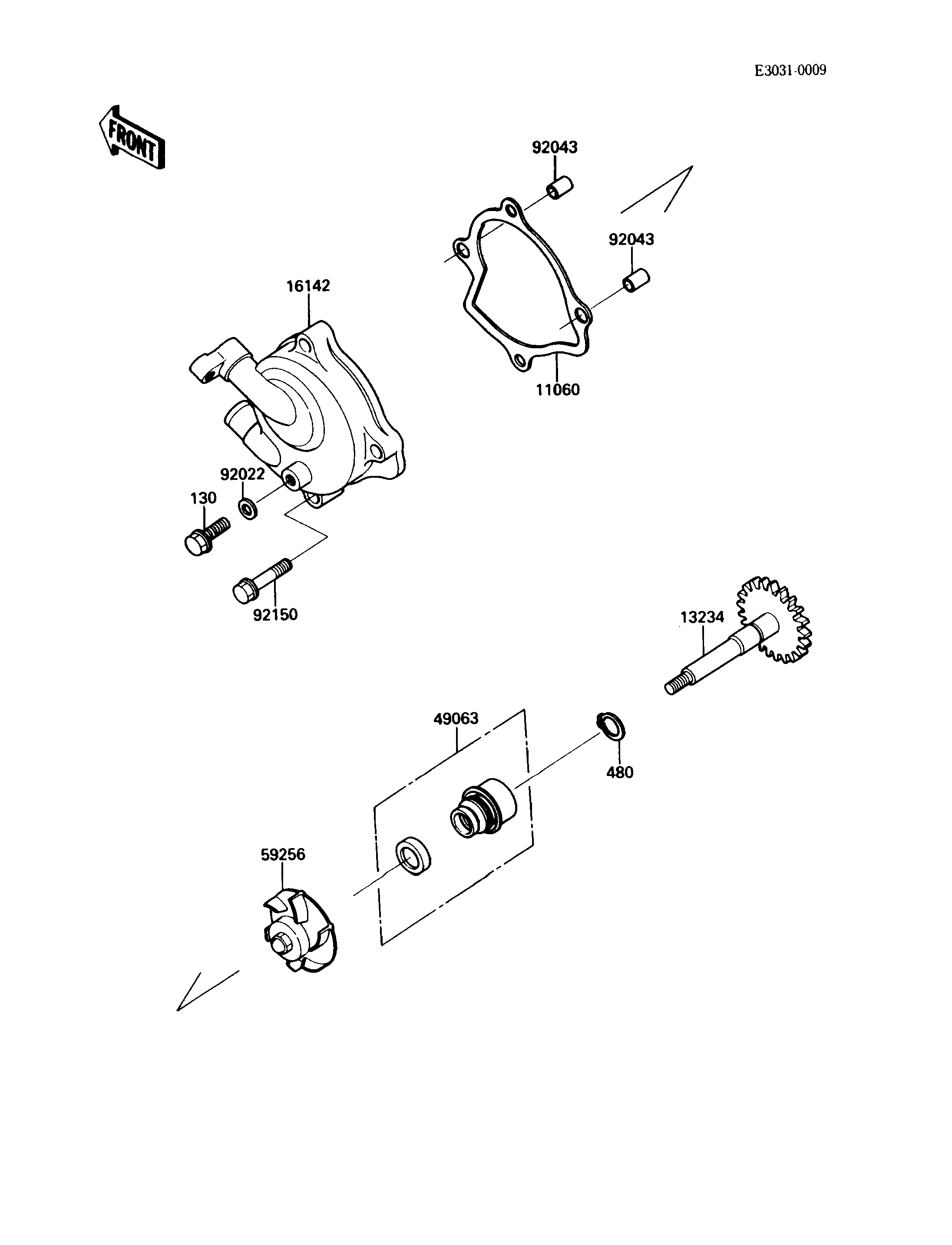

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130J0610 | 1 | ||
| CIRCLIP-TYPE-C,12MM | 480 | 480J1200 | 1 | ||
| GASKET,PUMP COVER | 11060 | 11060-1252 | 1 | ||
| SHAFT-COMP,WATER | 13234 | 13234-1077 | 1 | ||
| COVER-PUMP | 16142 | 16142-1083 | 1 | ||
| SEAL-MECHANICAL | 49063 | 49063-1054 | 1 | ||
| IMPELLER | 59256 | 59256-1060 | 1 | ||
| WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
| PIN,DOWEL,8X10 | 92043 | 92043-1302 | 2 | ||
| BOLT,6X30 | 92150 | 92150-1021 | 4 |
