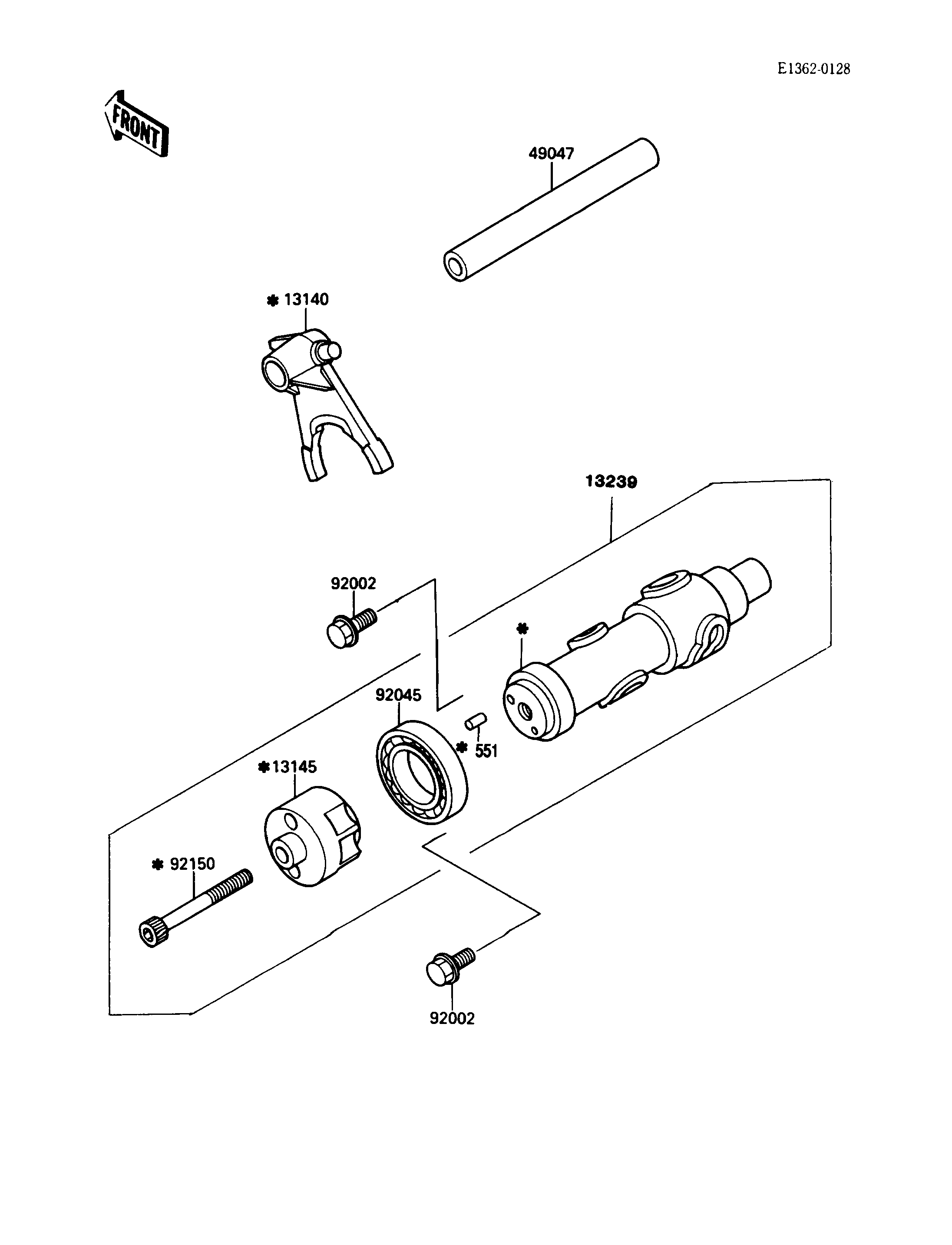

Mule 1000 - Gear Change Drum/Shift Fork(s)(-003435)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-DOWEL,4X8 | 551 | 551A0408 | 1 | ||
| FORK-SHIFT,OUTPUT | 13140 | 13140-1062 | 1 | ||
| CAM-CHANGE DRUM | 13145 | 13145-1067 | 2 | ||
| DRUM-ASSY-CHANGE | 13239 | 13239-1155 | 1 | ||
| ROD-SHIFT,L=106.7 | 49047 | 49047-1056 | 1 | ||
| BOLT,6X12 | 92002 | 92002-1572 | 2 | ||
| BEARING-BALL,#6905 | 92045 | 92045-036 | 2 | ||
| BOLT,CHANGE DRUM | 92150 | 92150-1098 | 1 |
