Parts Diagrams |

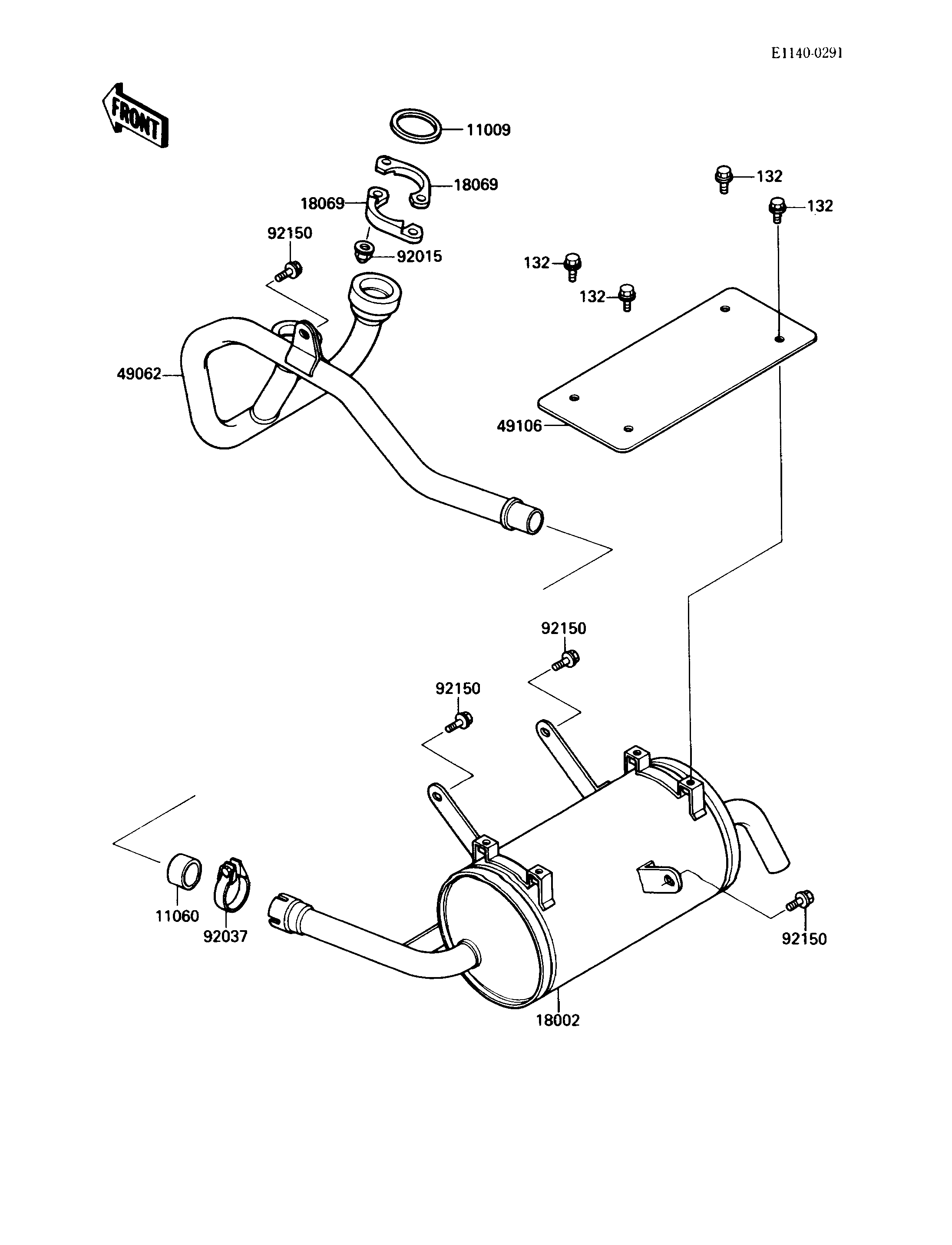

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X10 | 132 | 132J0610 | 4 | ||
| GASKET,EXHAUST PIPE HOLDER | 11009 | 11009-1840 | 2 | ||
| GASKET,MUFFLER CONNECTING | 11060 | 11060-1051 | 1 | ||
| BODY-COMP-MUFFLER | 18002 | 18002-1795 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1054 | 4 | ||
| PIPE-COMP-EXHAUST | 49062 | 49062-1053 | 1 | ||
| COVER-MUFFLER | 49106 | 49106-1101 | 1 | ||
| NUT,CAP,8MM | 92015 | 92015-1371 | 4 | ||
| CLAMP,MUFFLER | 92037 | 92037-1227 | 1 | ||
| BOLT | 92150 | 92150-1158 | 4 |
| BOLT-FLANGED-SMALL,6X10 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE HOLDER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,MUFFLER CONNECTING | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER | |
| REF # | 18002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-EXHAUST PIPE | |
| REF # | 18069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP-EXHAUST | |
| REF # | 49062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER | |
| REF # | 49106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,MUFFLER | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
