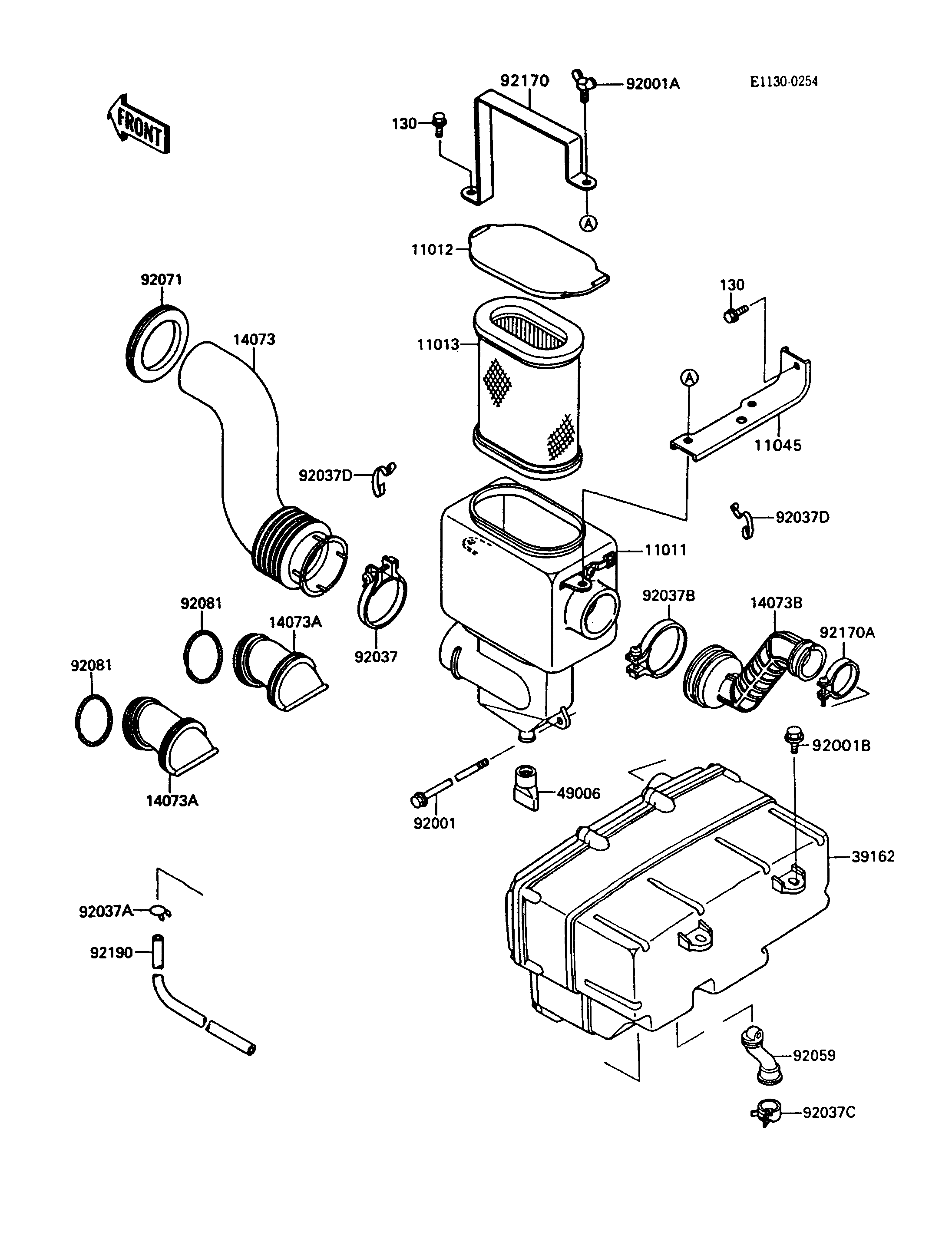

Mule 1000 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
130
130
11011
11012
11013
11045
14073
14073A
14073A
14073B
39162
49006
92001
92001A
92001B
92037
92037A
92037B
92037C
92037D
92037D
92059
92071
92081
92081
92170
92170A
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 2
CASE-AIR FILTER 11011 11011-1350 1
CAP,AIR FILTER 11012 11012-1708 1
ELEMENT-AIR FILTER 11013 11013-1207 1
BRACKET,AIR FILTER CASE 11045 11045-1938 1
DUCT,AIR INTAKE 14073 14073-1320 1
DUCT,SILENSER 14073A 14073-1321 2
DUCT,FILTER CASE 14073B 14073-1455 1
SILENCER-INTAKE 39162 39162-1058 1
BOOT 49006 49006-1199 1
BOLT,6X162 92001 92001-1501 1
BOLT,WING,6X15 92001A 92001-1703 1
BOLT,6X16 92001B 92001-1950 2
CLAMP,AIR FILTER 92037 92037-1409 1
CLAMP,TUBE 92037A 92037-147 1
CLAMP,RESERVE TANK 92037B 92037-1706 1
CLAMP 92037C 92037-1730 1
CLAMP,AIR FILTER 92037D 92037-1783 2
TUBE,BREATHER 92059 92059-1545 1
GROMMET 92071 92071-1158 1
SPRING,AIR FILTER DUCT 92081 92081-1422 2
CLAMP,CAP 92170 92170-1216 1
CLAMP 92170A 92170-1279 1
TUBE 92190 92190-1182 1
