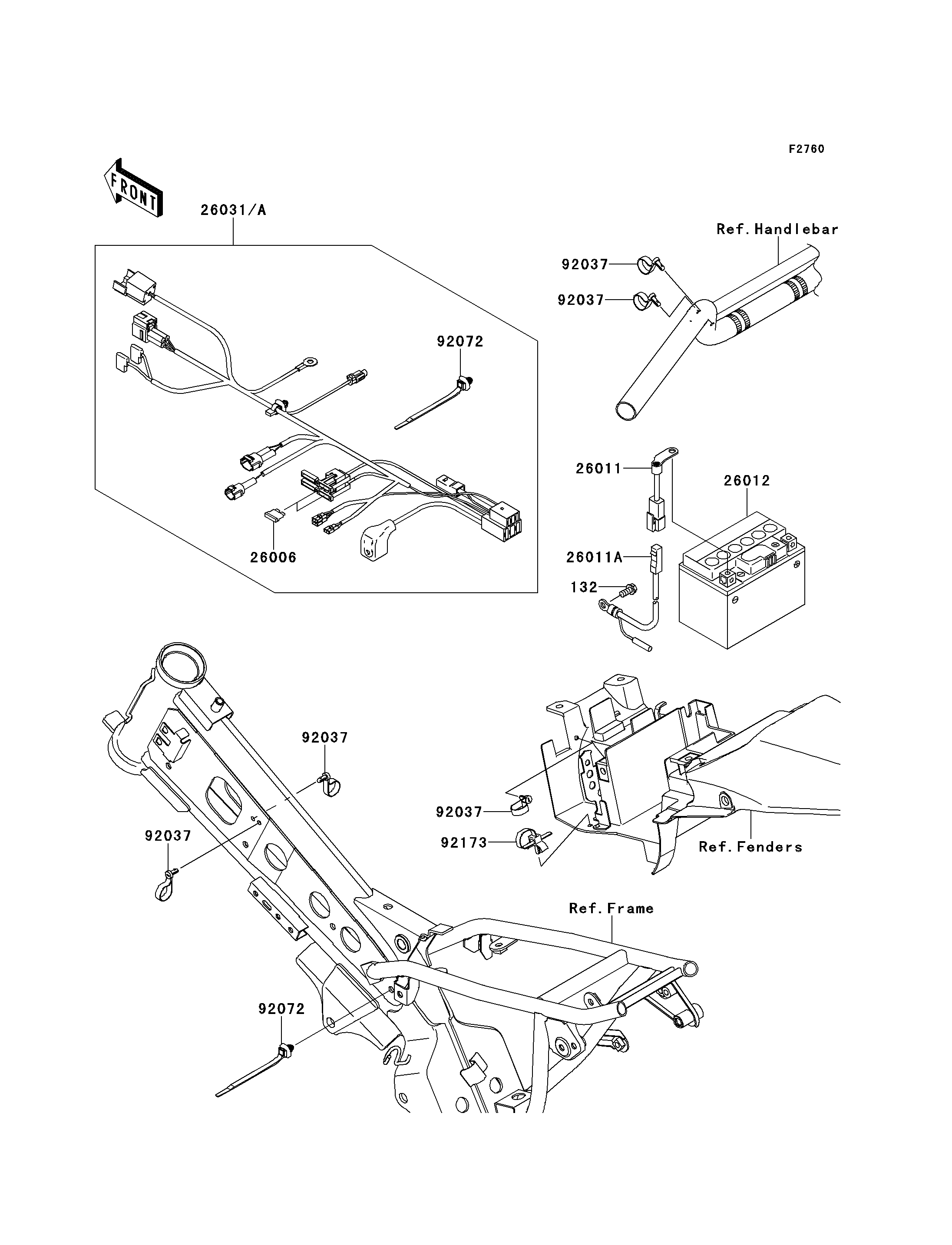

2013 KLX®110 - Chassis Electrical Equipment
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 1 | ||
| FUSE,MINI BLADE,10A,RED | 26006 | 26006-0009 | 2 | ||
| WIRE-LEAD | 26011 | 26011-0245 | 1 | ||
| WIRE-LEAD | 26011A | 26011-0289 | 1 | ||
| BATTERY,FTH4L-BS,12V 3AH | 26012 | 26012-0116 | 1 | ||
| HARNESS,MAIN | 26031A | 26031-1105 | 1 | ||
| CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 5 | ||
| BAND | 92072 | 92072-1414 | 2 | ||
| CLAMP | 92173 | 92173-0191 | 1 |
