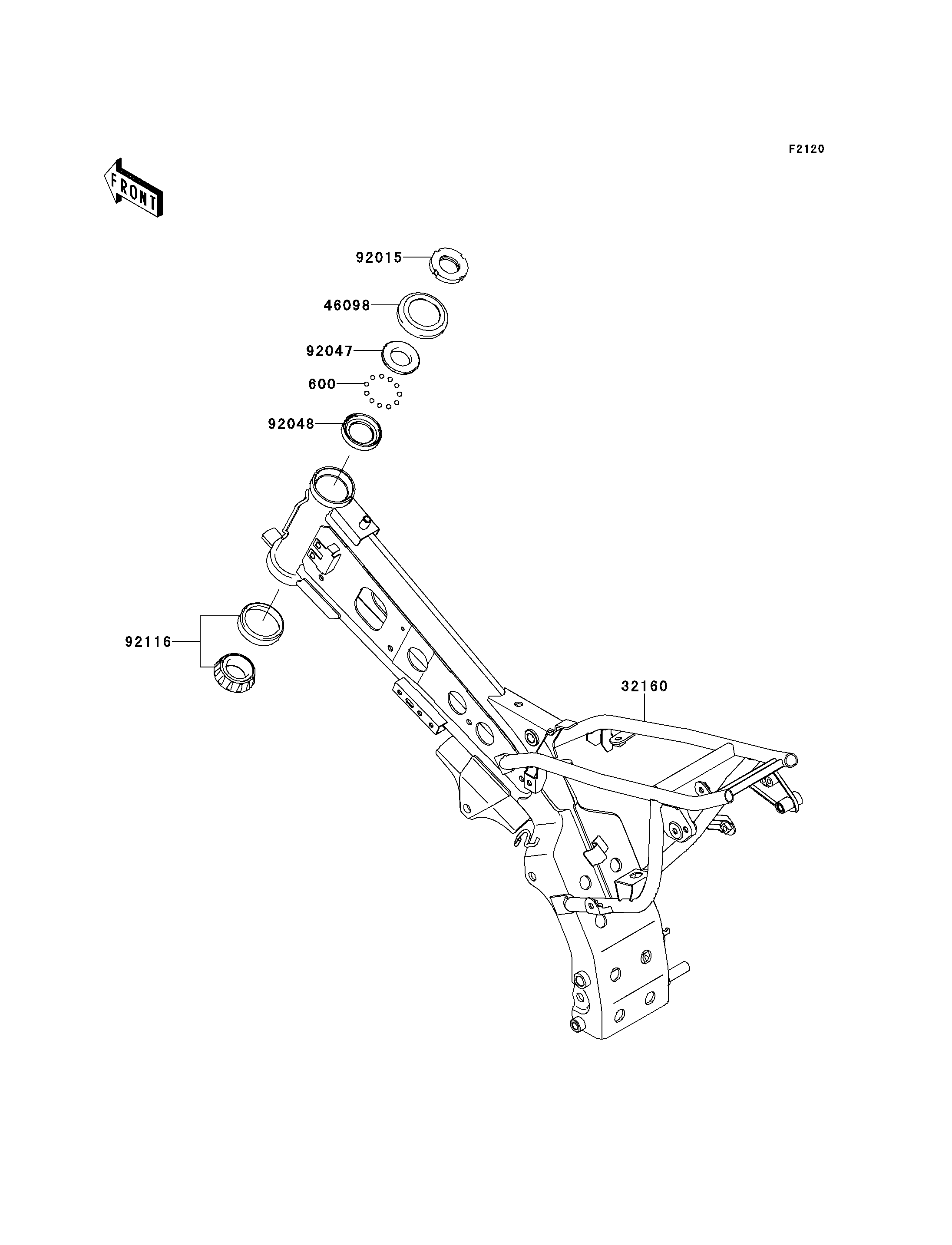

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BALL-STEEL,3/16 | 600 | 600A0600 | 23 | ||
| FRAME-COMP,P.SILVER | 32160 | 32160-0501-458 | 1 | ||
| CAP,STEERING STEM | 46098 | 46098-018 | 1 | ||
| NUT,STEERING LOCK,25MM | 92015 | 92015-1222 | 1 | ||
| CONE,STEERING STEM BEARING | 92047 | 92047-014 | 1 | ||
| RACE,STEERING STEM BEARING | 92048 | 92048-009 | 1 | ||
| BEARING-ROLLER,HR320/28XJ | 92116 | 92116-1009 | 1 |
| BALL-STEEL,3/16 | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 23 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,P.SILVER | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,STEERING STEM | |
| REF # | 46098 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING LOCK,25MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONE,STEERING STEM BEARING | |
| REF # | 92047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE,STEERING STEM BEARING | |
| REF # | 92048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HR320/28XJ | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
