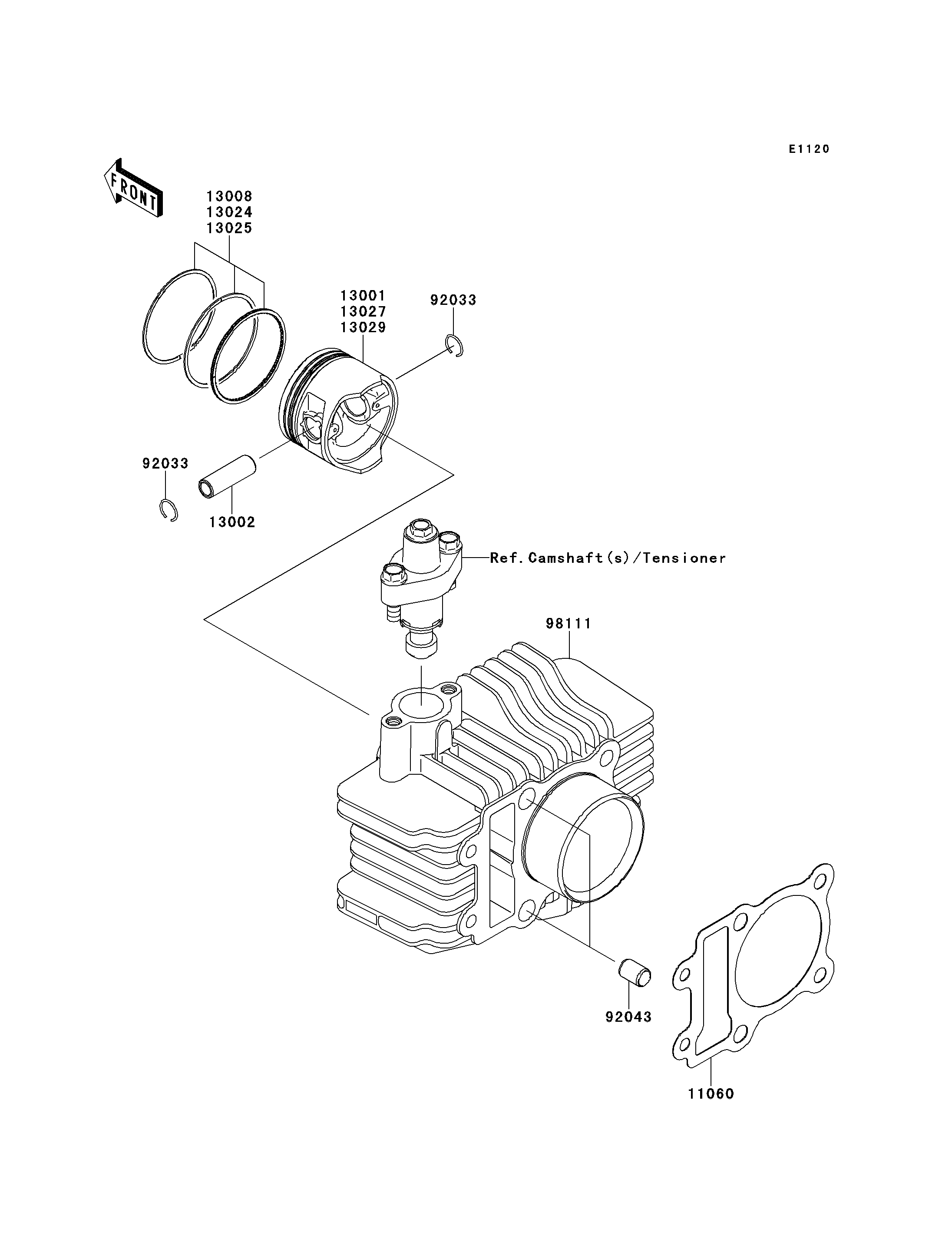

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CYLINDER BASE | 11060 | 11060-1754 | 1 | ||
| PISTON-ENGINE,STD | 13001 | 13001-0118 | 1 | ||
| PIN-PISTON | 13002 | 13002-0031 | 1 | ||
| RING-SET-PISTON | 13008 | 13008-0011 | 1 | ||
| RING-SET-PISTON LL,O/S 1.00 | 13024 | 13024-0007 | 1 | (OPTION) | |
| RING-SET-PISTON L,O/S 0.50 | 13025 | 13025-0008 | 1 | (OPTION) | |
| PISTON-ENGINE LL | 13027 | 13027-0015 | 1 | (OPTION) | |
| PISTON-ENGINE L | 13029 | 13029-0020 | 1 | (OPTION) | |
| RING-SNAP | 92033 | 92033-1072 | 2 | ||
| PIN,8.2X10X14 | 92043 | 92043-0100 | 2 | ||
| CYLINDER-COMP-ENGINE | 98111 | 98111-1083 | 1 |
