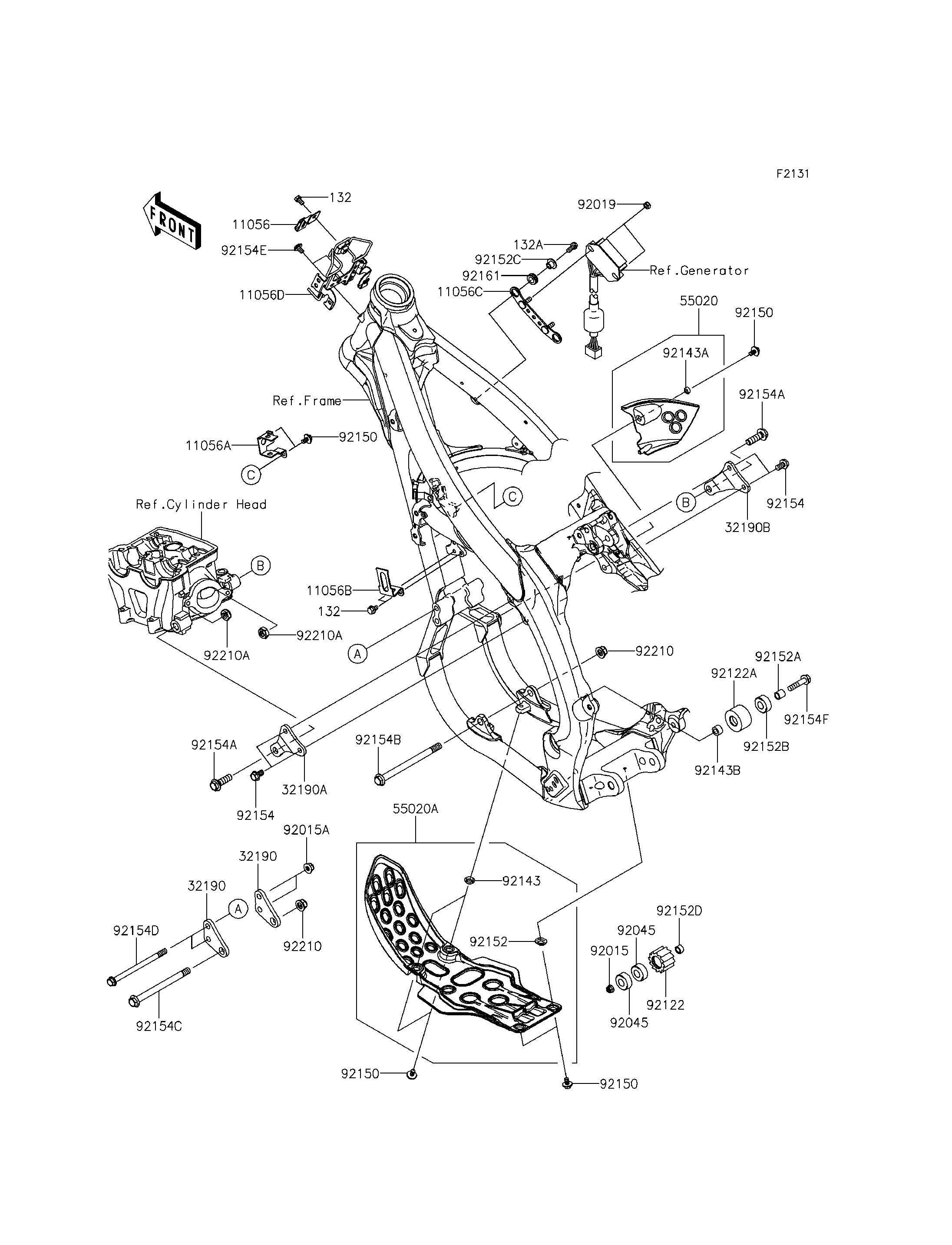

2015 KX™450F - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
132
132
132A
11056
11056A
11056B
11056C
11056D
32190
32190
32190A
32190B
55020
55020A
92015
92015A
92019
92045
92045
92122
92122A
92143
92143A
92143B
92150
92150
92150
92150
92152
92152A
92152B
92152C
92152D
92154
92154
92154A
92154A
92154B
92154C
92154D
92154E
92154F
92161
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X10 132 132BA0610 3
BOLT-FLANGED-SMALL,6X14 132A 132BA0614 2
BRACKET,DIAG CONNECTOR 11056 11056-0070 1
BRACKET,BANK SENSOR 11056A 11056-0071 1
BRACKET,CONDENSER 11056B 11056-0072 1
BRACKET,REGULATOR 11056C 11056-0624 1
BRACKET,ECU 11056D 11056-2219 1
BRACKET-ENGINE,FR 32190 32190-0386 2
BRACKET-ENGINE,UPP,LH 32190A 32190-0463 1
BRACKET-ENGINE,UPP,RH 32190B 32190-0464 1
GUARD,ENGINE,SIDE,RH,EBONY 55020 55020-0434-6C 1
GUARD,ENGINE,LWR,EBONY 55020A 55020-0440-6C 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
NUT,8MM 92015A 92015-1432 2
NUT,LOCK,6MM 92019 92019-008 2
BEARING-BALL,608LLU/2A 92045 92045-0060 2
ROLLER,CHAIN GUIDE 92122 92122-0016 1
ROLLER,CHAIN 92122A 92122-0042 1
COLLAR 92143 92143-1196 2
COLLAR 92143A 92143-1307 1
COLLAR,8.5X15X9 92143B 92143-1642 1
BOLT,6X12 92150 92150-1435 7
COLLAR 92152 92152-0052 2
COLLAR,8.5X12.5X12.5 92152A 92152-0944 1
COLLAR,12.7X27.2X12 92152B 92152-0945 1
COLLAR 92152C 92152-1449 2
COLLAR,8.1X12.5X7.5 92152D 92152-1624 1
BOLT,FLANGED,8X14 92154 92154-0380 4
BOLT,FLANGED,10X32 92154A 92154-0381 2
BOLT,FLANGED,10X137 92154B 92154-0522 1
BOLT,FLANGED,10X124 92154C 92154-0523 1
BOLT,FLANGED,8X122 92154D 92154-0524 2
BOLT,SOCKET,6X10 92154E 92154-0774 2
BOLT,FLANGED,8X35 92154F 92154-0913 1
DAMPER 92161 92161-0266 2
NUT,LOCK,FLANGED,10MM 92210 92210-1080 2
NUT,LOCK,10MM 92210A 92210-1184 2
