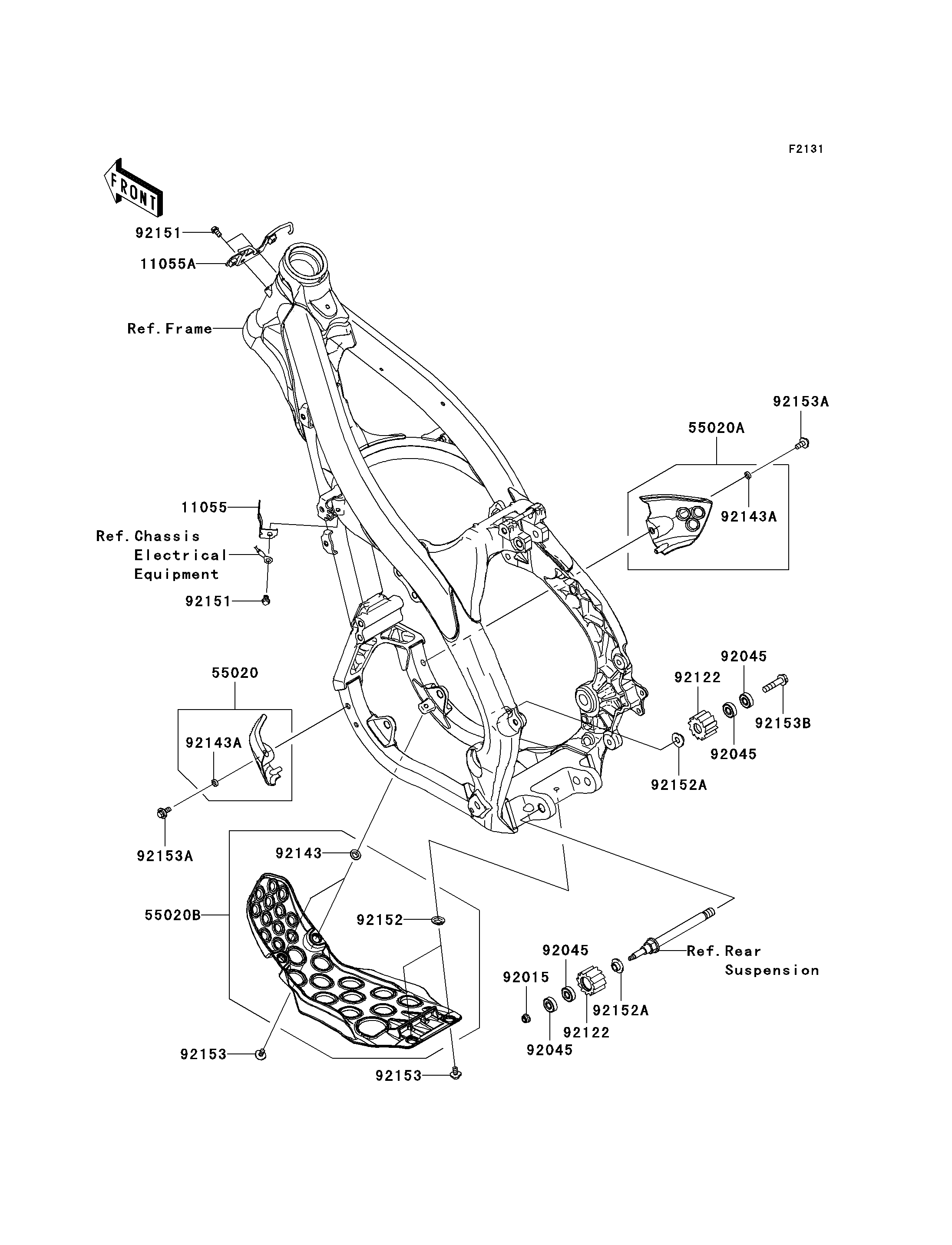

2010 KX™250F - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11055
11055A
55020
55020A
55020B
92015
92045
92045
92045
92045
92122
92122
92143
92143A
92143A
92151
92151
92152
92152A
92152A
92153
92153
92153A
92153A
92153B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11055 11055-0721 1
BRACKET,IGNITER 11055A 11055-1474 1
GUARD,ENGINE,SIDE,LH,EBONY 55020 55020-0435-6C 1
GUARD,ENGINE,SIDE,RH,EBONY 55020A 55020-0436-6C 1
GUARD,ENGINE,LWR,EBONY 55020B 55020-0443-6C 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
BEARING-BALL,608LLU/2A 92045 92045-0060 4
ROLLER,CHAIN GUIDE 92122 92122-0016 2
COLLAR 92143 92143-1196 2
COLLAR 92143A 92143-1307 2
BOLT,FLANGED,6X10 92151 92151-1233 3
COLLAR 92152 92152-0052 2
COLLAR 92152A 92152-0459 2
BOLT,6X12 92153 92153-0503 4
BOLT,6X16 92153A 92153-0863 2
BOLT,FLANGED,8X35 92153B 92153-1652 1
