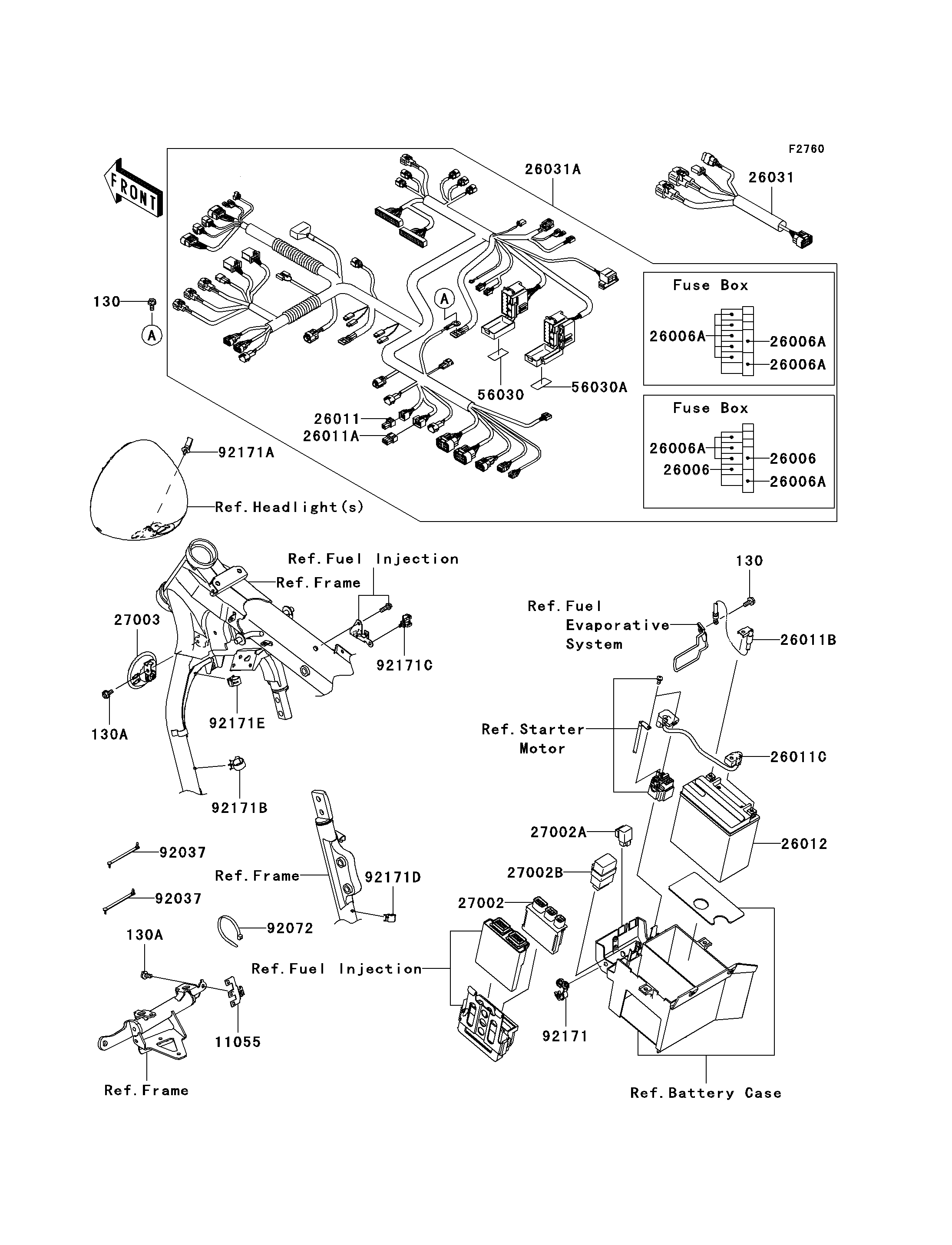

2010 Vulcan® 1700 Classic LT - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
11055
26006
26006
26006A
26006A
26006A
26006A
26006A
26011
26011A
26011B
26011C
26012
26031
26031A
27002
27002A
27002B
27003
56030
56030A
92037
92037
92072
92171
92171A
92171B
92171C
92171D
92171E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 2
BOLT-FLANGED,6X12 130A 130BB0612 2
BRACKET,CONNECTOR 11055 11055-0613 1
FUSE,15A 26006 26006-0001 2
FUSE,10A 26006A 26006-1078 11
WIRE-LEAD 26011 26011-0082 1
WIRE-LEAD 26011A 26011-0146 1
WIRE-LEAD,BATTERY(-) 26011B 26011-0180 1
WIRE-LEAD,BATTERY(+) 26011C 26011-0217 1
BATTERY,MF,FTZ16-BS,12V 18AH 26012 26012-1371 1
HARNESS,RR,SUB 26031 26031-0651 1
HARNESS,MAIN 26031A 26031-0714 1
RELAY-ASSY 27002 27002-0007 1
RELAY-ASSY 27002A 27002-1062 1
RELAY-ASSY,SIGNAL LAMP 27002B 27002-1113 1
HORN 27003 27003-0055 1
LABEL,FUSE BOX 56030 56030-0217 1
LABEL,FUSE BOX 56030A 56030-0291 1
CLAMP,SPEED,L=80.5 92037 92037-1903 2
BAND,L=202 92072 92072-1195 1
CLAMP,CLIP,DIA=20 92171 92171-0068 1
CLAMP,DIA=20 92171A 92171-0069 1
CLAMP,DIA=20 92171B 92171-0081 1
CLAMP,DIA=13 92171C 92171-1415 1
CLAMP,DIA=10 92171D 92171-1423 1
CLAMP,DIA=15 92171E 92171-1424 1
