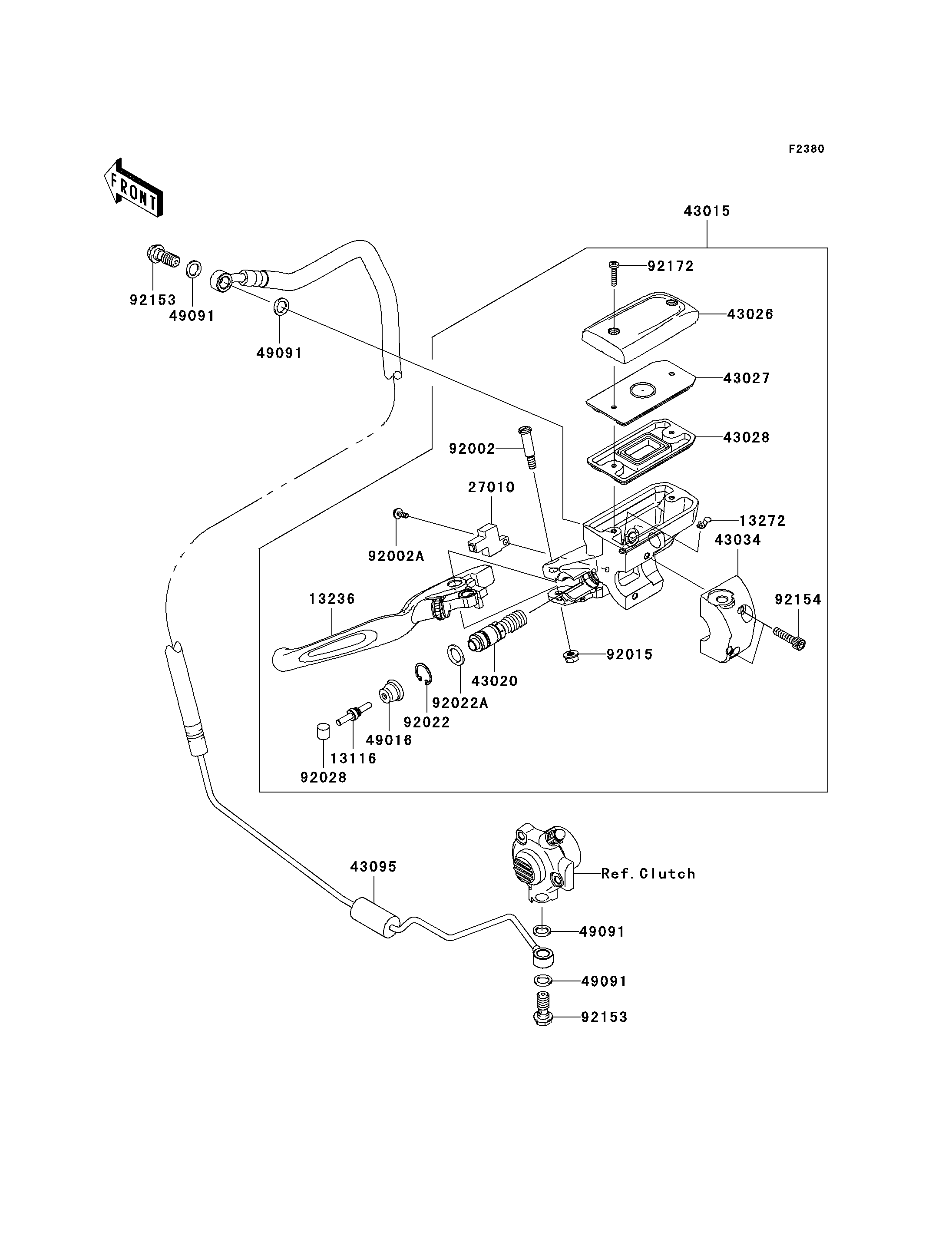

2010 Vulcan® 1700 Classic LT - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13116
13236
13272
27010
43015
43020
43026
43027
43028
43034
43095
49016
49091
49091
49091
49091
92002
92002A
92015
92022
92022A
92028
92153
92153
92154
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-PUSH 13116 13116-0031 1
LEVER-COMP,CLUTCH 13236 13236-0167 1
PLATE 13272 13272-0573 1
SWITCH,CLUTCH 27010 27010-0103 1
CYLINDER-ASSY-MASTER,CLUTCH 43015 43015-0132 1
PISTON-COMP-BRAKE,CLUTCH 43020 43020-1055 1
CAP-BRAKE 43026 43026-0015 1
PLATE-DIAPHRAGM 43027 43027-0004 1
DIAPHRAGM 43028 43028-0010 1
HOLDER-BRAKE 43034 43034-0040 1
HOSE-BRAKE,CLUTCH 43095 43095-0546 1
COVER-SEAL 49016 49016-0056 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,LEVER SET,BLACK 92002 92002-1322 1
BOLT,SCREW,4X12 92002A 92002-1323 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
CIRCLIP 92022 92022-1605 1
WASHER,PISTON 92022A 92022-1606 1
BUSHING,MASTER CYLINDER 92028 92028-1310 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,SOCKET 92154 92154-0167 2
SCREW,4MM 92172 92172-0385 2
