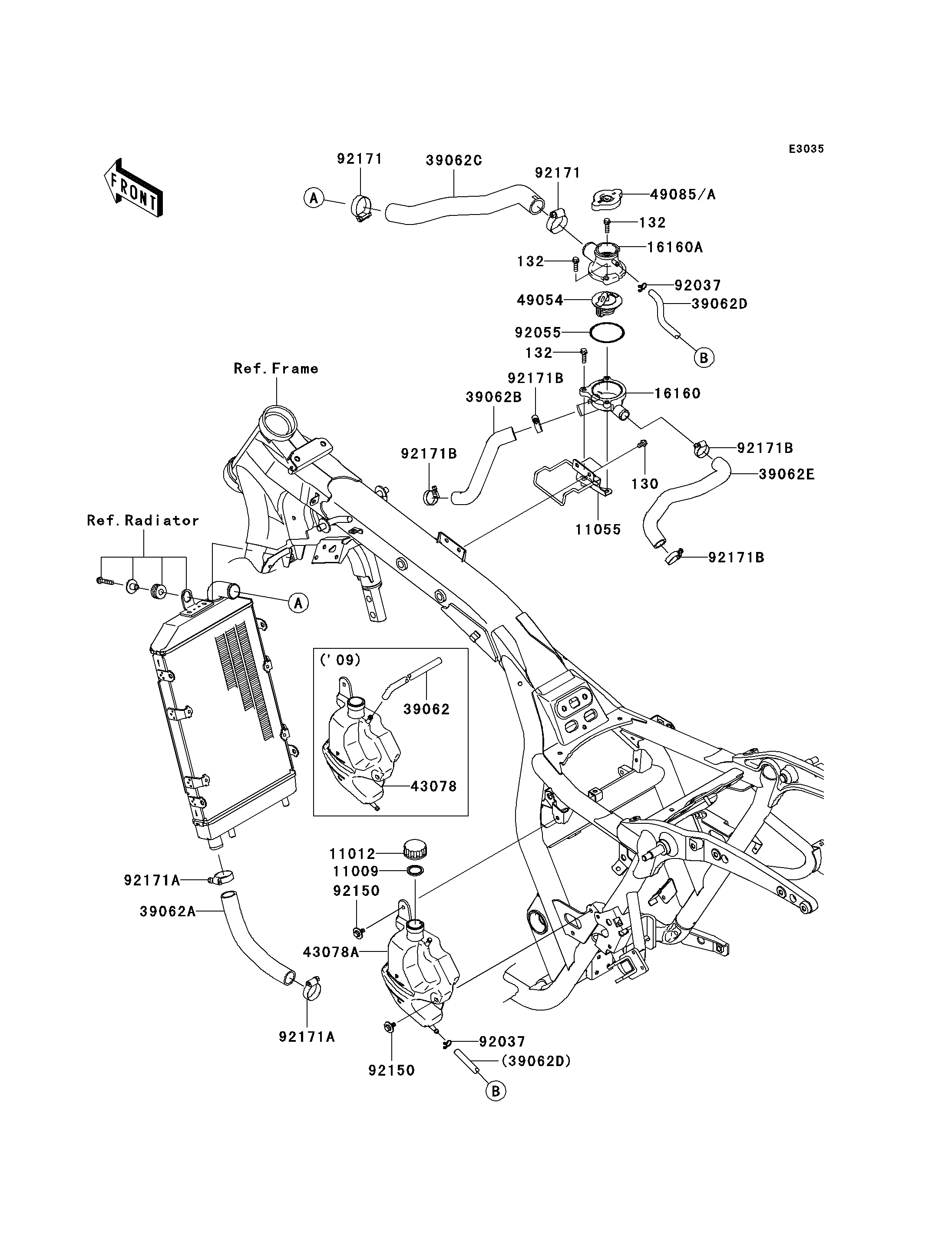

2010 Vulcan® 1700 Classic LT - Cooling

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
132
11009
11012
11055
16160
16160A
39062A
39062B
39062C
39062D
39062E
43078A
49054
49085A
92037
92037
92055
92150
92150
92171
92171
92171A
92171A
92171B
92171B
92171B
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED-SMALL,6X20 132 132BA0620 3
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET,THERMOCASE 11055 11055-0571 1
BODY,LWR 16160 16160-0158 1
BODY,UPP 16160A 16160-1152 1
HOSE-COOLING,RAD-W/P IN PIPE 39062A 39062-0244 1
HOSE-COOLING,FR HEAD-THERMO 39062B 39062-0245 1
HOSE-COOLING,THERMO-RAD 39062C 39062-0247 1
HOSE-COOLING 39062D 39062-0291 1
HOSE-COOLING,RR HEAD-THERMO 39062E 39062-0315 1
RESERVOIR 43078A 43078-0067 1
THERMOSTAT 49054 49054-1067 1
CAP-ASSY-PRESSURE 49085A 49085-1078 1
CLAMP,TUBE 92037 92037-147 2
RING-O,53.5X2.6 92055 92055-112 1
BOLT,FLANGED,6X14,WASHER 92150 92150-1392 2
CLAMP 92171 92171-0179 2
CLAMP 92171A 92171-0261 2
CLAMP 92171B 92171-0338 4
