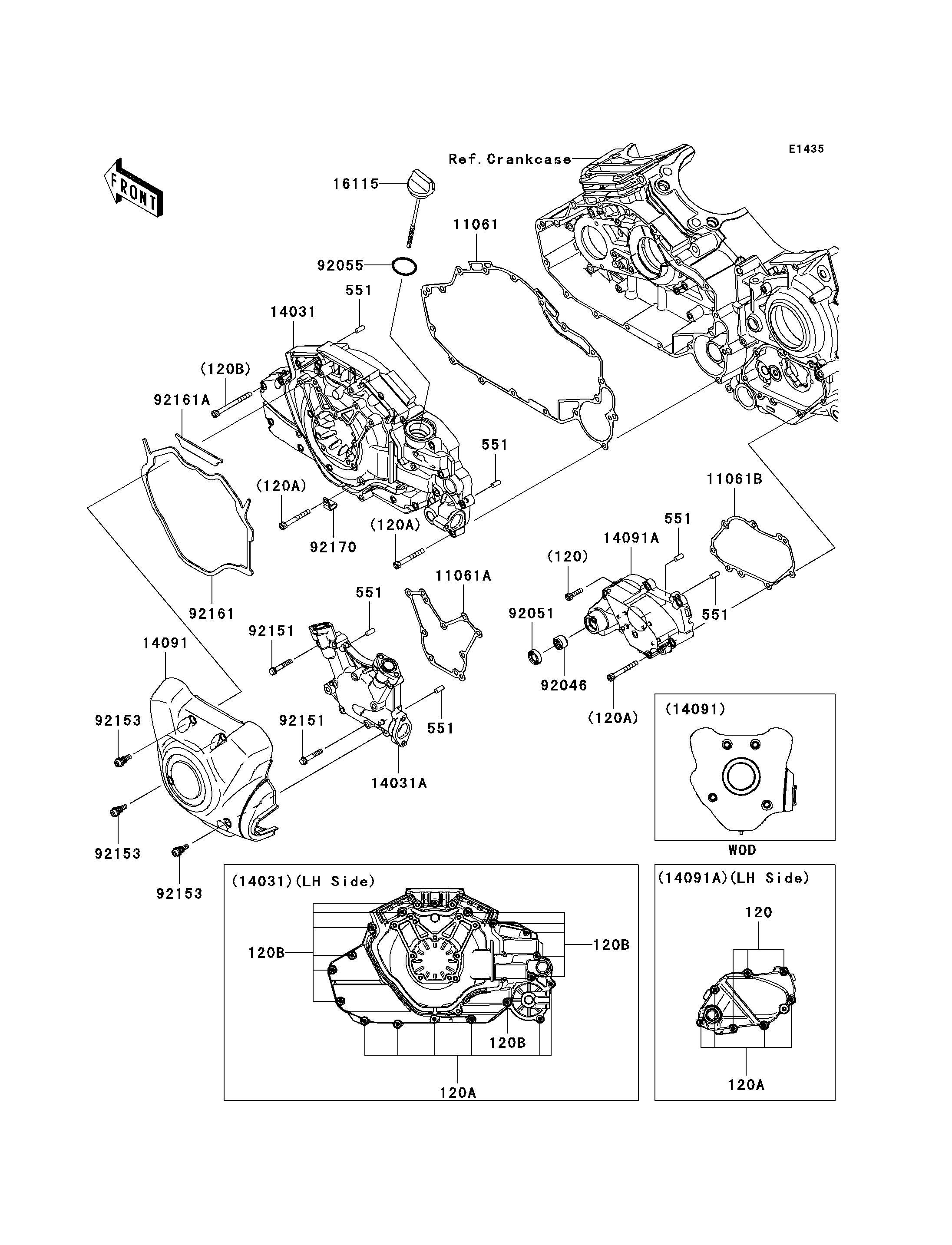

2010 Vulcan® 1700 Classic LT - Left Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120A
120A
120B
120B
120B
551
551
551
551
551
551
11061
11061A
11061B
14031
14031A
14091
14091A
16115
92046
92051
92055
92151
92151
92153
92153
92153
92161
92161A
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X22 120 120CC0622 3
BOLT-SOCKET,6X50 120A 120CC0650 10
BOLT-SOCKET,6X70 120B 120CC0670 12
PIN-DOWEL,6X14 551 551A0614 6
GASKET,GENERATOR COVER,IN 11061 11061-0338 1
GASKET,GENERATOR COVER,MID 11061A 11061-0339 1
GASKET,CHANGE COVER 11061B 11061-0340 1
COVER-GENERATOR,INNER 14031 14031-0093 1
COVER-GENERATOR,MIDDLE 14031A 14031-0094 1
COVER,GENERATOR,OUTER 14091 14091-1690 1
COVER,CHANGE 14091A 14091-1807 1
CAP-OIL FILLER 16115 16115-0019 1
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,31.7X2.4 92055 92055-049 1
BOLT,6X35 92151 92151-1624 9
BOLT,SOCKET,6X22 92153 92153-1331 4
DAMPER 92161 92161-0668 1
DAMPER 92161A 92161-0672 1
CLAMP 92170 92170-1577 1
