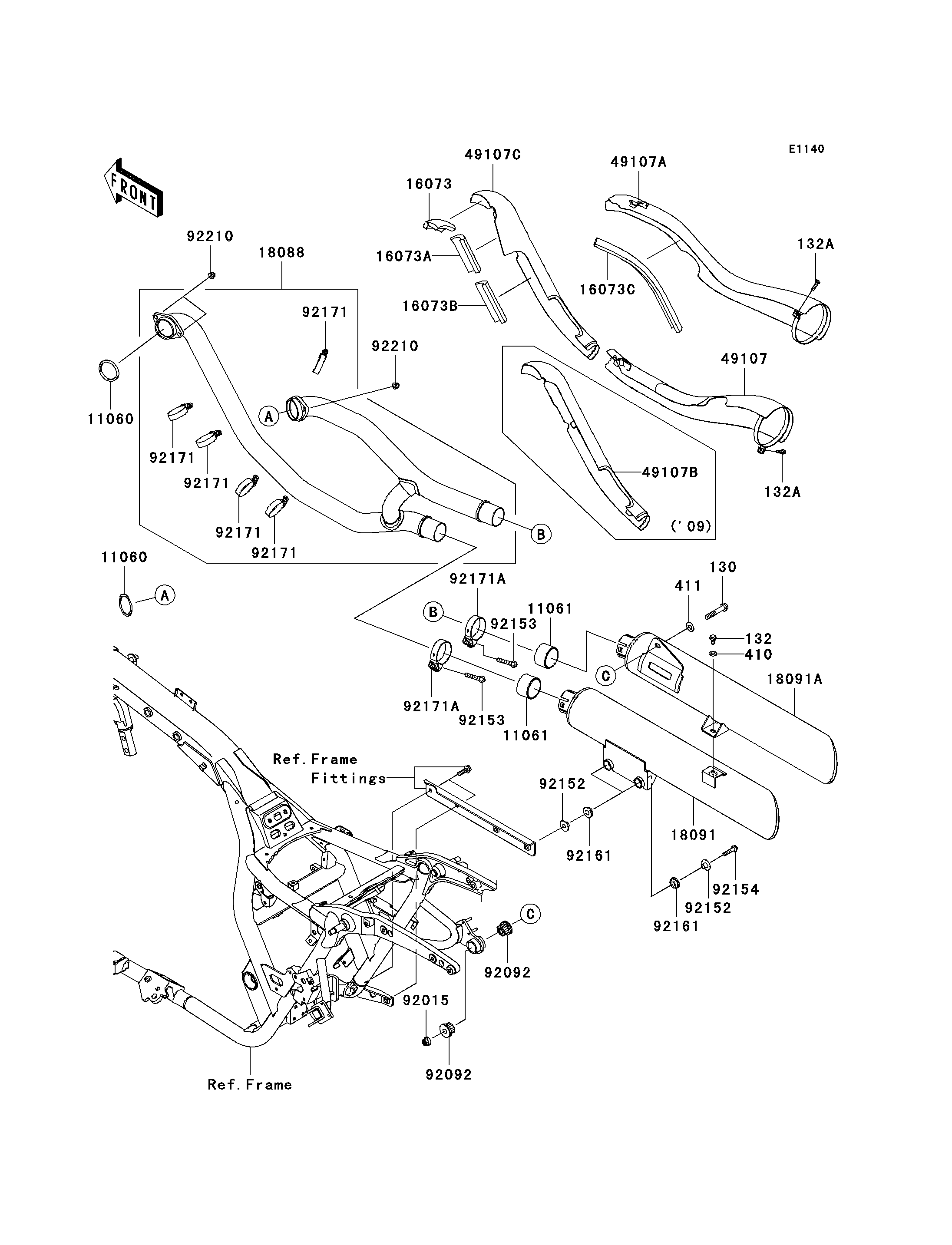

2010 Vulcan® 1700 Classic LT - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
130
132
132A
132A
410
411
11060
11060
11061
11061
16073
16073A
16073B
16073C
18088
18091
18091A
49107
49107A
49107C
92015
92092
92092
92152
92152
92153
92153
92154
92161
92161
92171
92171
92171
92171
92171
92171A
92171A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X55 130 130BB1055 1
BOLT-FLANGED-SMALL,8X14 132 132BB0814 1
BOLT-FLANGED-SMALL,6X20 132A 132BC0620 2
WASHER-PLAIN-SMALL,8MM,BLACK 410 410AB0800 1
WASHER-PLAIN,10MM,BLACK 411 411AB1000 1
GASKET,EXHAUST PIPE 11060 11060-1119 2
GASKET,MUFFLER CONNECTING 11061 11061-0240 2
INSULATOR 16073 16073-0125 1
INSULATOR 16073A 16073-0126 1
INSULATOR 16073B 16073-0127 1
INSULATOR 16073C 16073-0128 1
PIPE-EXHAUST 18088 18088-0456 1
BODY-COMP-MUFFLER,LWR 18091 18091-0538 1
BODY-COMP-MUFFLER,UPP 18091A 18091-0539 1
COVER-EXHAUST PIPE,FR-R 49107 49107-0139 1
COVER-EXHAUST PIPE,RR 49107A 49107-0140 1
COVER-EXHAUST PIPE,FR-F 49107C 49107-0174 1
NUT,FLANGED,10MM 92015 92015-077 1
BUSHING-RUBBER,MUFFLER 92092 92092-1013 2
COLLAR,8.8X12X10.6 92152 92152-0082 4
BOLT,8X45 92153 92153-0702 2
BOLT,FLANGED,8X32 92154 92154-0136 2
DAMPER 92161 92161-0135 4
CLAMP 92171 92171-0072 5
CLAMP 92171A 92171-0358 2
NUT,CAP,8MM 92210 92210-1132 4
