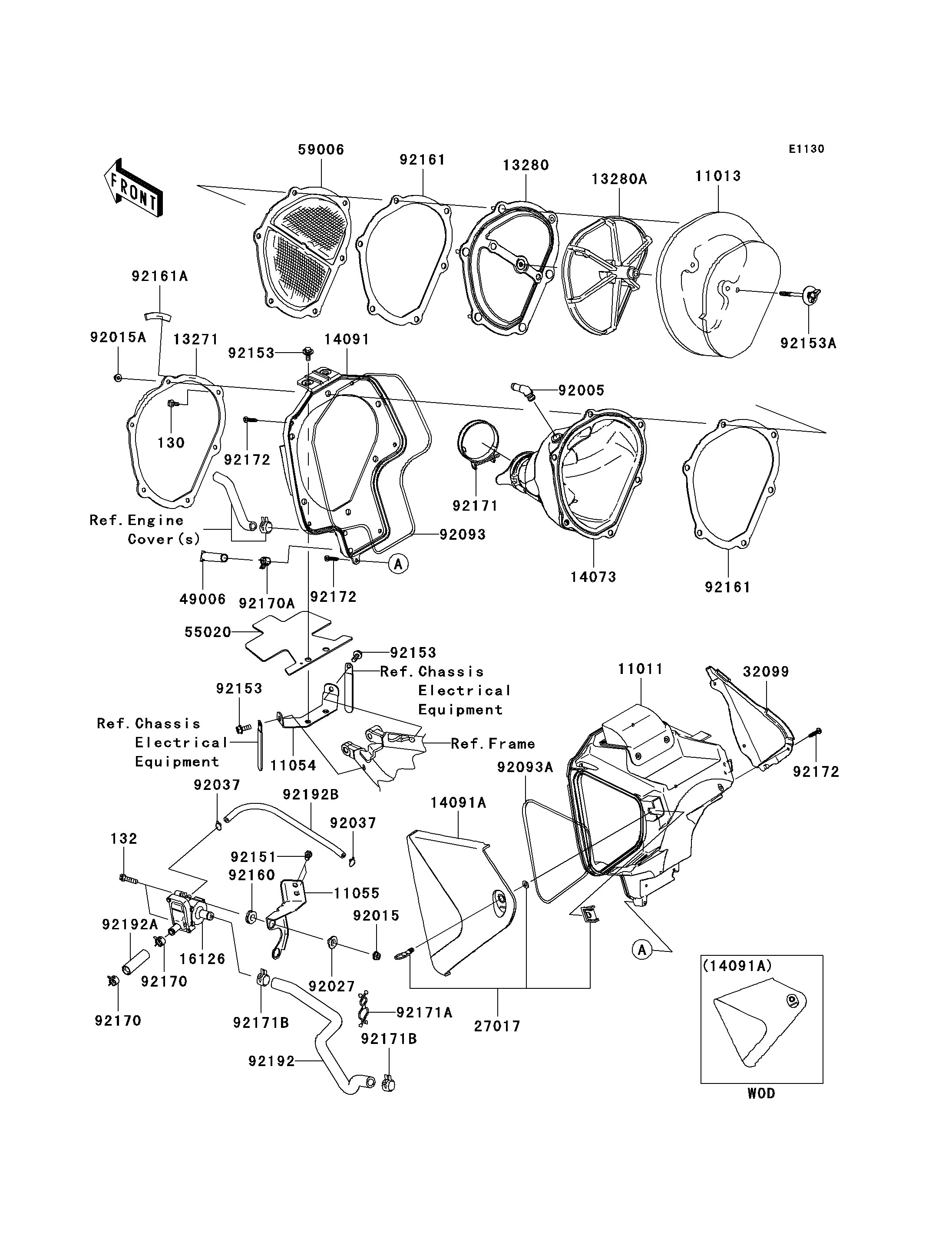

2008 KLX®450R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
130
132
11011
11013
11054
11055
13271
13280
13280A
14073
14091
14091A
16126
27017
32099
49006
55020
59006
92005
92015
92015A
92027
92037
92037
92093
92093A
92151
92153
92153
92153
92153A
92160
92161
92161
92161A
92170
92170
92170A
92171
92171A
92171B
92171B
92172
92172
92172
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X12 130 130BA0512 1
BOLT-FLANGED-SMALL,6X25 132 132BA0625 2
CASE-AIR FILTER,F.BLACK 11011 11011-0106-6Z 1
ELEMENT-AIR FILTER 11013 11013-0019 1
BRACKET,A/C BOX 11054 11054-1100 1
BRACKET,ASV 11055 11055-0030 1
PLATE,DUCT FITTING 13271 13271-0730 1
HOLDER,DUCT 13280 13280-0217 1
HOLDER,ELEMENT 13280A 13280-0218 1
DUCT,FUNNEL 14073 14073-0175 1
COVER,F.BLACK 14091 14091-0710-6Z 1
COVER,LH,BLACK/WHITE 14091A 14091-0862-17Y 1
VALVE,AIR SWITCHING 16126 16126-0030 1
LOCK 27017 27017-0007 1
CASE,F.BLACK 32099 32099-0028-6Z 1
BOOT 49006 49006-0061 1
GUARD 55020 55020-0391 1
ARRESTER-FLAME 59006 59006-0011 1
FITTING 92005 92005-0069 1
NUT,FLANGED,6MM 92015 92015-1193 2
NUT,FLANGED,5MM 92015A 92015-1259 5
COLLAR,L=7.4 92027 92027-1848 2
CLAMP 92037 92037-1610 2
SEAL,FR COVER 92093 92093-0074 1
SEAL,LH COVER 92093A 92093-0075 1
BOLT,FLANGED,6X10 92151 92151-1233 2
BOLT,6X16 92153 92153-0863 4
BOLT,6X65 92153A 92153-1756 1
DAMPER 92160 92160-1278 2
DAMPER 92161 92161-0213 2
DAMPER 92161A 92161-0350 1
CLAMP 92170 92170-1491 2
CLAMP 92170A 92170-1938 1
CLAMP,DUCT,62MM 92171 92171-0651 1
CLAMP,PURSE LOCK 92171A 92171-0965 1
CLAMP 92171B 92171-1441 2
SCREW,TAPPING,5X20 92172 92172-0009 7
TUBE,ASV-A/C 92192 92192-0410 1
TUBE,ASV-PIPE 92192A 92192-0411 1
TUBE,ASV-INMANI 92192B 92192-0412 1
