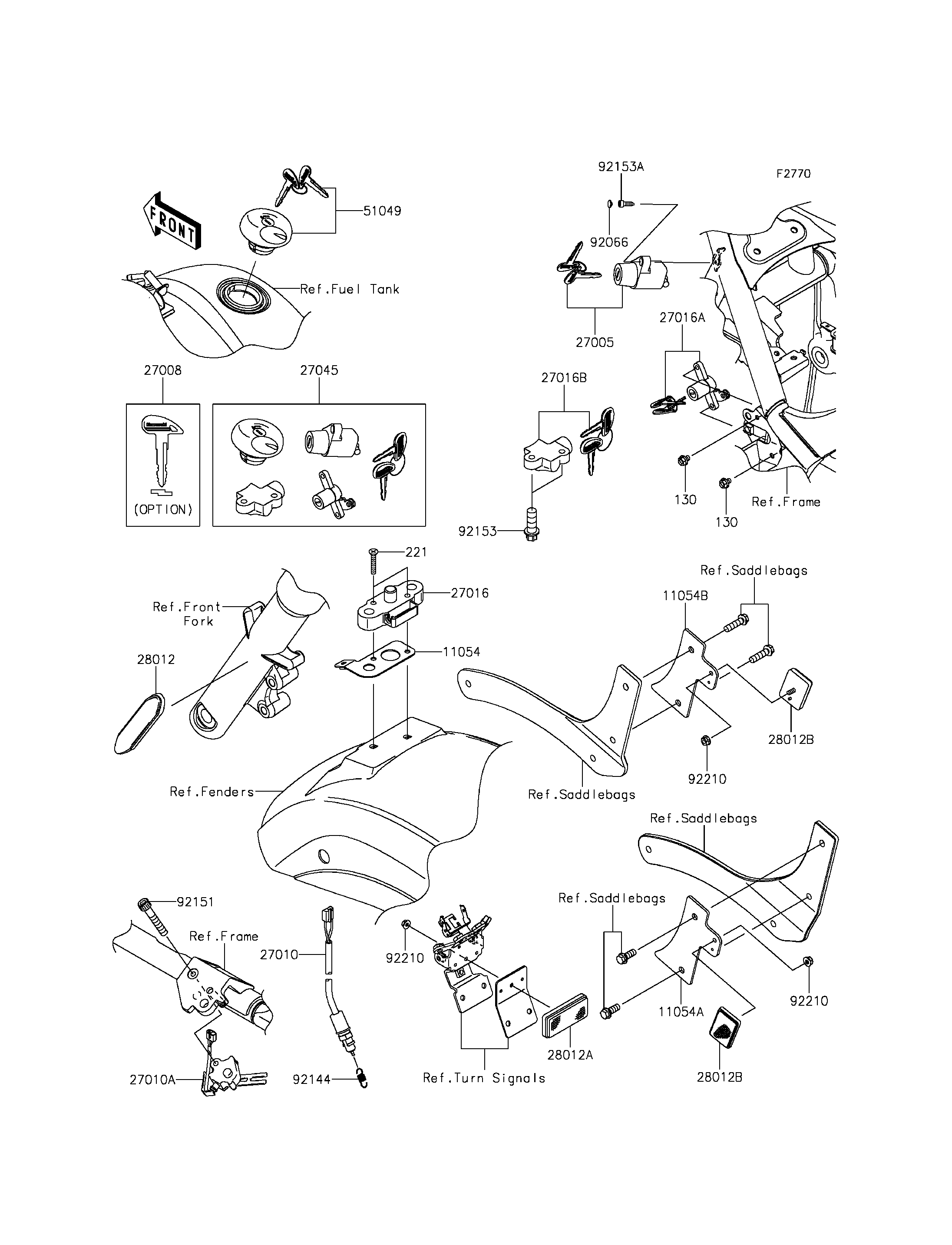

2011 VULCAN® 900 CLASSIC LT - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
130
130
221
11054
11054A
11054B
27005
27008
27010
27010A
27016
27016A
27016B
27045
28012
28012A
28012B
28012B
51049
92066
92144
92151
92153
92153A
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130BB0608 2
SCREW-CSK-CROS,6X35 221 221AB0635 2
BRACKET,SEAT LOCK 11054 11054-0492 1
BRACKET,REFLECTOR,RR,LH 11054A 11054-0809 1
BRACKET,REFLECTOR,RR,RH 11054B 11054-0810 1
SWITCH-ASSY-IGNITION 27005 27005-0032 1
KEY-LOCK,BLANK 27008 27008-0042 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-0050 1
SWITCH,SIDE STAND 27010A 27010-1470 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1098 1
LOCK-ASSY,SEAT 27016A 27016-5341 1
LOCK-ASSY,STEERING 27016B 27016-5342 1
SWITCH-ASSY 27045 27045-5323 1
REFLECTOR-REFLEX 28012 28012-0019 2
REFLECTOR-REFLEX 28012A 28012-1077 1
REFLECTOR-REFLEX 28012B 28012-1088 2
CAP-TANK,FUEL 51049 51049-5001 1
PLUG 92066 92066-1543 1
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
BOLT,SOCKET,6X35 92151 92151-1390 1
BOLT,TORX,8X22 92153 92153-1273 2
BOLT,SOCKET,5X16 92153A 92153-1685 1
NUT,FLANGED,5MM 92210 92210-0007 3
