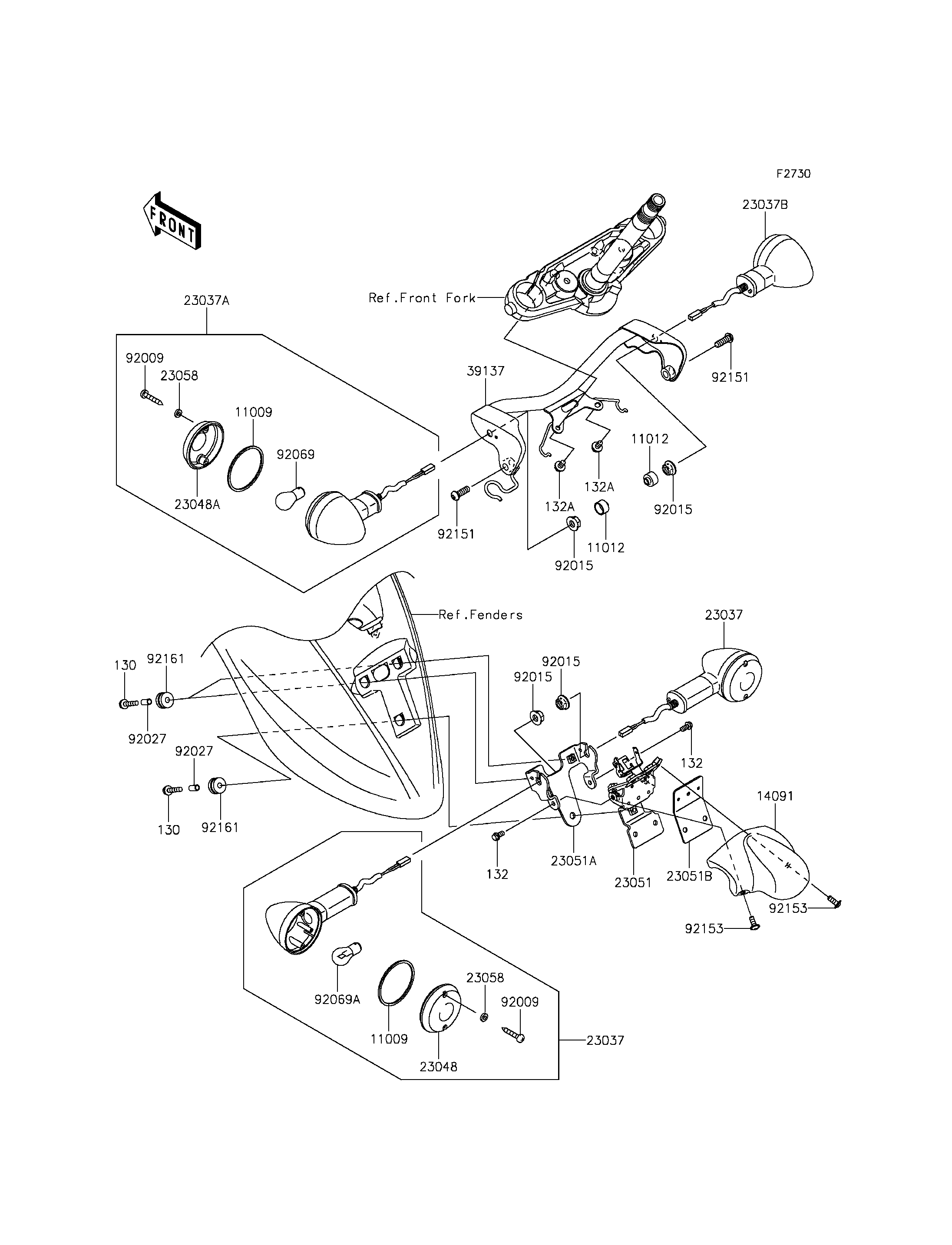

2011 VULCAN® 900 CLASSIC LT - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132
132A
132A
11009
11009
11012
11012
14091
23037
23037
23037A
23037B
23048
23048A
23051
23051A
23051B
23058
23058
39137
92009
92009
92015
92015
92015
92015
92027
92027
92069
92069A
92151
92151
92153
92153
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130CA0630 3
BOLT-FLANGED-SMALL,6X12 132 132BB0612 2
BOLT-FLANGED-SMALL,6X12 132A 132E0612 2
GASKET,SIGNAL LAMP 11009 11009-1413 4
CAP 11012 11012-1367 2
COVER 14091 14091-0525 1
LAMP-ASSY-SIGNAL,RR 23037 23037-0087 2
LAMP-ASSY-SIGNAL,FR,LH 23037A 23037-0107 1
LAMP-ASSY-SIGNAL,FR,RH 23037B 23037-0108 1
LENS-SIGNAL LAMP 23048 23048-1065 2
LENS-SIGNAL LAMP 23048A 23048-1066 2
BRACKET-SIGNAL LAMP,RR,LWR 23051 23051-0020 1
BRACKET-SIGNAL LAMP,RR,UPP 23051A 23051-0021 1
BRACKET-SIGNAL LAMP,RR 23051B 23051-0022 1
WASHER,PLAIN,4MM 23058 23058-002 8
STAY-COMP,FR SIGNAL LAMP 39137 39137-0019 1
SCREW,TAPPING,4X25 92009 92009-1637 8
NUT,10MM 92015 92015-1356 4
COLLAR,6.8X10X15 92027 92027-1941 3
BULB,12V 21/5W 92069 92069-063 2
BULB,12V 21W 92069A 2 (LOCAL PROCUREMENT ITEM)
BOLT,SOCKET,8X25 92151 92151-1327 2
BOLT,SOCKET,6X16 92153 92153-0817 2
DAMPER 92161 92161-0163 3
