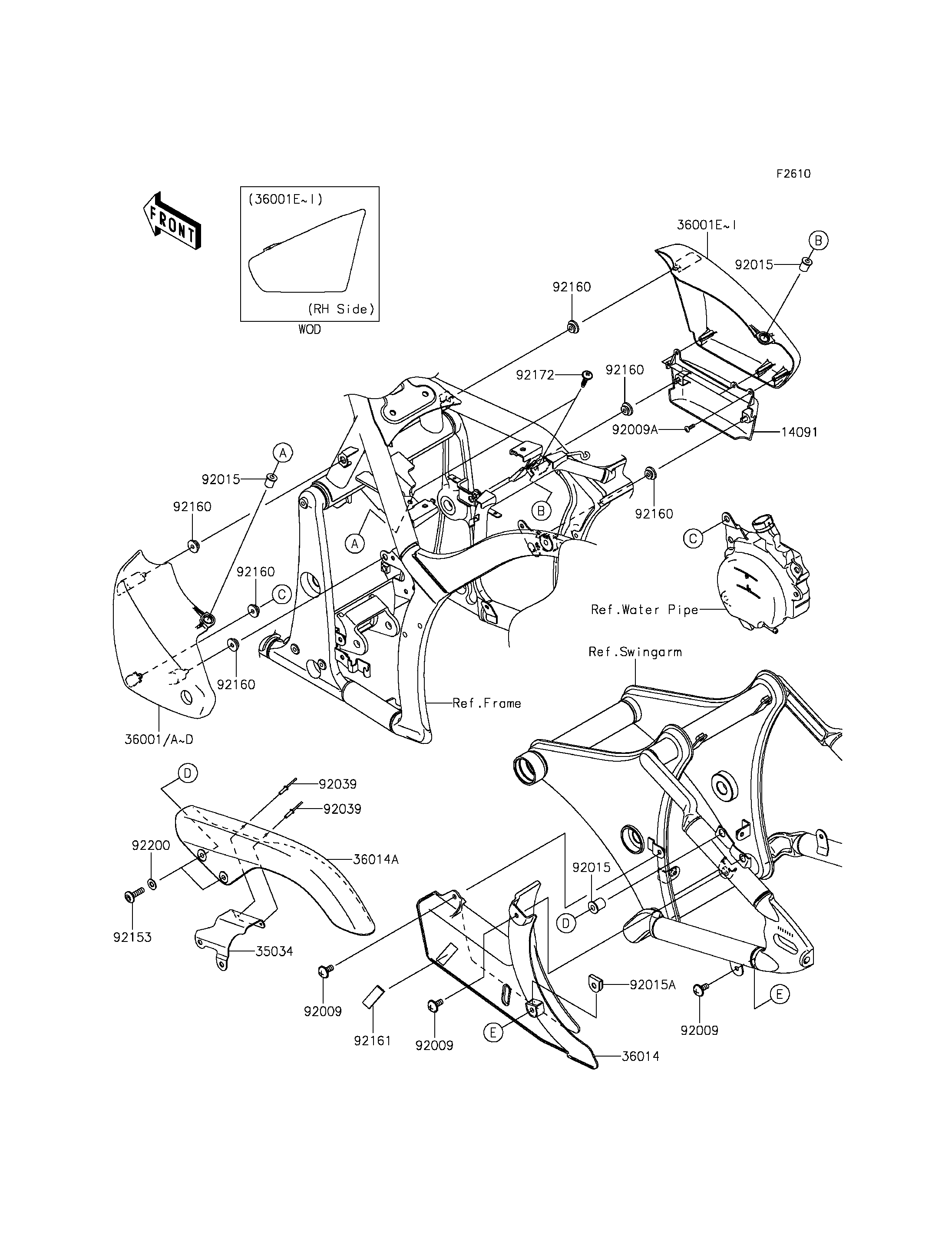

2011 VULCAN® 900 CLASSIC LT - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
14091
35034
36001
36001A
36001E
36001F
36014
36014A
92009
92009
92009
92009A
92015
92015
92015
92015A
92039
92039
92153
92160
92160
92160
92160
92160
92160
92161
92172
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE COVER,RH 14091 14091-0641 1
REINFORCE 35034 35034-0082 1
COVER-SIDE,LH,M.N.BLUE 36001 36001-0081-C6 1
COVER-SIDE,LH,EBONY 36001A 36001-0081-H8 1
COVER-SIDE,RH,M.N.BLUE 36001E 36001-0082-C6 1
COVER-SIDE,RH,EBONY 36001F 36001-0082-H8 1
CASE-CHAIN,LWR 36014 36014-0031 1
CASE-CHAIN,UPP 36014A 36014-0032 1
SCREW,6X14 92009 92009-1662 3
SCREW,TAPPING,4X14 92009A 92009-1792 3
NUT 92015 92015-1700 4
NUT,CLIP,6MM 92015A 92015-1904 1
RIVET 92039 92039-1251 2
BOLT,SOCKET,6X22 92153 92153-1356 2
DAMPER 92160 92160-1613 6
DAMPER 92161 92161-0124 1
SCREW,6X26 92172 92172-0137 2
WASHER,6.5X14X1 92200 92200-1388 2
