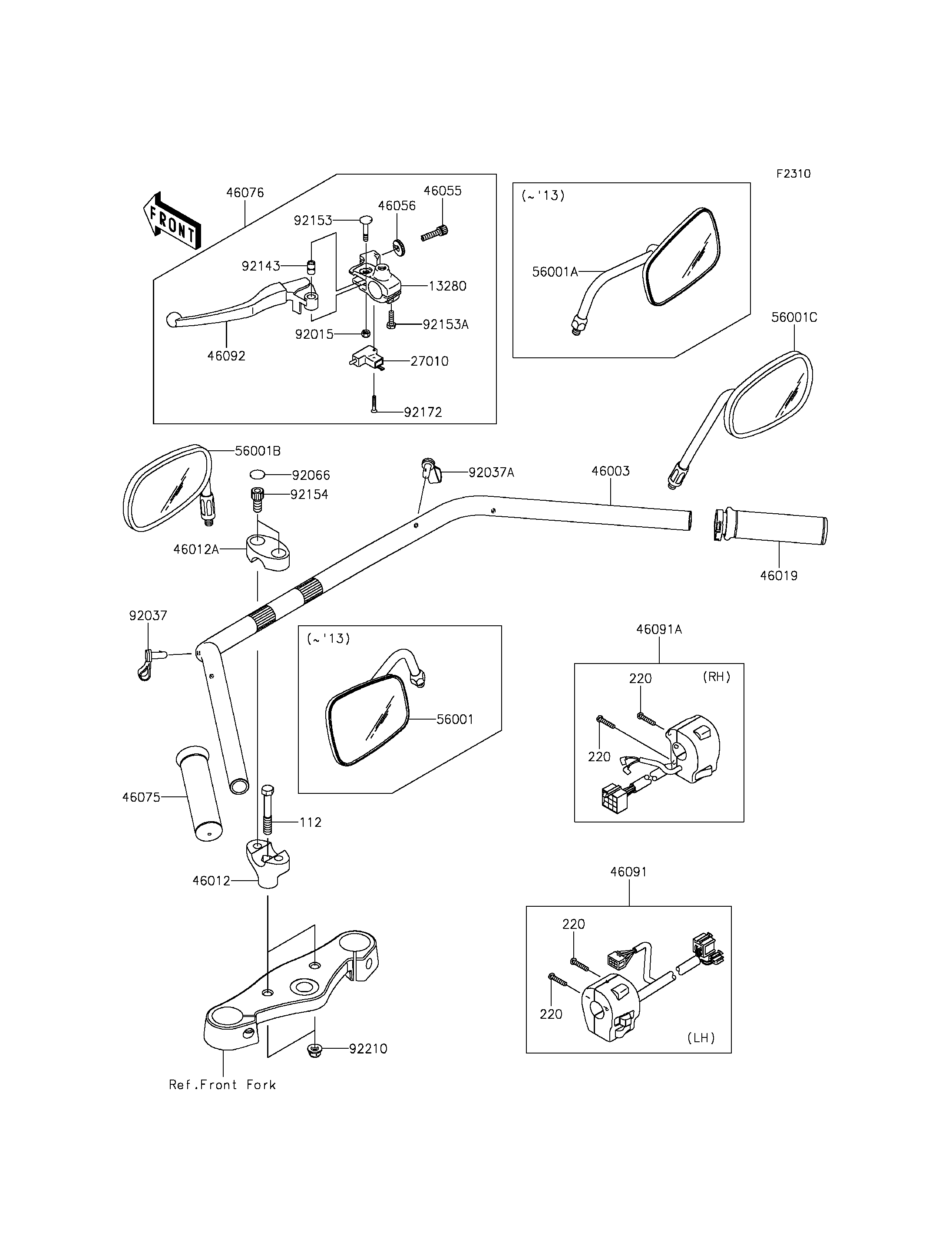

2011 VULCAN® 900 CLASSIC LT - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
220
220
220
220
13280
27010
46003
46012
46012A
46019
46055
46056
46075
46076
46091
46091A
46092
56001
56001A
92015
92037
92037A
92066
92143
92153
92153A
92154
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,10X65 112 112BA1065 2
SCREW-PAN-CROS,5X25 220 220R0525 4
HOLDER,CLUTCH LEVER 13280 13280-1101 1
SWITCH,CLUTCH 27010 27010-1268 1
HANDLE 46003 46003-0155 1
HOLDER-HANDLE,LWR 46012 46012-0085 2
HOLDER-HANDLE,UPP 46012A 46012-1273 2
GRIP-ASSY,THROTTLE 46019 46019-1123 1
SCREW,CABLE ADJUST,8MM 46055 46055-003 1
NUT,CABLE ADJUST LOCK,8MM 46056 46056-005 1
GRIP,LH 46075 46075-1212 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0075 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0230 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0231 1
LEVER-GRIP,CLUCTH 46092 46092-1204 1
MIRROR-ASSY,LH 56001 56001-0063 1
MIRROR-ASSY,RH 56001A 56001-0064 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
CLAMP,SPEED,L=58 92037 92037-1163 3
CLAMP,SPEED,L=80.5 92037A 92037-1903 1
PLUG 92066 92066-1285 4
COLLAR 92143 92143-1351 1
BOLT,LEVER SET 92153 92153-0716 1
BOLT,6X20 92153A 92153-0721 1
BOLT,SOCKET,10X25 92154 92154-0350 4
SCREW,3X20 92172 92172-0164 1
NUT,LOCK,FLANGED,10MM 92210 92210-1139 2
