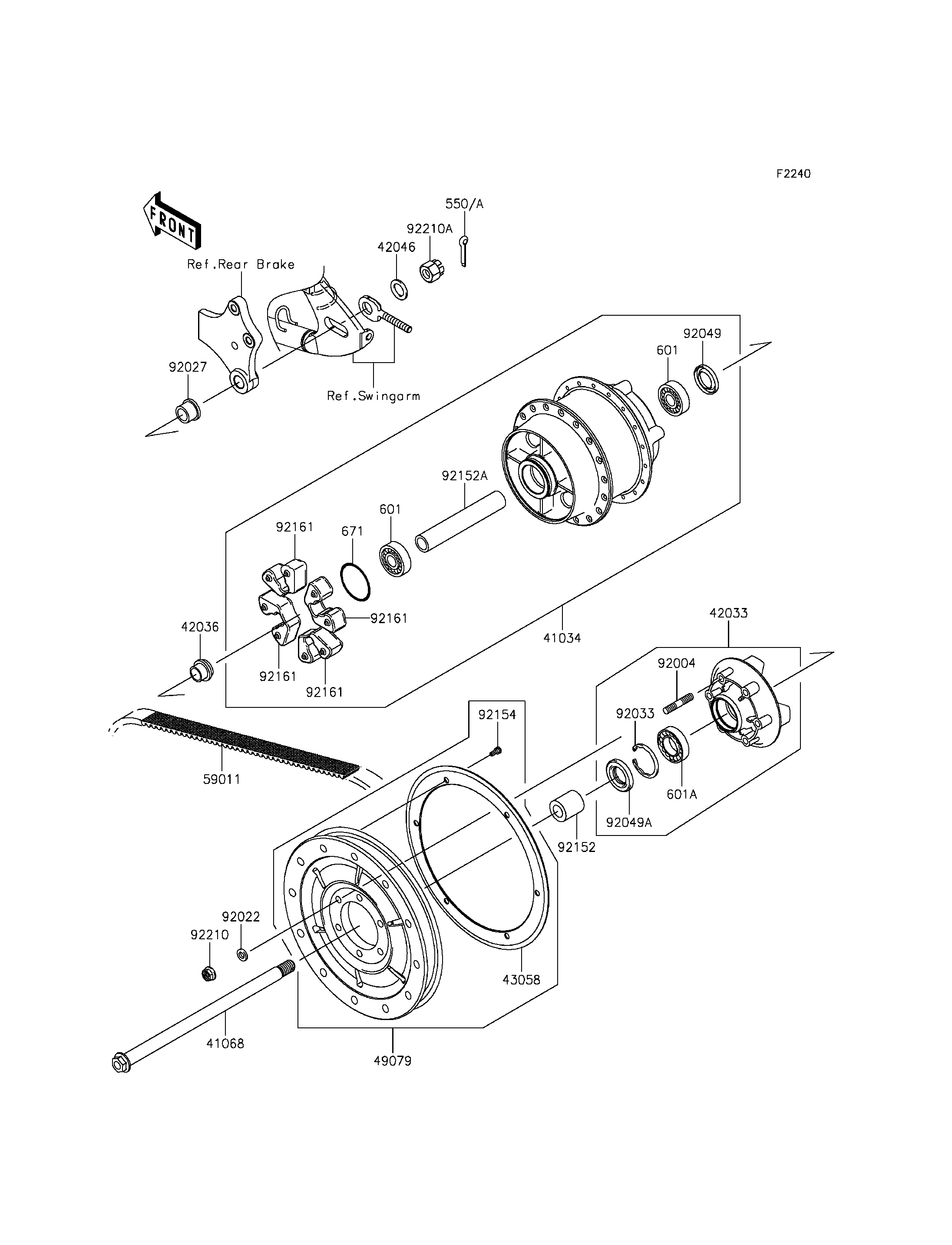

2011 VULCAN® 900 CLASSIC LT - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
550
601
601
601A
671
41034
41068
42033
42036
42046
43058
49079
59011
92004
92022
92027
92033
92049
92049A
92152
92152A
92154
92161
92161
92161
92161
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 550 550AA4035 1
BEARING-BALL,6204UUC3 601 601B6204UU 2
BEARING-BALL 601A 601B6205UU 1
O RING,60MM 671 671B2560 1
DRUM-ASSY,REAR BRAKE 41034 41034-0047 1
AXLE,RR 41068 41068-0057 1
COUPLING-ASSY,RR HUB 42033 42033-0037 1
SLEEVE,RR HUB,L=23 42036 42036-1251 1
WASHER,21X33X2.6 42046 42046-003 1
RING,REAR PULLEY 43058 43058-0011 1
PULLEY-BELT 49079 49079-0011 1
BELT,DRIVE,153T 59011 59011-0021 1
STUD,10X35 92004 92004-0016 6
WASHER,10.5X19X3.2 92022 92022-1820 6
COLLAR,RR AXLE,L=21.5 92027 92027-1902 1
RING-SNAP,52MM 92033 92033-1043 1
SEAL-OIL,BJN28475 92049 92049-1056 1
SEAL-OIL 92049A 92049-1287 1
COLLAR,RR AXLE,LH,L=38.6 92152 92152-0350 1
COLLAR,REAR BRAKE DRUM,L=166.4 92152A 92152-0351 1
BOLT,FLANGED,6X12 92154 92154-0346 6
DAMPER,SHOCK,RR HUB 92161 92161-0466 4
NUT,LOCK,FLANGED,10MM 92210 92210-0276 6
NUT,CASTLE,18MM 92210A 92210-1134 1
