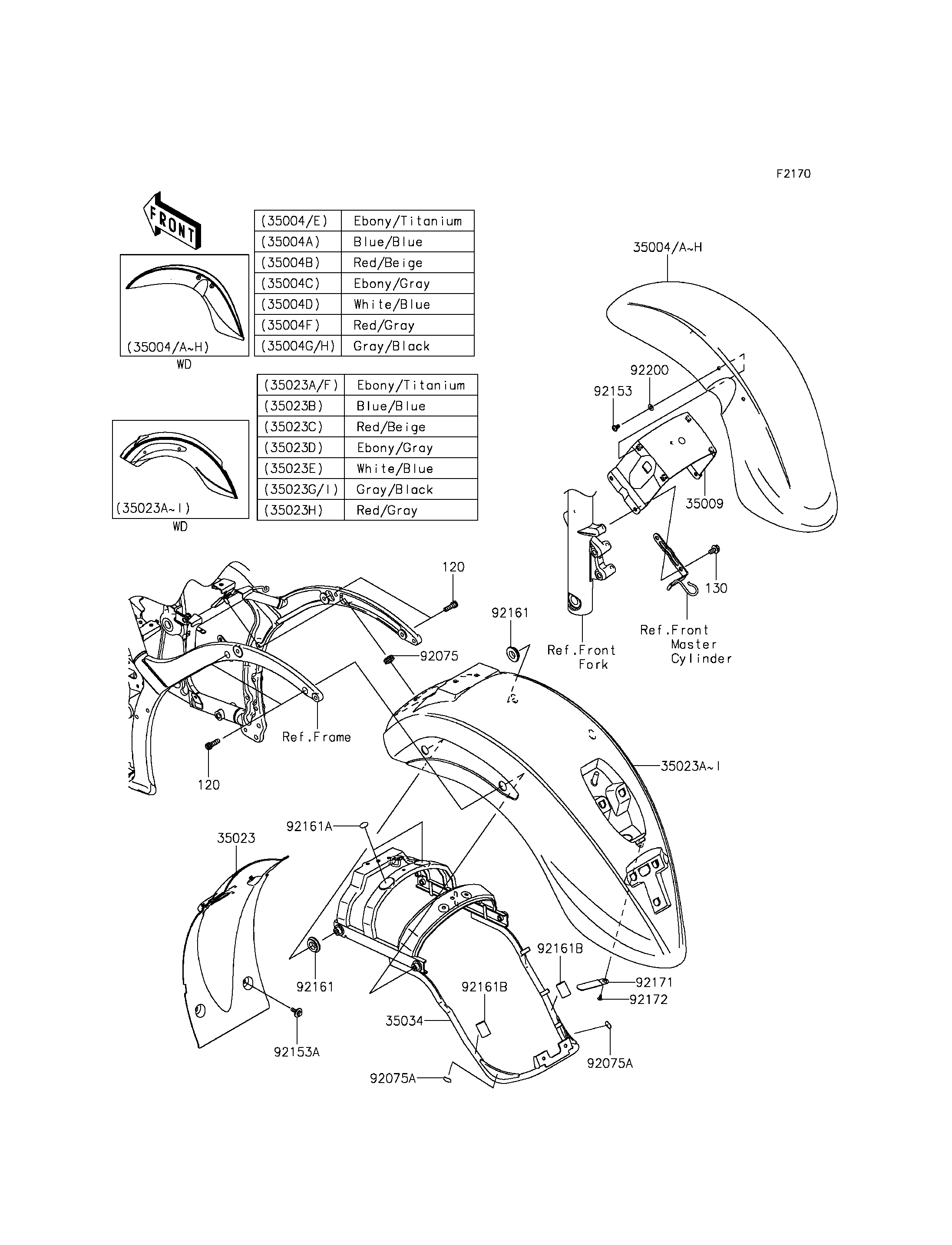

2011 VULCAN® 900 CLASSIC LT - Fenders

DOWNLOAD PDF
SELECT A NEW PART
35004
35004
35004A
35004A
35009
35009
35023
35023
35023A
35023A
35023B
35023B
35034
35034
120
120
120
120
130
130
92075
92075
92075A
92075A
92075A
92075A
92153
92153
92153A
92153A
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92171
92171
92172
92172
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,EBONY/TITANIUM 35004 35004-5351-11W 1
FENDER-FRONT,BLUE/BLUE 35004A 35004-5352-32S 1
BRACE,FRONT FENDER 35009 35009-0014 1
FENDER-REAR,INNER 35023 35023-0073 1
FENDER-REAR,EBONY/TITANIUM 35023A 35023-5177-11W 1
FENDER-REAR,BLUE/BLUE 35023B 35023-5178-32S 1
REINFORCE,REAR FENDER 35034 35034-0090 1
BOLT-SOCKET,8X25 120 120CA0825 4
BOLT-FLANGED,8X14 130 130BB0814 4
DAMPER 92075 92075-1067 1
DAMPER 92075A 92075-1841 2
BOLT,SOCKET,6X16 92153 92153-0817 4
BOLT,6X20 92153A 92153-1599 4
DAMPER 92161 92161-0375 2
DAMPER 92161A 92161-0406 2
DAMPER 92161B 92161-0459 2
CLAMP 92171 92171-0181 1
SCREW,TAPPING,4X10 92172 92172-0172 1
WASHER,6.5X14X1 92200 92200-1388 4
