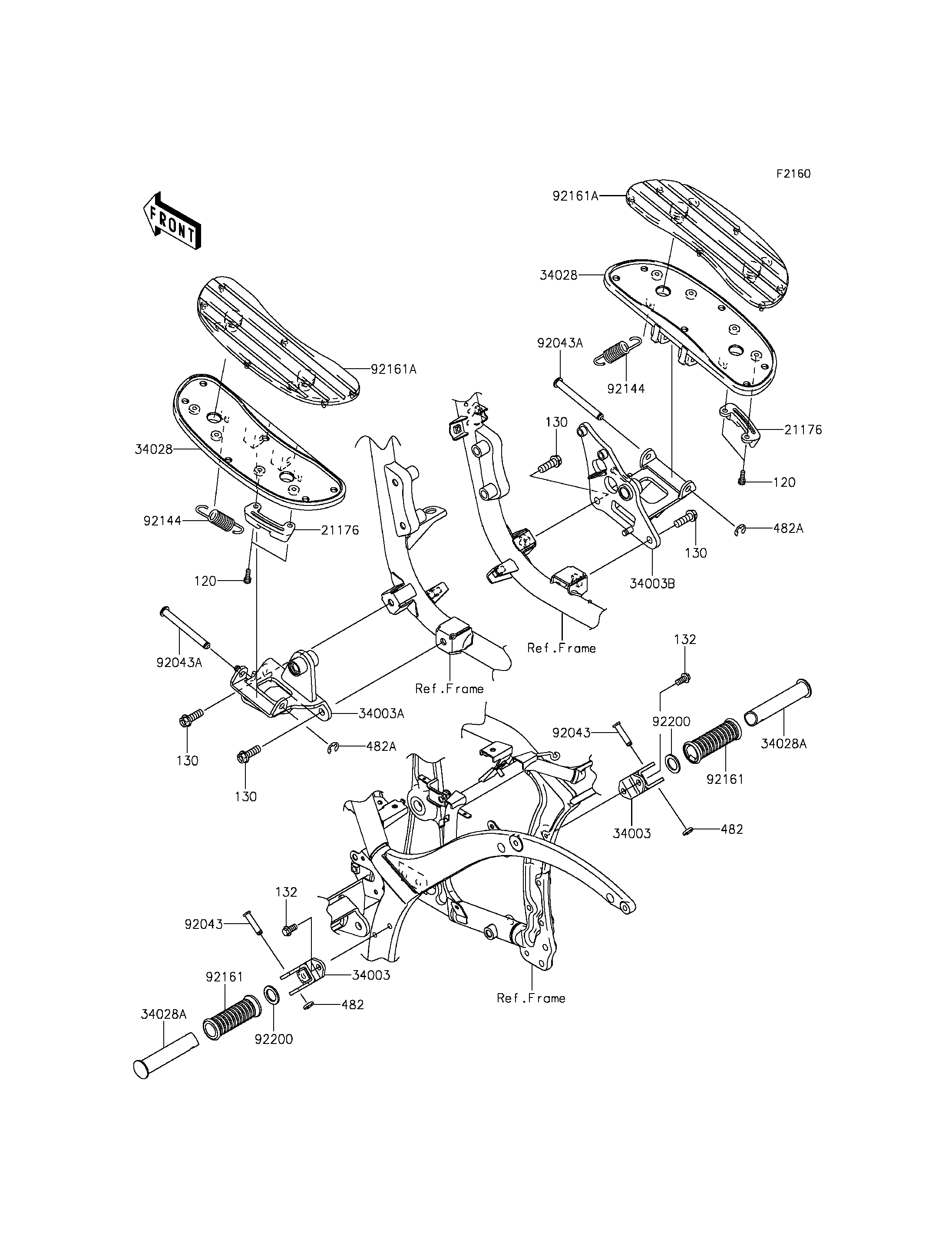

2011 VULCAN® 900 CLASSIC LT - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130
130
130
132
132
482
482
482A
482A
21176
21176
34003
34003
34003A
34003B
34028
34028
34028A
34028A
92043
92043
92043A
92043A
92144
92144
92161
92161
92161A
92161A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120CB0616 4
BOLT-FLANGED,10X30 130 130BB1030 4
BOLT-FLANGED-SMALL,8X16 132 132BB0816 4
CIRCLIP-TYPE-E 482 482EA7000 2
CIRCLIP-TYPE-E,8MM 482A 482EA8000 2
SENSOR,BANK 21176 21176-0021 2
HOLDER-STEP,RR,F.S.BLACK 34003 34003-0030-18R 2
HOLDER-STEP,FR,LH 34003A 34003-0039 1
HOLDER-STEP,FR,RH 34003B 34003-0050 1
STEP,FR 34028 34028-0011 2
STEP,RR 34028A 34028-0017 2
PIN,8X36.5 92043 92043-1339 2
PIN,10X98.5 92043A 92043-1707 2
SPRING 92144 92144-1266 2
DAMPER,STEP 92161 92161-0232 2
DAMPER,FRONT STEP 92161A 92161-1325 2
WASHER,22.5X33X2.3 92200 92200-1482 2
