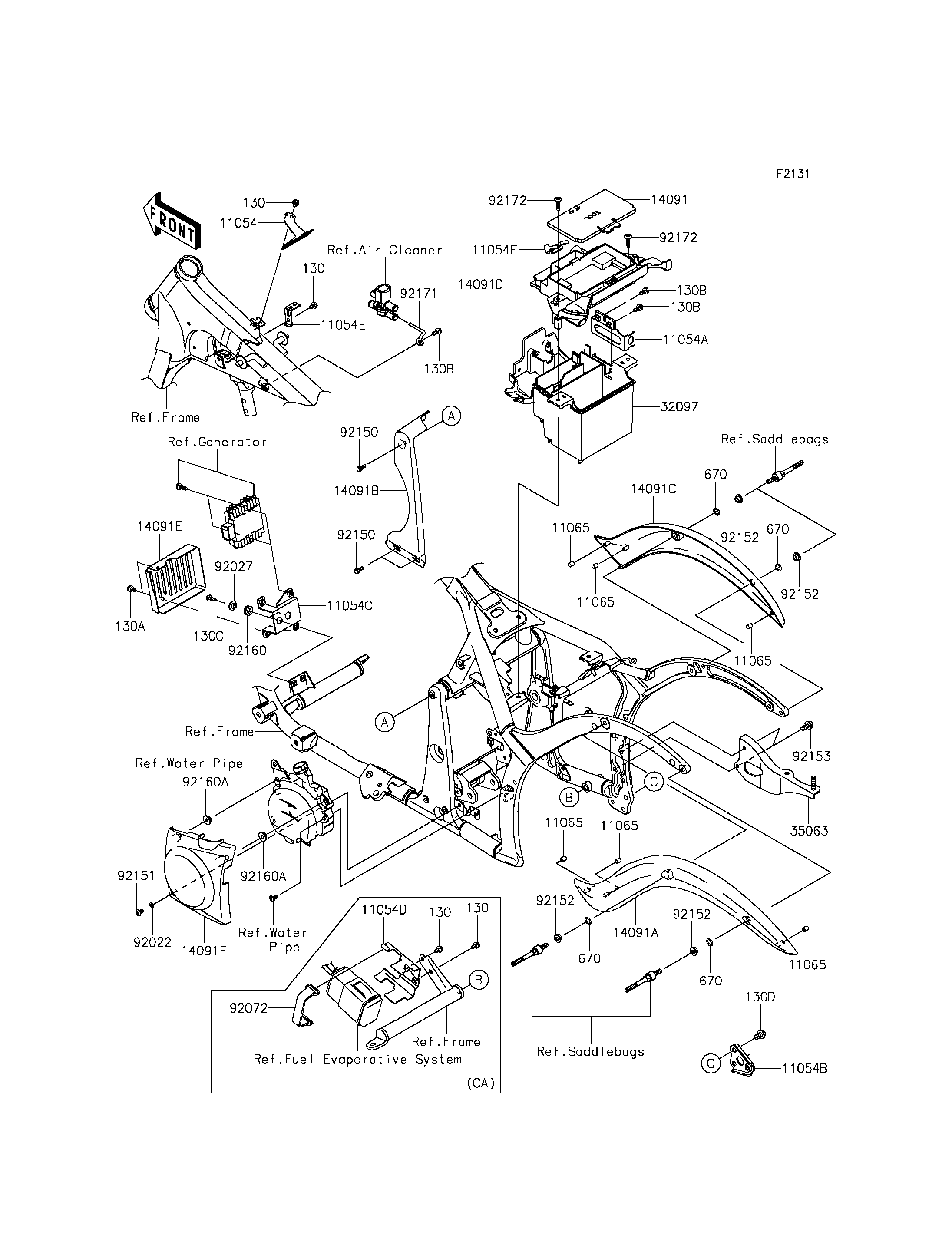

2011 VULCAN® 900 CLASSIC LT - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130A
130B
130B
130B
130C
130D
670
670
670
670
11054
11054A
11054B
11054C
11054E
11054F
11065
11065
11065
11065
11065
11065
14091
14091A
14091B
14091C
14091D
14091E
14091F
32097
35063
92022
92027
92150
92150
92151
92152
92152
92152
92152
92153
92160
92160A
92160A
92171
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130A 130BB0612 2
BOLT-FLANGED,6X14 130B 130BB0614 3
BOLT-FLANGED,6X20 130C 130BB0620 2
BOLT-FLANGED,10X14 130D 130BB1014 2
O RING,12MM 670 670B2012 4
BRACKET,FRONT COUPLER 11054 11054-0119 1
BRACKET,RELAY BOX 11054A 11054-0120 1
BRACKET,MUFFLER 11054B 11054-0122 1
BRACKET,REGULATOR 11054C 11054-0124 1
BRACKET,BOOST SENSOR 11054E 11054-0736 1
BRACKET,HELMET LOCK 11054F 11054-0738 1
CAP 11065 11065-0156 6
COVER,TOOL CASE 14091 14091-0520 1
COVER,FENDER,LH 14091A 14091-0521 1
COVER,PIVOT 14091B 14091-0526 1
COVER,FENDER,RH 14091C 14091-0638 1
COVER,BATTERY CASE&TOOL CASE 14091D 14091-0733 1
COVER,REGULATOR 14091E 14091-0836 1
COVER,RESERVOIR TANK 14091F 14091-1628 1
CASE-BATTERY 32097 32097-0021 1
STAY,MUFFLER,F.S.BLACK 35063 35063-0342-18R 1
WASHER,6.2X11X1.5 92022 92022-183 1
COLLAR,L=7.4 92027 92027-1848 2
BOLT,FLANGED,6X14 92150 92150-1689 3
BOLT,SOCKET,6X12 92151 92151-1940 1
COLLAR 92152 92152-0381 4
BOLT,FLANGED,8X20 92153 92153-1704 2
DAMPER 92160 92160-1278 2
DAMPER 92160A 92160-1613 2
CLAMP 92171 92171-0600 1
SCREW,6X26 92172 92172-0137 2
BOLT-FLANGED,6X10 130 130BB0610 2 CNUS
BOLT-FLANGED,6X10 130 130BB0610 4 CA
BRACKET,CANISTER 11054D 11054-0147 1 CA
BAND 92072 92072-1384 1 CA
