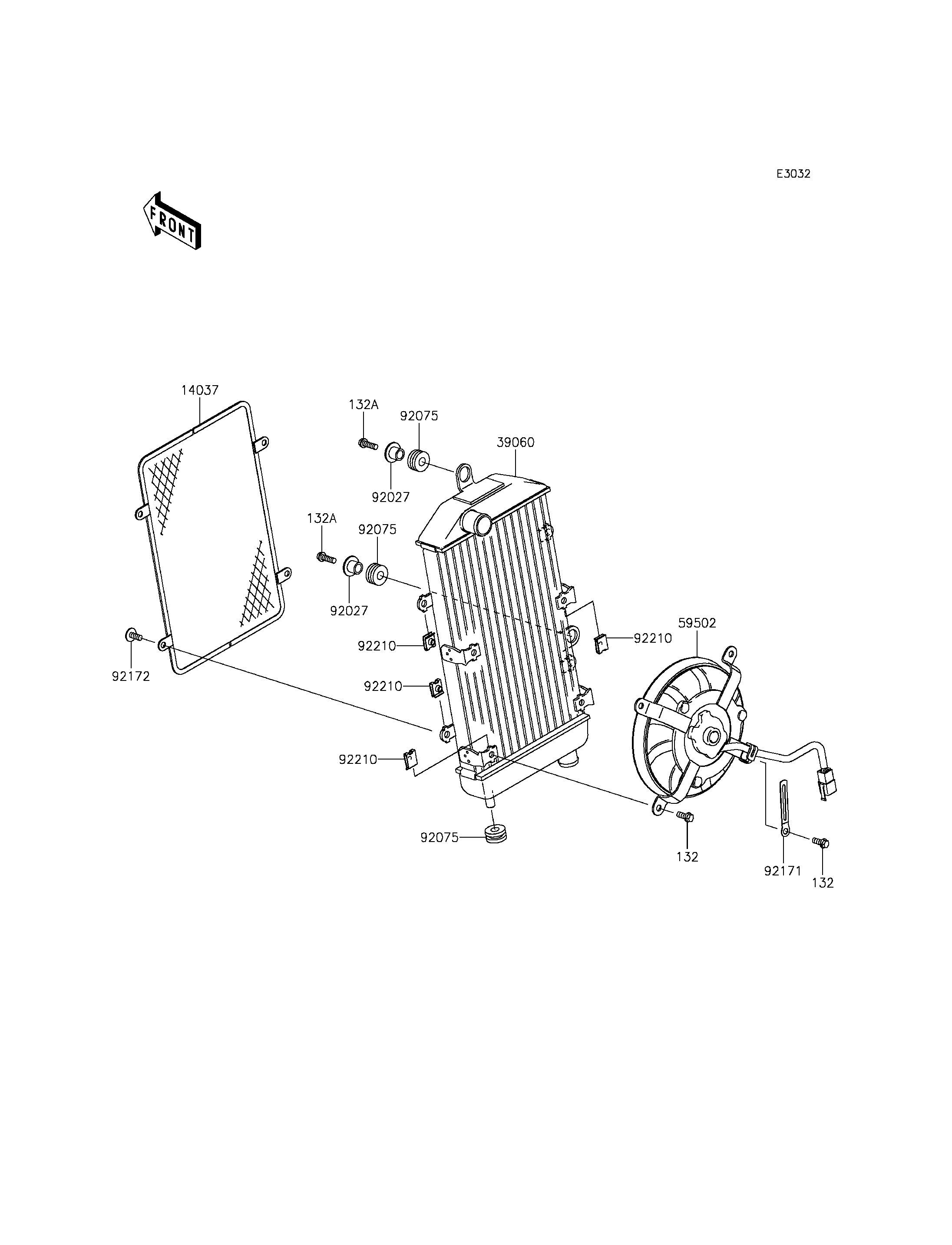

2011 VULCAN® 900 CLASSIC LT - Radiator
132
132
132A
132A
14037
39060
59502
92027
92027
92075
92075
92075
92171
92172
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BB0614 | 4 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132BB0620 | 2 | ||
| SCREEN | 14037 | 14037-0046 | 1 | ||
| RADIATOR | 39060 | 39060-0029 | 1 | ||
| FAN-ASSY | 59502 | 59502-0023 | 1 | ||
| COLLAR,L=13.1,BLACK | 92027 | 92027-1450 | 2 | ||
| DAMPER | 92075 | 92075-1690 | 3 | ||
| CLAMP | 92171 | 92171-0791 | 1 | ||
| SCREW,6X14 | 92172 | 92172-0004 | 4 | ||
| NUT | 92210 | 92210-1323 | 8 |
| BOLT-FLANGED-SMALL,6X14 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X20 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREEN | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR | |
| REF # | 39060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=13.1,BLACK | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
