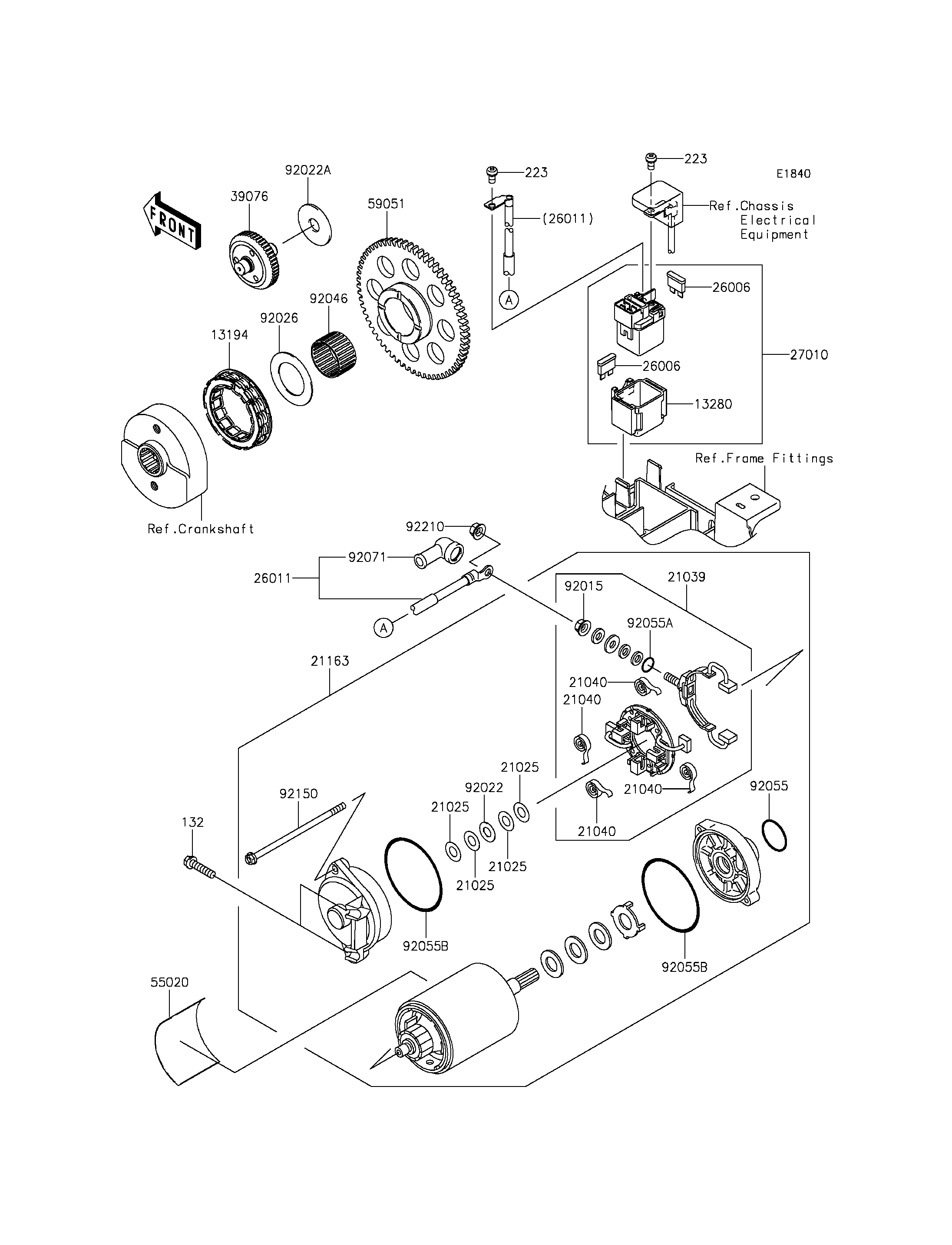

2011 VULCAN® 900 CLASSIC LT - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
132
223
223
13194
13280
21025
21025
21025
21025
21039
21040
21040
21040
21040
21163
26006
26006
26011
27010
39076
55020
59051
92015
92022
92022A
92026
92046
92055
92055A
92055B
92055B
92071
92150
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BA0625 2
SCREW-PAN-WS-CROS,5X10 223 223AA0510 2
CLUTCH-ONEWAY 13194 13194-0009 1
HOLDER 13280 13280-1263 1
WASHER,9.1X18X0.2 21025 21025-011 AR
BRUSH,CARBON 21039 21039-1060 1
SPRING-BRUSH 21040 21040-1055 4
STARTER-ELECTRIC 21163 21163-0066 1
FUSE,BLADE,30A,GREEN 26006 26006-1006 2
WIRE-LEAD,STARTER MOTOR 26011 26011-0126 1
SWITCH,MAGNETIC 27010 27010-0793 1
LIMITER 39076 39076-0008 1
GUARD,STARTER MOTER 55020 55020-1589 1
GEAR-SPUR,63T 59051 59051-0060 1
NUT,STARTER MOTOR 92015 92015-1476 1
WASHER,9.1X18X0.8 92022 92022-1132 1
WASHER,12.3X38X2.0 92022A 92022-1664 1
SPACER,31X49.5X1.2 92026 92026-1490 1
BEARING-NEEDLE,K30X35X20 92046 92046-1171 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 1
RING-O,STARTER MOTOR 92055B 92055-1381 2
GROMMET 92071 92071-0024 1
BOLT,STARTER MOTOR 92150 92150-1572 2
NUT,6MM 92210 92210-0188 1
