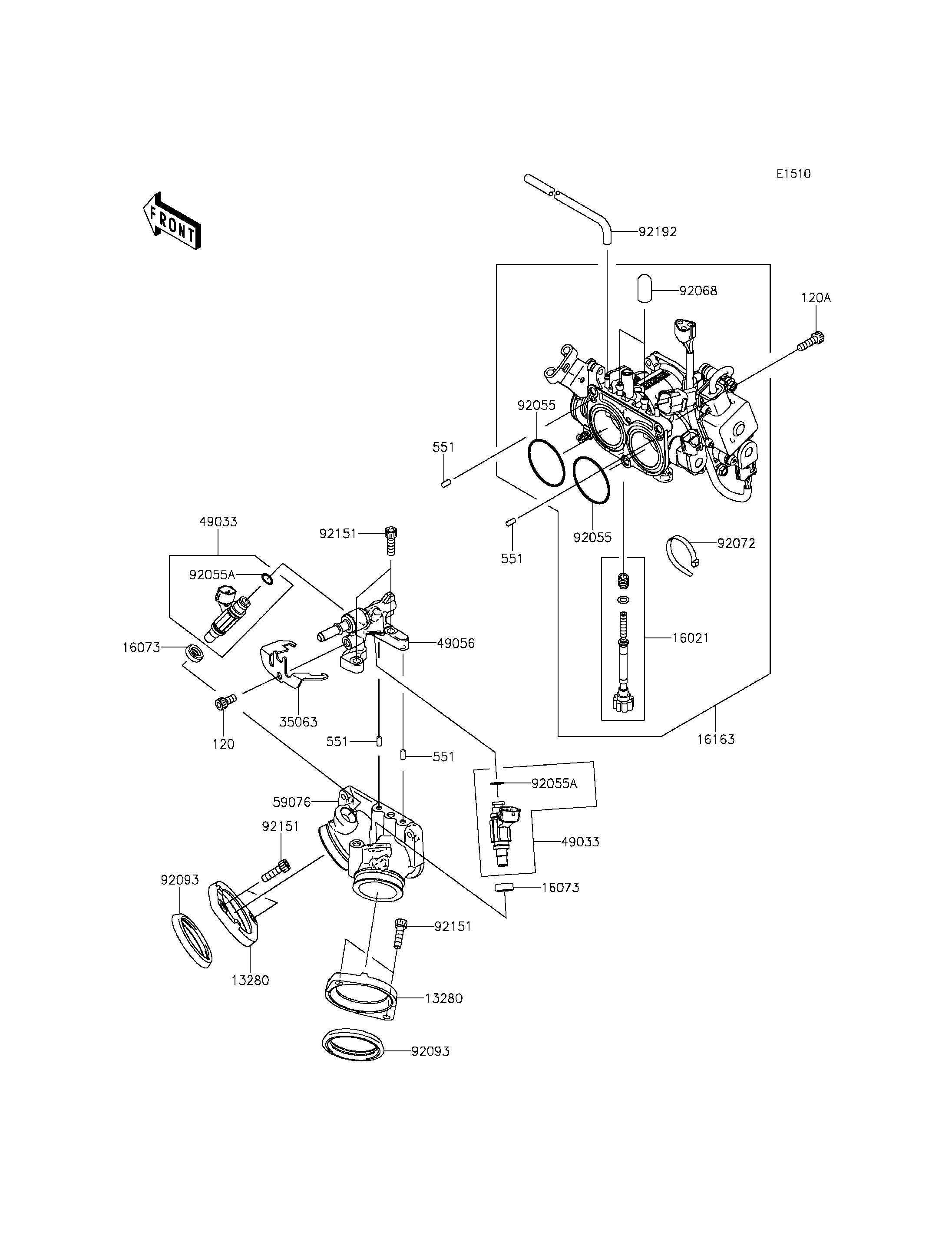

2011 VULCAN® 900 CLASSIC LT - Throttle

DOWNLOAD PDF
SELECT A NEW PART
120
120A
551
551
551
551
13280
13280
16021
16073
16073
16163
35063
49033
49033
49056
59076
92055
92055
92055A
92055A
92068
92072
92093
92093
92151
92151
92151
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120CA0612 1
BOLT-SOCKET,6X20 120A 120CA0620 3
PIN-DOWEL 551 551R0408 4
HOLDER 13280 13280-1154 2
SCREW-THROTTLE STOP 16021 16021-0016 1
INSULATOR 16073 16073-3707 2
THROTTLE-ASSY,TTK34 16163 16163-0114 1
STAY 35063 35063-0240 1
NOZZLE-INJECTION 49033 49033-0011 2
PIPE-INJECTION 49056 49056-0018 1
MANIFOLD-INTAKE 59076 59076-0003 1
RING-O 92055 92055-0118 2
RING-O,INJECTION NOZZLE 92055A 92055-1622 2
PLUG,12X25 92068 92068-006 2
BAND,SUB-HARNESS 92072 92072-0012 1
SEAL 92093 92093-0072 2
BOLT,SOCKET,6X20 92151 92151-3774 6
TUBE,SENSOR-THROBO 92192 92192-0308 1
