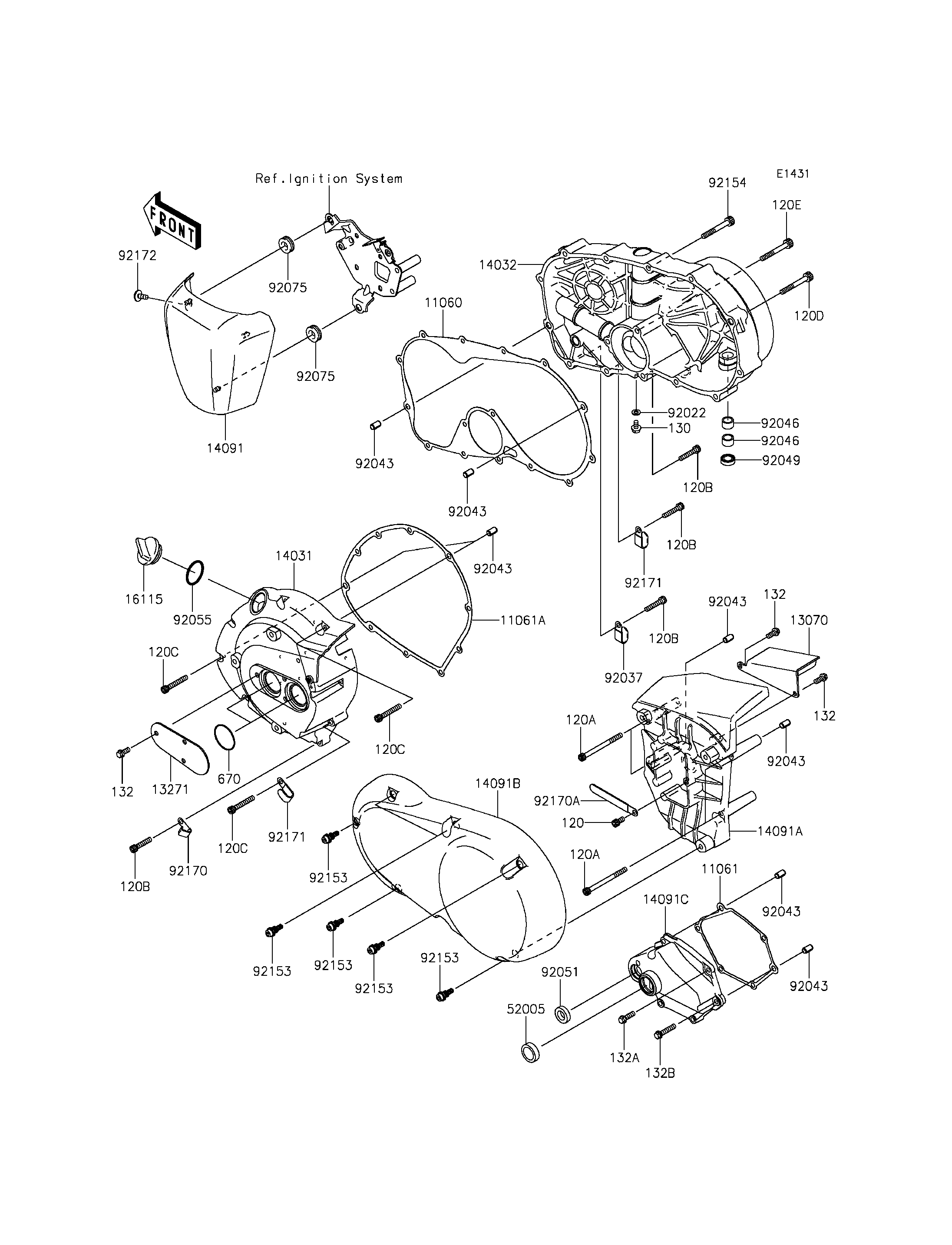

2011 VULCAN® 900 CLASSIC LT - Engine Cover(s)
120
120A
120A
120B
120B
120B
120B
120C
120C
120C
120D
120E
130
132
132
132
132A
132B
670
11060
11061
11061A
13070
13271
14031
14032
14091
14091A
14091B
14091C
16115
52005
92022
92037
92043
92043
92043
92043
92043
92043
92043
92046
92046
92049
92051
92055
92075
92075
92153
92153
92153
92153
92153
92154
92170
92170A
92171
92171
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X12 | 120 | 120CA0612 | 1 | ||
| BOLT-SOCKET,6X75 | 120A | 120CA0675 | 4 | ||
| BOLT-SOCKET,6X30 | 120B | 120CC0630 | 9 | ||
| BOLT-SOCKET,6X40 | 120C | 120CC0640 | 4 | ||
| BOLT-SOCKET,6X50 | 120D | 120CC0650 | 10 | ||
| BOLT-SOCKET,6X65 | 120E | 120CC0665 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 1 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 5 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132BA0620 | 1 | ||
| BOLT-FLANGED-SMALL,6X30 | 132B | 132BA0630 | 5 | ||
| O RING | 670 | 670B3034 | 2 | ||
| GASKET,CLUTCH COVER | 11060 | 11060-1926 | 1 | ||
| GASKET,MECHANISM COVER | 11061 | 11061-0208 | 1 | ||
| GASKET,GENERATOR COVER | 11061A | 11061-0209 | 1 | ||
| GUIDE,BELT | 13070 | 13070-0055 | 1 | ||
| PLATE | 13271 | 13271-0700 | 1 | ||
| COVER-GENERATOR | 14031 | 14031-0056 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-0076 | 1 | ||
| COVER | 14091 | 14091-0289 | 1 | ||
| COVER,PULLEY | 14091A | 14091-0510 | 1 | ||
| COVER,PLATING,LH | 14091B | 14091-0511 | 1 | ||
| COVER,CHANGE MECHANIZM | 14091C | 14091-0633 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| WASHER,6.1X12X1 | 92022 | 92022-077 | 1 | ||
| CLAMP,L=45 | 92037 | 92037-1539 | 1 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 8 | ||
| BEARING-NEEDLE,HK1210FM | 92046 | 92046-0034 | 2 | ||
| SEAL-OIL,TB12205.5 | 92049 | 92049-1271 | 1 | ||
| SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
| RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
| DAMPER | 92075 | 92075-1629 | 3 | ||
| BOLT,SOCKET,6X22 | 92153 | 92153-1331 | 6 | ||
| BOLT,SOCKET,6X50 | 92154 | 92154-0270 | 1 | ||
| CLAMP,HARNESS | 92170 | 92170-1900 | 1 | ||
| CLAMP | 92170A | 92170-1925 | 1 | ||
| CLAMP | 92171 | 92171-0739 | 2 | ||
| SCREW,5X12 | 92172 | 92172-0101 | 1 |
| BOLT-SOCKET,6X12 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X75 | |
| REF # | 120A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X30 | |
| REF # | 120B |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X40 | |
| REF # | 120C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X50 | |
| REF # | 120D |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X65 | |
| REF # | 120E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X14 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X20 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X30 | |
| REF # | 132B |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| O RING | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,CLUTCH COVER | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,MECHANISM COVER | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,GENERATOR COVER | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,BELT | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-GENERATOR | |
| REF # | 14031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-CLUTCH | |
| REF # | 14032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PULLEY | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PLATING,LH | |
| REF # | 14091B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CHANGE MECHANIZM | |
| REF # | 14091C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-OIL FILLER | |
| REF # | 16115 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,OIL LEVEL | |
| REF # | 52005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.1X12X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,L=45 | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,6.2X8X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,HK1210FM | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,TB12205.5 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,TB13225.5 | |
| REF # | 92051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,31.5X2.6 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X22 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X50 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HARNESS | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
