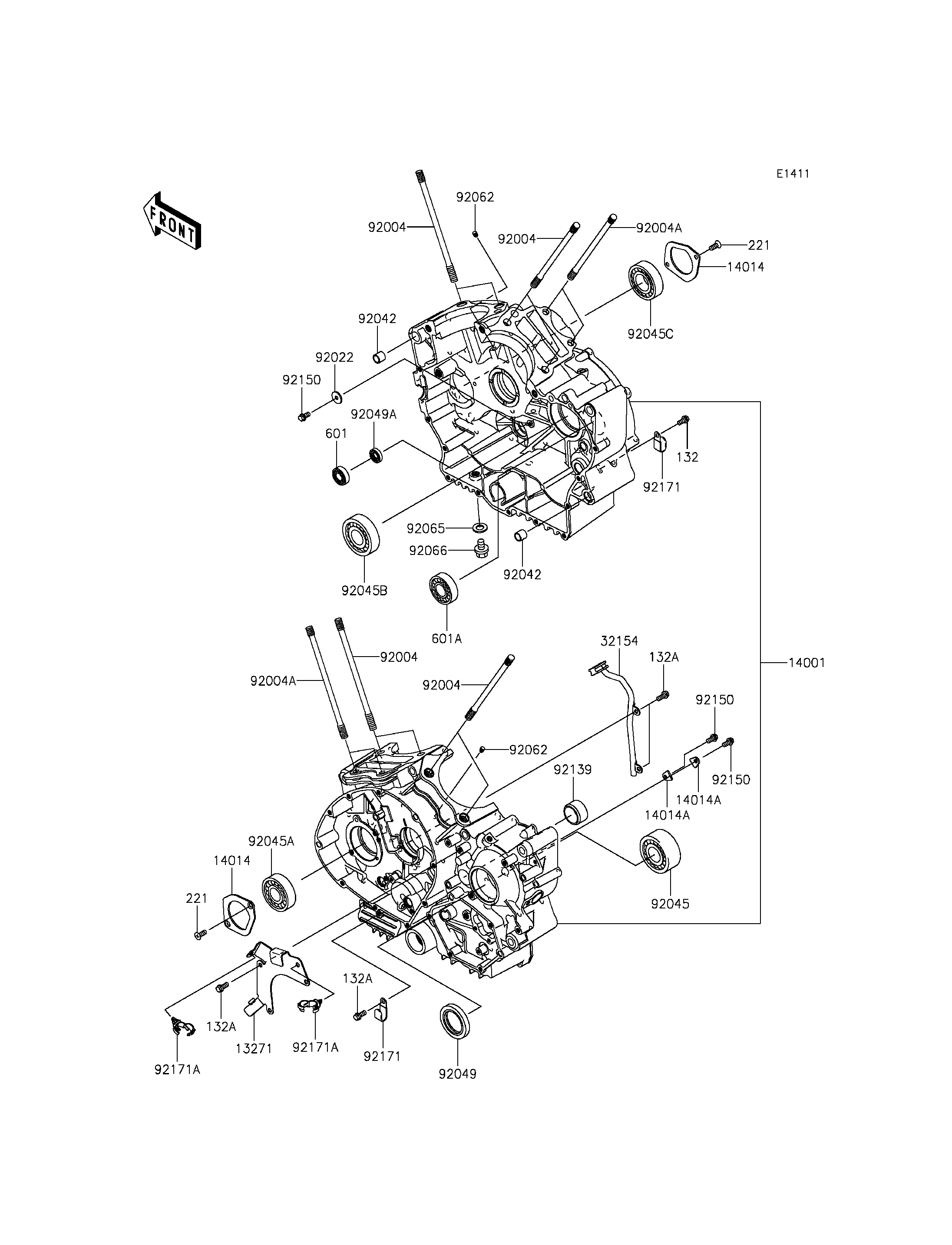

2011 VULCAN® 900 CLASSIC LT - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
132A
221
221
601
601A
13271
14001
14014
14014
14014A
14014A
32154
92004
92004
92004
92004
92004A
92004A
92022
92042
92042
92045
92045A
92045B
92045C
92049
92049A
92062
92062
92065
92066
92139
92150
92150
92150
92171
92171
92171A
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
BOLT-FLANGED-SMALL,6X14 132A 132BA0614 6
SCREW-CSK-CROS,6X16 221 221AA0616 4
BEARING-BALL 601 601A6001 1
BEARING-BALL 601A 601A6204Z 1
PLATE 13271 13271-0841 1
SET-CRANKCASE 14001 14001-0069 1
PLATE-POSITION 14014 14014-0024 2
PLATE-POSITION 14014A 14014-0026 2
PIPE,OIL 32154 32154-0752 1
STUD,10X160 92004 92004-0026 8
STUD,8X165.5 92004A 92004-0027 4
WASHER,6X19.5X2 92022 92022-1517 1
PIN,DOWEL,11X14X12.5 92042 92042-028 2
BEARING-BALL,5305-A-1 92045 92045-0059 1
BEARING-BALL,#63/22X 92045A 92045-1017 1
BEARING-BALL,TMB305 92045B 92045-1137 1
BEARING-BALL,62/28 92045C 92045-1207 1
SEAL-OIL,TC 38 55 8 92049 92049-0076 1
SEAL-OIL,SC 12X22X5 92049A 92049-1228 1
NOZZLE,6X8,BLACK 92062 92062-1079 2
GASKET,12X22X2 92065 92065-097 1
PLUG,12X15 92066 92066-0079 1
BUSHING 92139 92139-0139 1
BOLT,6X12 92150 92150-1868 3
CLAMP 92171 92171-0739 2
CLAMP,DIA=13 92171A 92171-1415 2
