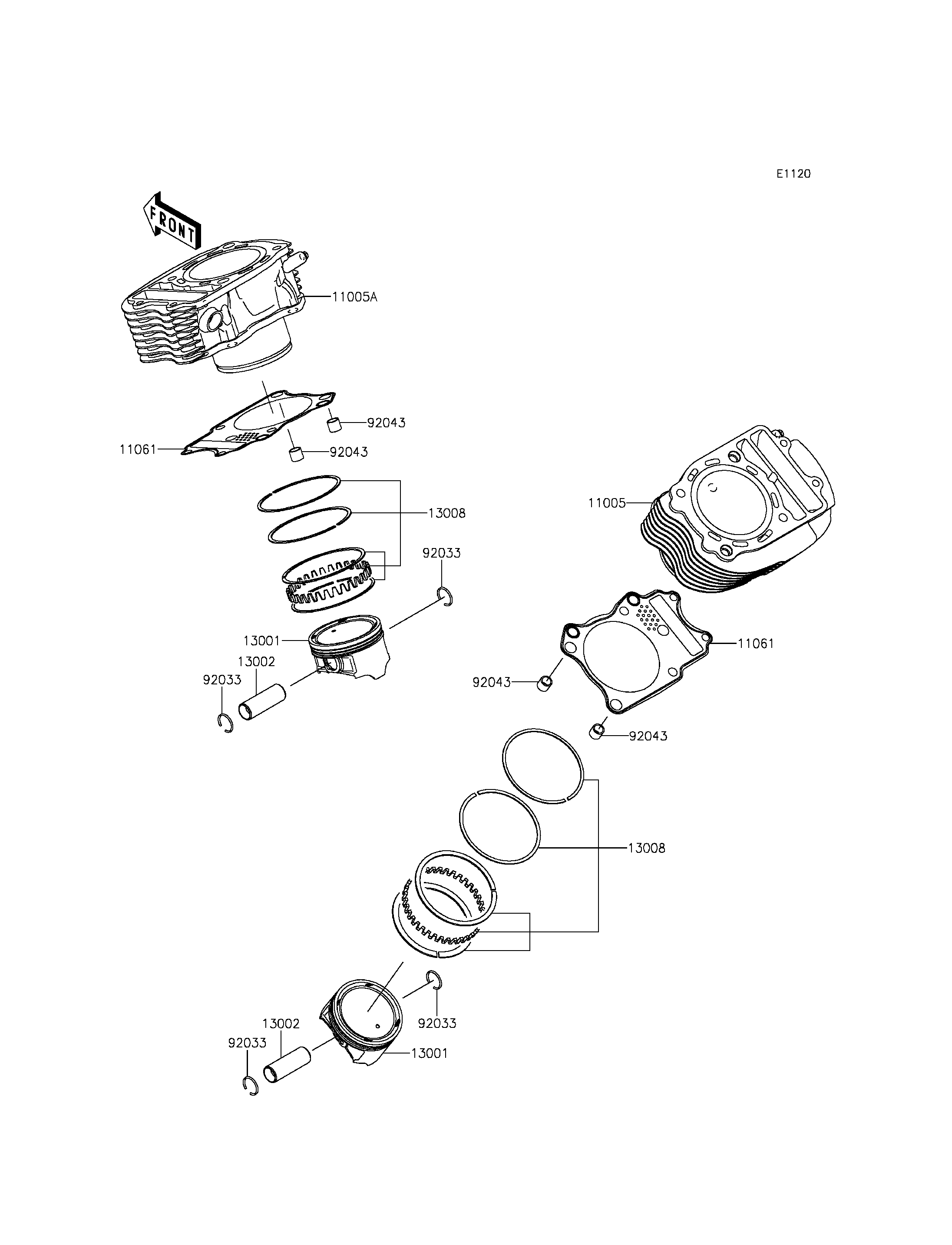

2011 VULCAN® 900 CLASSIC LT - Cylinder/Piston(s)
11005
11005A
11061
11061
13001
13001
13002
13002
13008
13008
92033
92033
92033
92033
92043
92043
92043
92043
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER-ENGINE,RR | 11005 | 11005-0062 | 1 | ||
| CYLINDER-ENGINE,FR | 11005A | 11005-0085 | 1 | ||
| GASKET,CYLINDER BASE | 11061 | 11061-0284 | 2 | ||
| PISTON-ENGINE | 13001 | 13001-0067 | 2 | ||
| PIN-PISTON | 13002 | 13002-0011 | 2 | ||
| RING-SET-PISTON | 13008 | 13008-0021 | 2 | ||
| RING-SNAP | 92033 | 92033-1188 | 4 | ||
| PIN,11X14X12.3 | 92043 | 92043-1266 | 4 |
| CYLINDER-ENGINE,RR | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ENGINE,FR | |
| REF # | 11005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN,11X14X12.3 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
