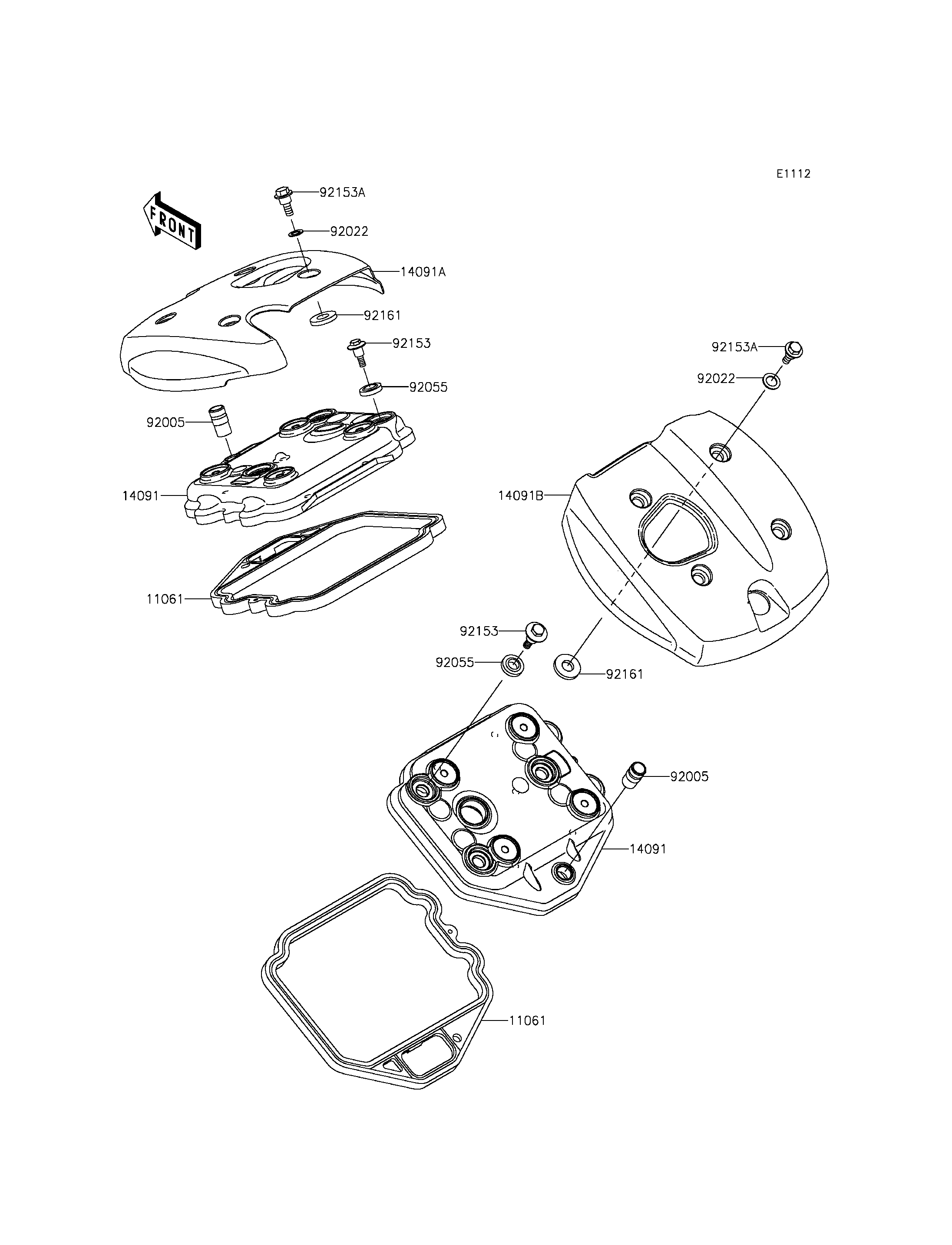

2011 VULCAN® 900 CLASSIC LT - Cylinder Head Cover

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
14091
14091
14091A
14091B
92005
92005
92022
92022
92055
92055
92153
92153
92153A
92153A
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,HEAD COVER 11061 11061-0261 2
COVER,HEAD 14091 14091-0506 2
COVER,TOP,FR 14091A 14091-0507 1
COVER,TOP,RR 14091B 14091-0508 1
FITTING 92005 92005-0052 2
WASHER,10.2X16X1 92022 92022-1829 8
RING-O,HEAD COVER BOLT 92055 92055-1352 6
BOLT,HEAD COVER 92153 92153-0793 6
BOLT,FLANGED,6X19 92153A 92153-1400 8
DAMPER 92161 92161-0366 8
