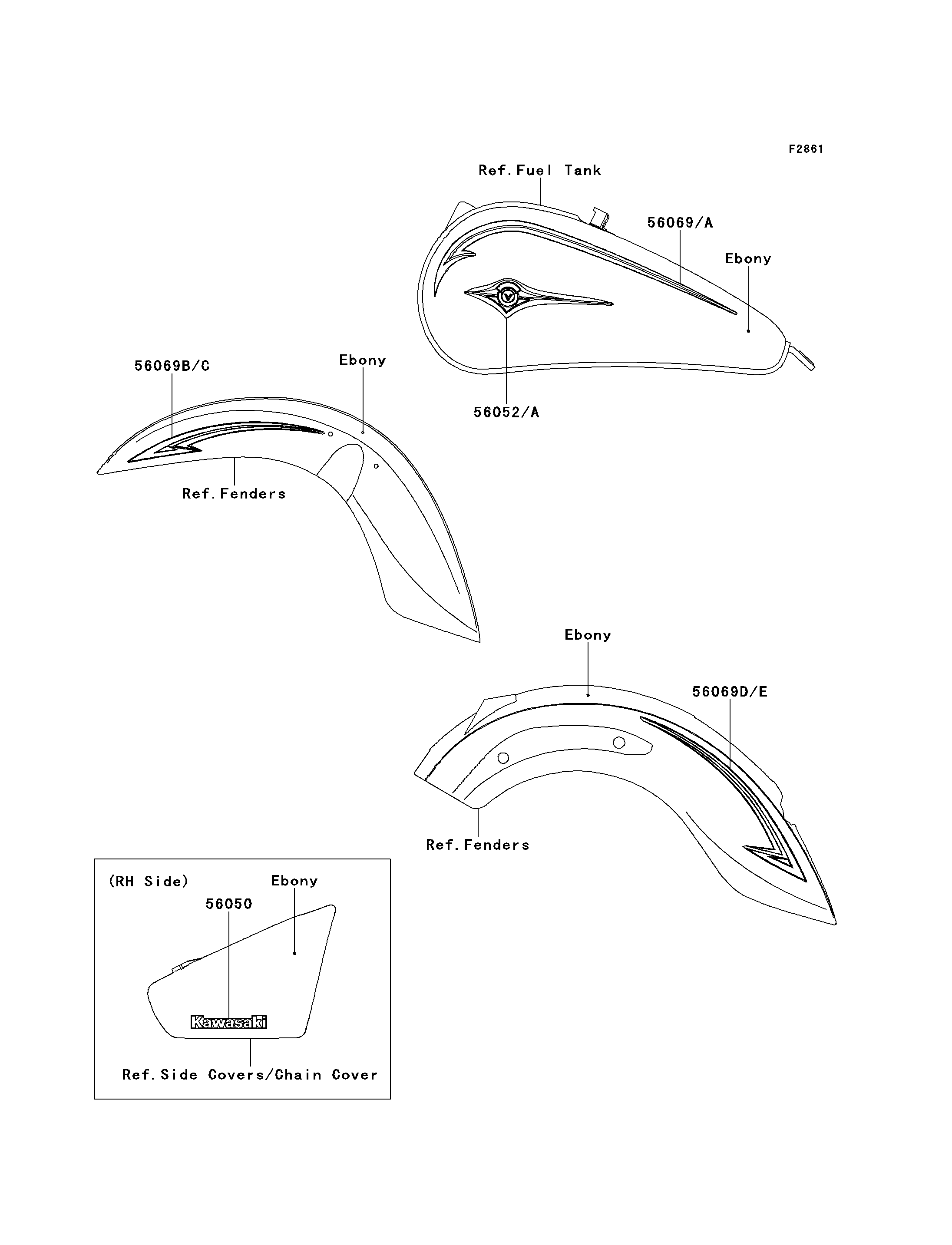

2011 VULCAN® 900 CLASSIC - Decals(Ebony)(BBFA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SIDE COVER,RH,KAWASAKI | 56050 | 56050-1901 | 1 | ||
| MARK,FUEL TANK,LH | 56052 | 56052-0810 | 1 | ||
| MARK,FUEL TANK,RH | 56052A | 56052-0811 | 1 | ||
| PATTERN,FUEL TANK,LH | 56069 | 56069-0977 | 1 | ||
| PATTERN,FUEL TANK,RH | 56069A | 56069-0978 | 1 | ||
| PATTERN,FR FENDER,LH | 56069B | 56069-0979 | 1 | ||
| PATTERN,FR FENDER,RH | 56069C | 56069-0980 | 1 | ||
| PATTERN,RR FENDER,LH | 56069D | 56069-0981 | 1 | ||
| PATTERN,RR FENDER,RH | 56069E | 56069-0982 | 1 |
| MARK,SIDE COVER,RH,KAWASAKI | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,LH | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,RH | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56069D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56069E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
