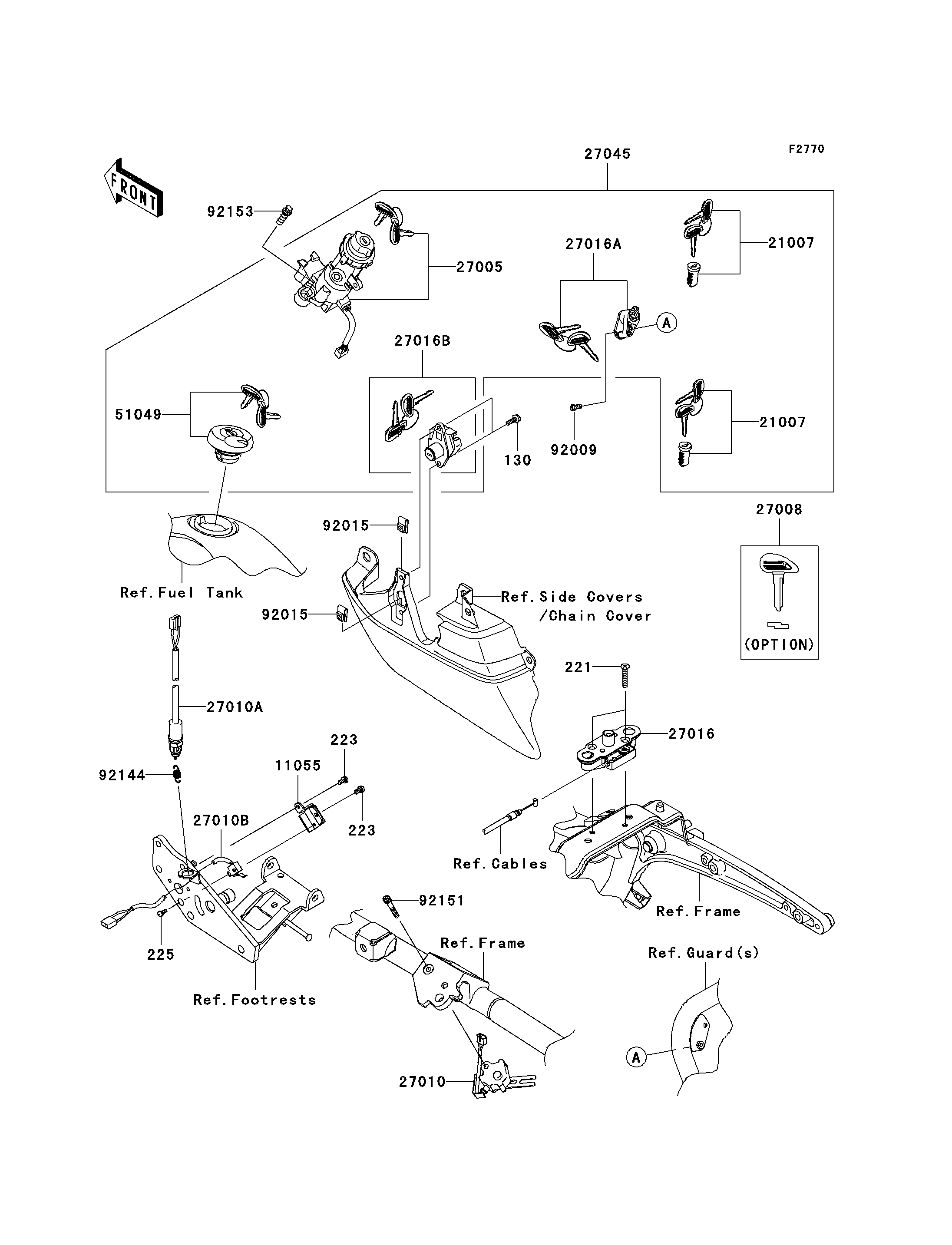

2012 VULCAN® 1700 NOMAD™ - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
130
221
223
223
225
11055
21007
21007
27005
27008
27010
27010A
27010B
27016
27016A
27016B
27045
51049
92009
92015
92015
92144
92151
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X16 130 130BA0516 2
SCREW-CSK-CROSS,6X30 221 221AA0630 2
SCREW-PAN-WS-CROS,5X10 223 223AB0510 2
SCREW-PAN-WSP-CROS,4X12 225 225AB0412 1
BRACKET,CRUISE CONTROL SWITCH 11055 11055-0609 1
ROTOR,PANNIER LOCK 21007 21007-5065 2
SWITCH-ASSY-IGNITION 27005 27005-0052 1
KEY-LOCK,BLANK 27008 27008-1211 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0088 1
SWITCH,REAR BRAKE 27010A 27010-0089 1
SWITCH,CRUISE CONTROL 27010B 27010-0090 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1098 1
LOCK-ASSY,HELMET 27016A 27016-5311 2
LOCK-ASSY,SEAT 27016B 27016-5359 1
SWITCH-ASSY 27045 27045-5404 1
CAP-TANK,FUEL 51049 51049-5004 1
SCREW,5X12 92009 92009-1296 2
NUT,5MM 92015 92015-1710 2
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
BOLT,SOCKET,6X35 92151 92151-1390 1
BOLT,TORX,8X22 92153 92153-1273 2
