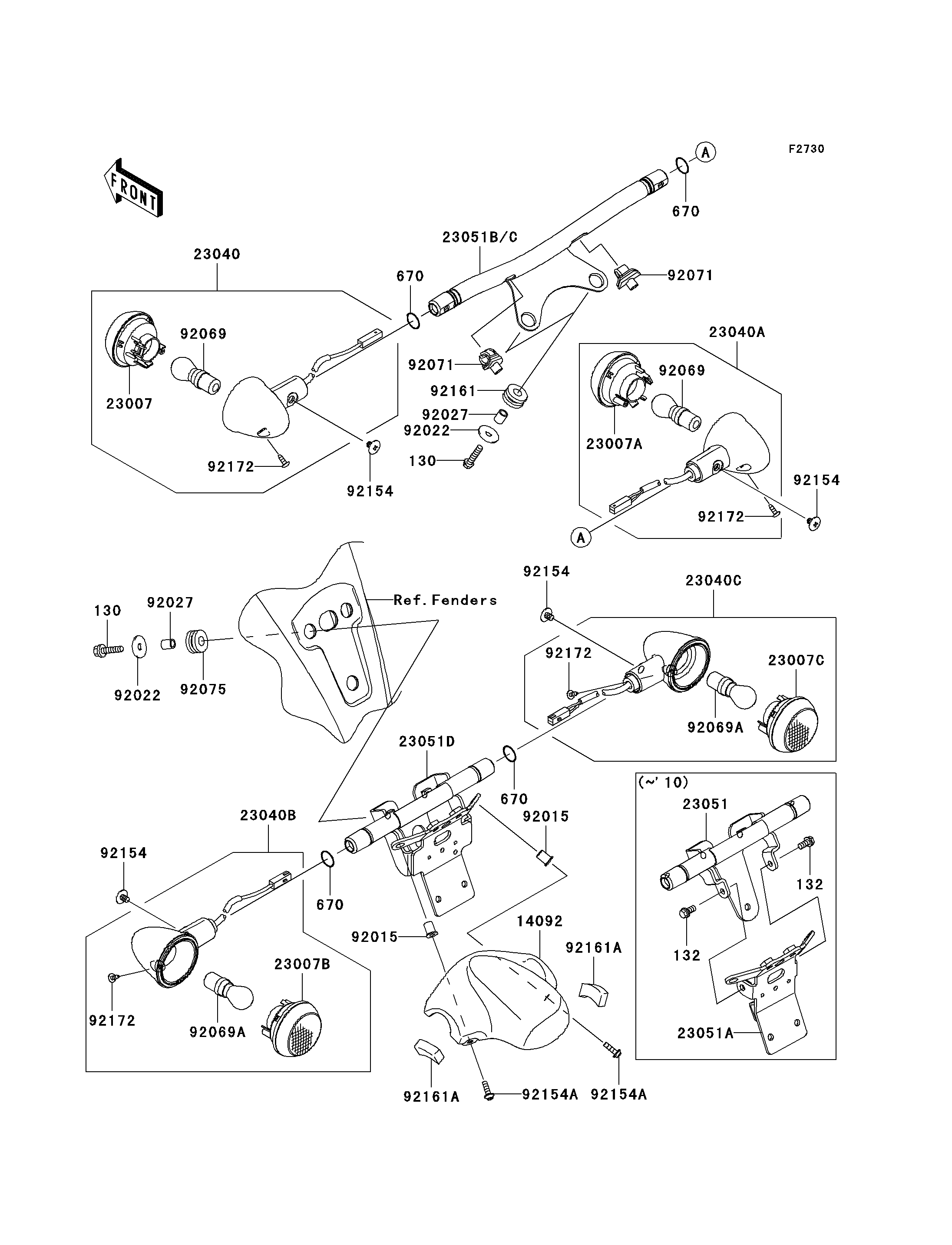

2012 VULCAN® 1700 NOMAD™ - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
130
130
670
670
670
670
14092
23007
23007A
23007B
23007C
23040
23040A
23040B
23040C
23051C
23051D
92015
92015
92022
92022
92027
92027
92069
92069
92069A
92069A
92071
92071
92075
92154
92154
92154
92154
92154A
92154A
92161
92161A
92161A
92172
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 5
O RING,16MM 670 670B2016 4
COVER,LICENSE LAMP 14092 14092-0090 1
LENS-COMP,SIGNAL LAMP,FR,LH 23007 23007-0120 1
LENS-COMP,SIGNAL LAMP,FR,RH 23007A 23007-0125 1
LENS-COMP,SIGNAL LAMP,RR,LH 23007B 23007-0126 1
LENS-COMP,SIGNAL LAMP,RR,RH 23007C 23007-0127 1
LAMP-SIGNAL,FR,LH 23040 23040-0083 1
LAMP-SIGNAL,FR,RH 23040A 23040-0084 1
LAMP-SIGNAL,RR,LH 23040B 23040-0089 1
LAMP-SIGNAL,RR,RH 23040C 23040-0090 1
BRACKET-SIGNAL LAMP,FR 23051C 23051-0037 1
BRACKET-SIGNAL LAMP,RR 23051D 23051-0038 1
NUT,WELL,5MM 92015 92015-1757 2
WASHER,7X24X1.6 92022 92022-1160 5
COLLAR,6.8X10X12 92027 92027-162 5
BULB,12V 21/5W 92069 92069-063 2
BULB,12V 21W 92069A 2 (LOCAL PROCUREMENT ITEM)
GROMMET,SIGNAL LAMP 92071 92071-0043 2
DAMPER 92075 92075-1690 3
BOLT,6X8 92154 92154-0097 4
BOLT,SOCKET,5X16 92154A 92154-0209 2
DAMPER 92161 92161-0163 2
DAMPER 92161A 92161-0841 2
SCREW,TAPPING,4X12 92172 92172-0389 4
