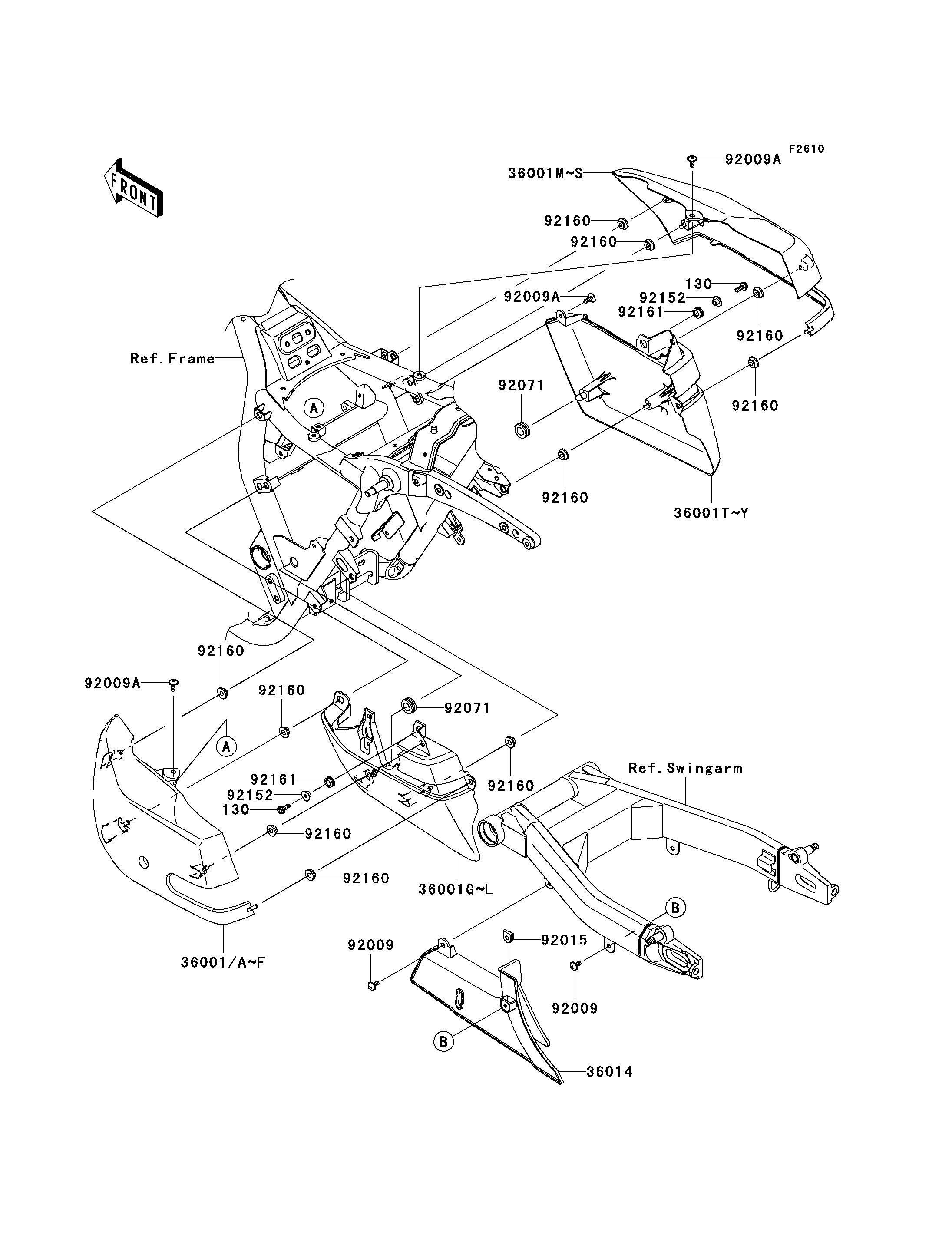

2012 VULCAN® 1700 NOMAD™ - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
130
130
36001C
36001J
36001P
36001W
36014
92009
92009
92009A
92009A
92009A
92015
92071
92071
92152
92152
92160
92160
92160
92160
92160
92160
92160
92160
92160
92160
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BA0616 2
COVER-SIDE,LH,UPP,M.I.RED 36001C 36001-0139-19J 1
COVER-SIDE,LH,LWR,M.I.RED 36001J 36001-0140-19J 1
COVER-SIDE,RH,UPP,M.I.RED 36001P 36001-0141-19J 1
COVER-SIDE,RH,LWR,M.I.RED 36001W 36001-0142-19J 1
CASE-CHAIN 36014 36014-0042 1
SCREW,6X14 92009 92009-1555 2
SCREW,6X16 92009A 92009-1621 3
NUT,CLIP,6MM 92015 92015-1904 1
GROMMET 92071 92071-1131 2
COLLAR 92152 92152-0295 2
DAMPER 92160 92160-1613 10
DAMPER 92161 92161-0266 2
COVER-SIDE,LH,UPP,P.BOULOGNE 36001A 36001-0139-VG 1 CAUS
COVER-SIDE,LH,LWR,P.BOULOGNE 36001H 36001-0140-VG 1 CAUS
COVER-SIDE,RH,UPP,P.BOULOGNE 36001N 36001-0141-VG 1 CAUS
COVER-SIDE,RH,LWR,P.BOULOGNE 36001U 36001-0142-VG 1 CAUS
