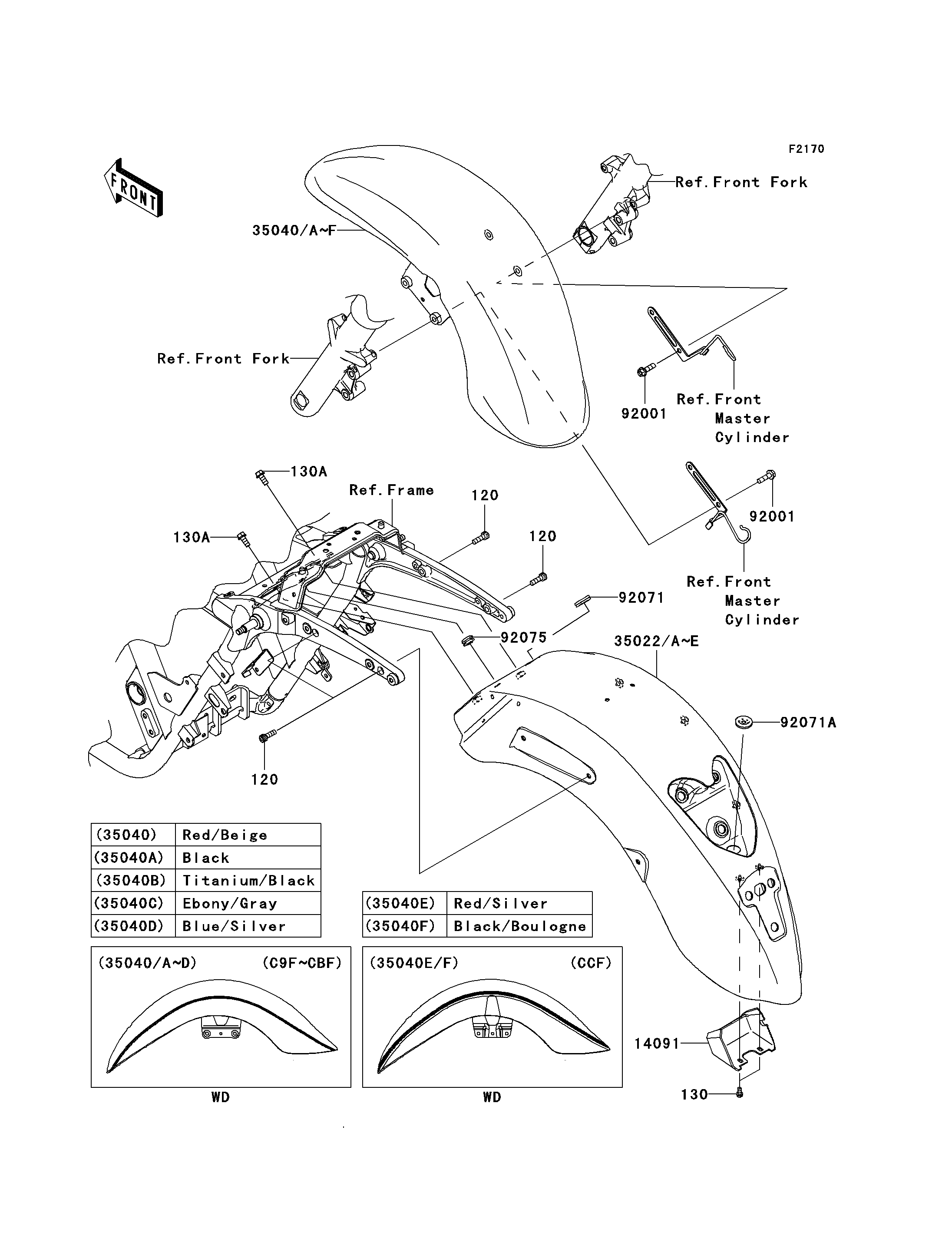

2012 VULCAN® 1700 NOMAD™ - Fenders

DOWNLOAD PDF
SELECT A NEW PART
120
120
120
120
120
120
14091
14091
35022C
35022C
35040E
35040E
92001
92001
92001
92001
92071
92071
92071A
92071A
92075
92075
130
130
130A
130A
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X25 120 120CA0825 4
COVER,HARNESS CONNECTOR 14091 14091-1630 1
FENDER-COMP-REAR,M.I.RED 35022C 35022-0066-19J 1
FENDER-COMP-FRONT,RED/SILVER 35040E 35040-5060-33Y 1
BOLT,FLANGED,8X28 92001 92001-1095 4
GROMMET 92071 92071-1228 1
GROMMET 92071A 92071-1265 1
DAMPER 92075 92075-1067 1
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,8X16 130A 130BA0816 2
FENDER-COMP-REAR,P.BOULOGNE 35022A 35022-0066-VG 1 CAUS
FENDER-COMP-FR,BLK/BOULOGNE 35040F 35040-5061-33Z 1 CAUS
